Power Window Main Switch Inspection: Notes

  1. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION  .)
  2. When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.
  3. Inspect for continuity between the power window main switch terminals using an ohmmeter.
    • If not as specified, replace the power window main switch.

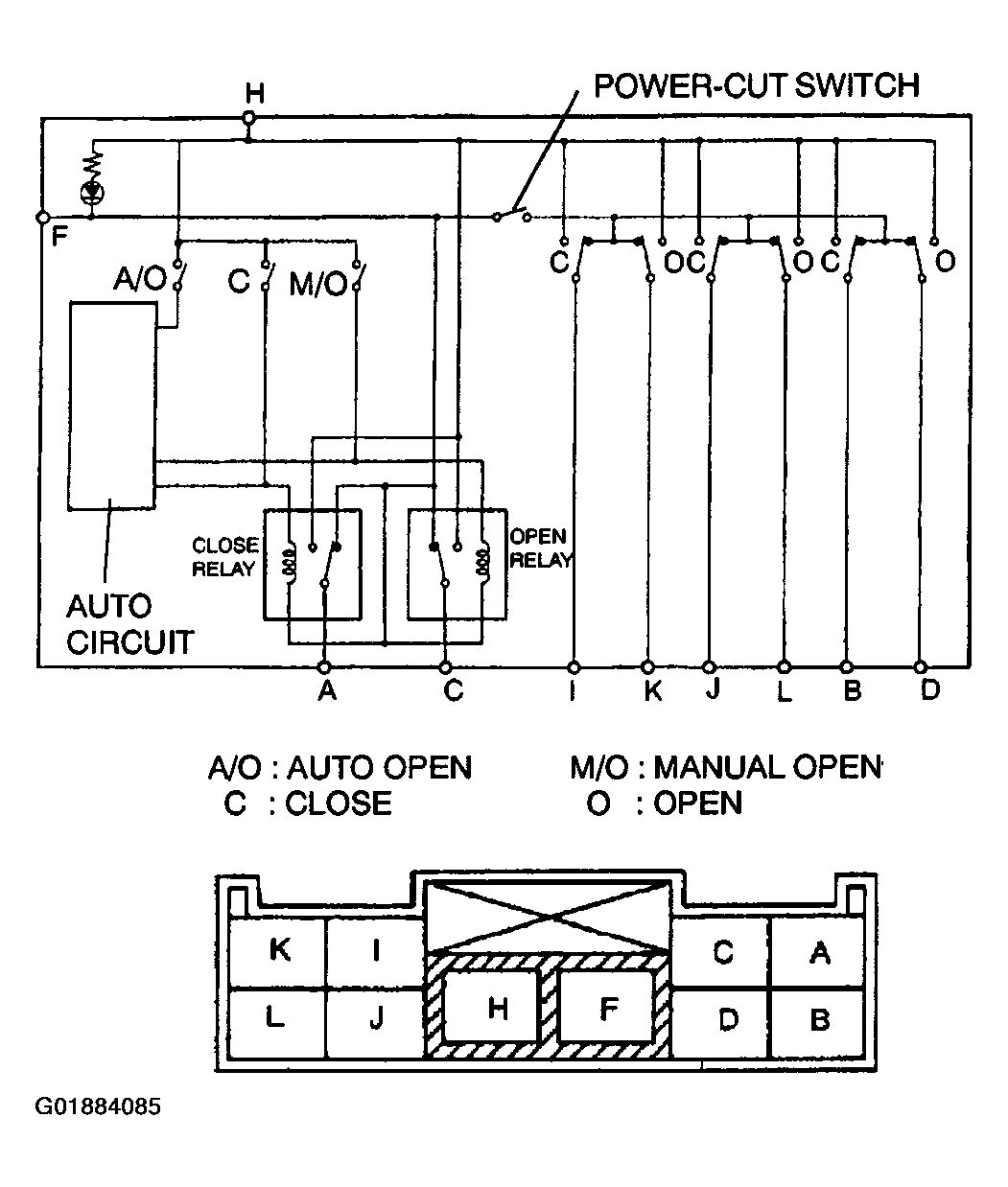

    Fig 1: Identifying Power Window Main Switch Circuit & Connector Terminals
    G01884085Courtesy of MAZDA MOTORS CORP.
