Power Window SUBSWITCH Removal/Installation: Rear

  1. Disconnect the negative battery cable.
  2. Remove the hook by inserting a tape-wrapped flathead screwdriver between the switch and the rear door trim.

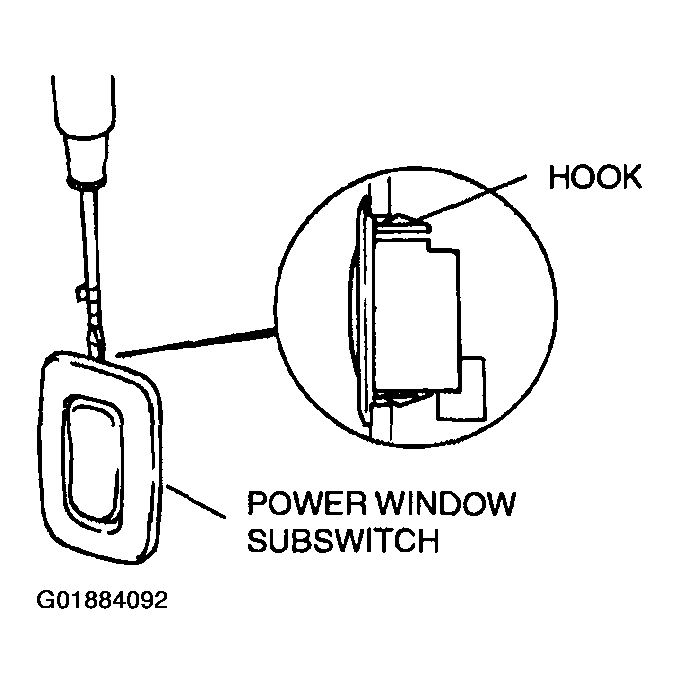

    Fig 1: Removing Power Window Subswitch
    G01884092Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector, and remove the power window subswitch.
  4. Install in the reverse order of removal.
