Quarter Window Glass Removal
- Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Remove the D-pillar trim. (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

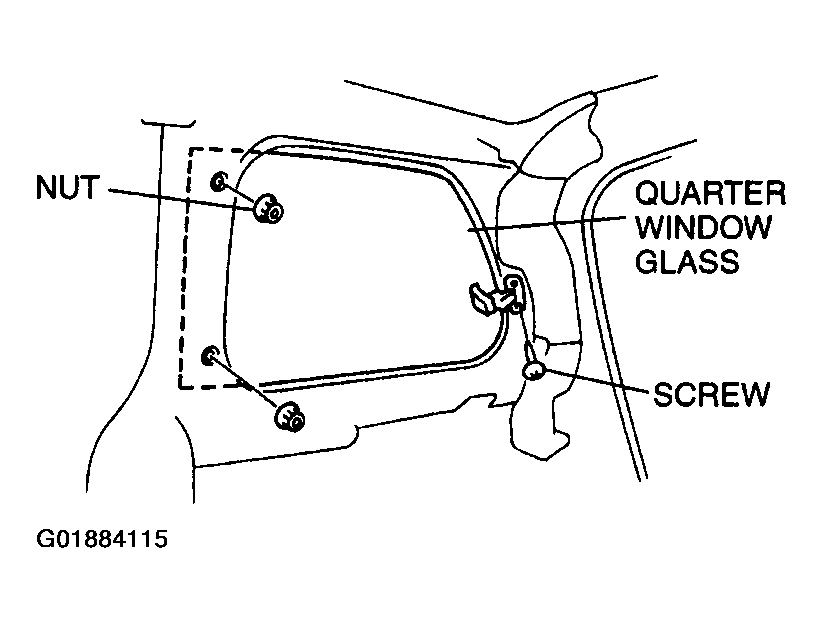

- Remove the screws and nuts, and remove the quarter window glass.
- Remove the screw, and remove the lock from the glass.NOTE:
- The quarter window molding is a replacement part.
- Remove the quarter window molding from the quarter window glass.
