Power Window Motor Assembly Note

NOTE:
  • The cable must be held to install the drum; install with another person.
  1. Press the cable as shown in Fig 1 to remove any slack (1).
  2. Install the drum to the power window motor.

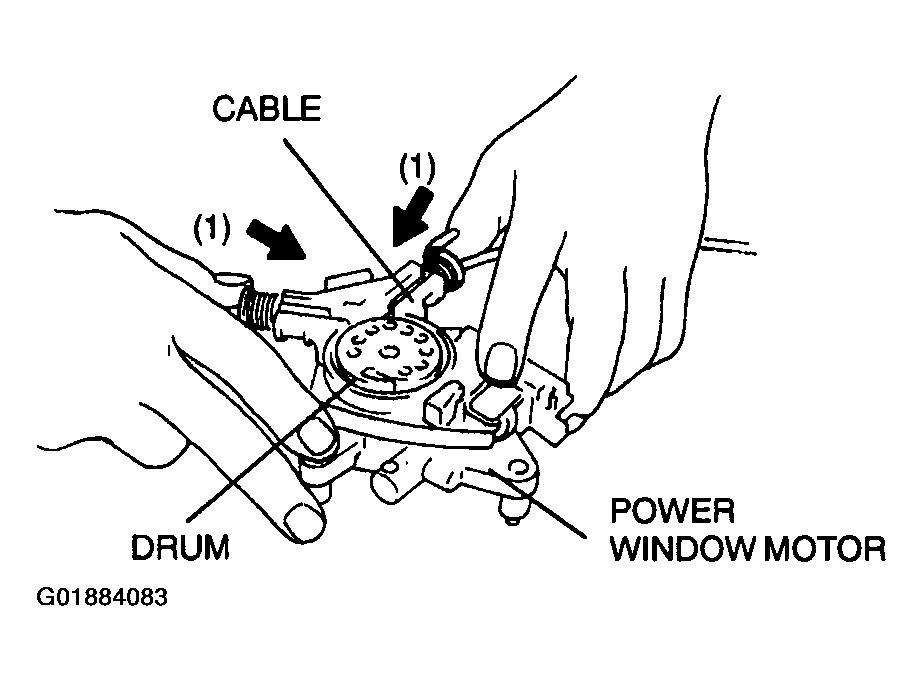

    Fig 1: Installing Cable & Drum
    G01884083Courtesy of MAZDA MOTORS CORP.
