Not Reusing Rear Window Glass

NOTE:
  • For the areas of the sealant that are difficult to cut, use a SST  (piano wire) and follow the procedure under "Reusing rear window glass".
  1. Use a tool like that shown, and insert the blade into the sealant.

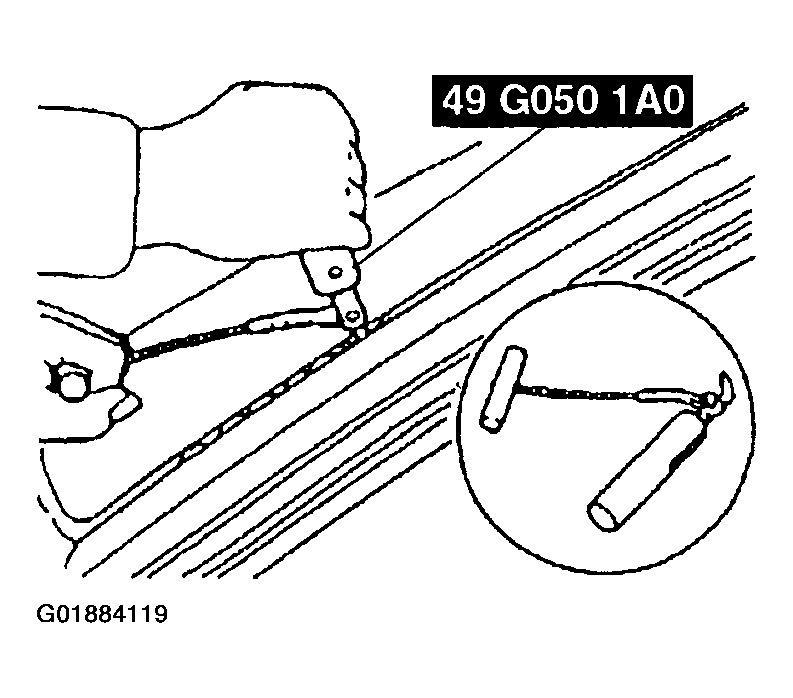

    Fig 1: Cutting Glass Sealant
    G01884119Courtesy of MAZDA MOTORS CORP.
  2. Pull through the sealant around the edge of the glass.
  3. Remove the glass.
