Windshield Installation

WARNING:

Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

CAUTION:

To prevent the sealant from cracking or the glass from being pushed out by air pressure if a door is closed, open all of the windows and leave them open until the sealant has hardened.

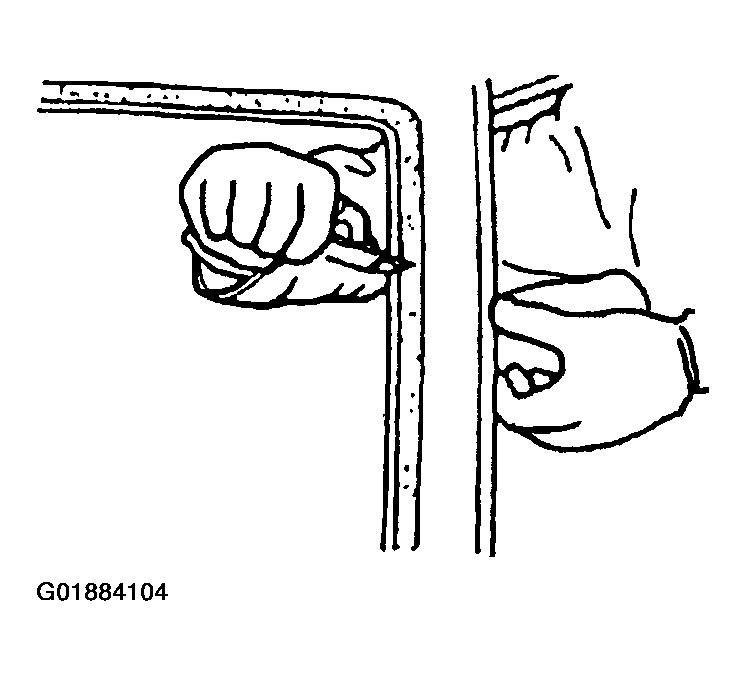

Cut away the old sealant using a razor so that 1-2 mm {0.04-0.07 in} thickness of sealant remains around the circumference of the frame.
- If all the sealant has come off in any one place, apply some primer after degreasing, and allow it 30 minutes to dry. Then put on new sealant to create 2 mm {0.08 in} layer.
Clean and degrease an approximately 50.0 mm {1.97 in} wide strip around the circumference of the glass and the bonding area on the body.

Fig 1: Cutting Away Old Sealant Using Razor
Courtesy of MAZDA MOTORS CORP.

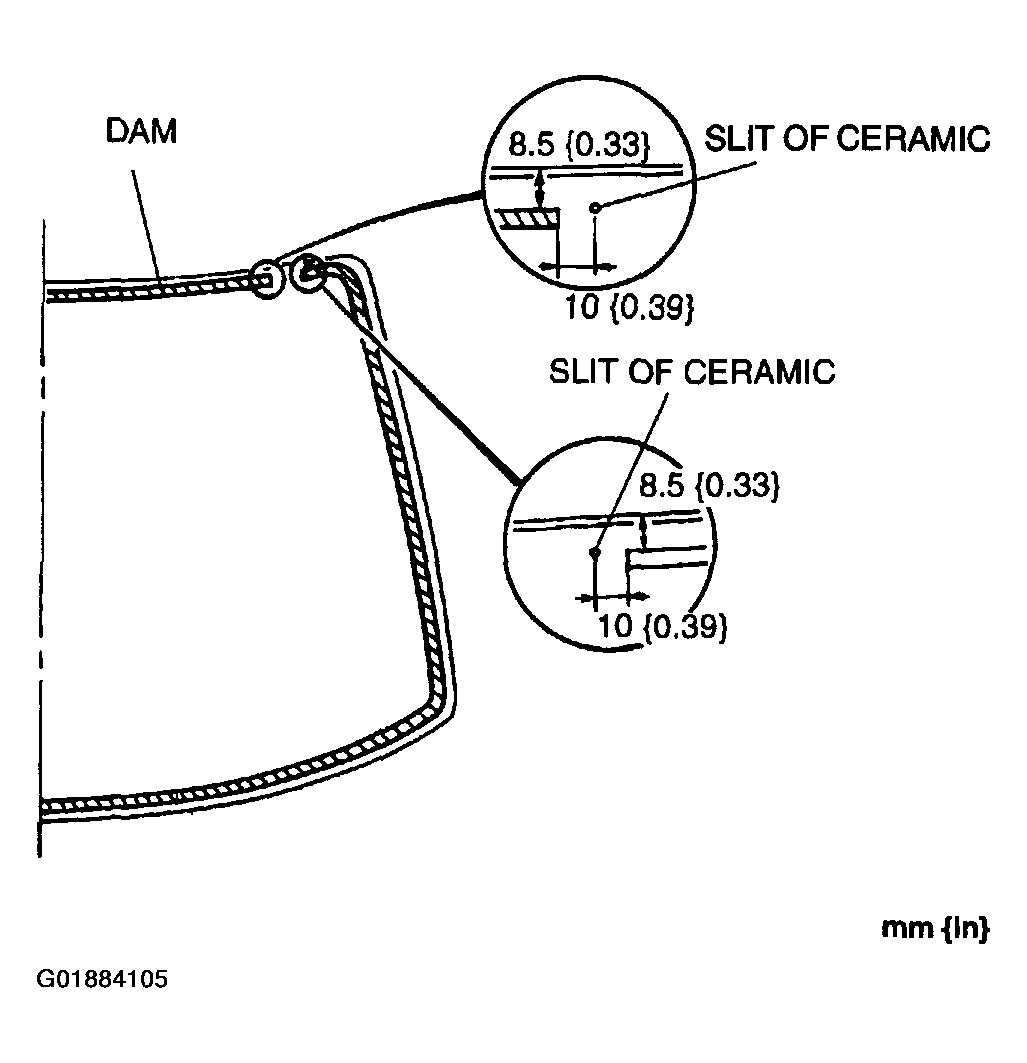

Securely bond a dam along the circumference of the glass 8.5 mm {0.33 in} from the edge.

Fig 2: Bonding Dam Along Circumference Of Glass
Courtesy of MAZDA MOTORS CORP.

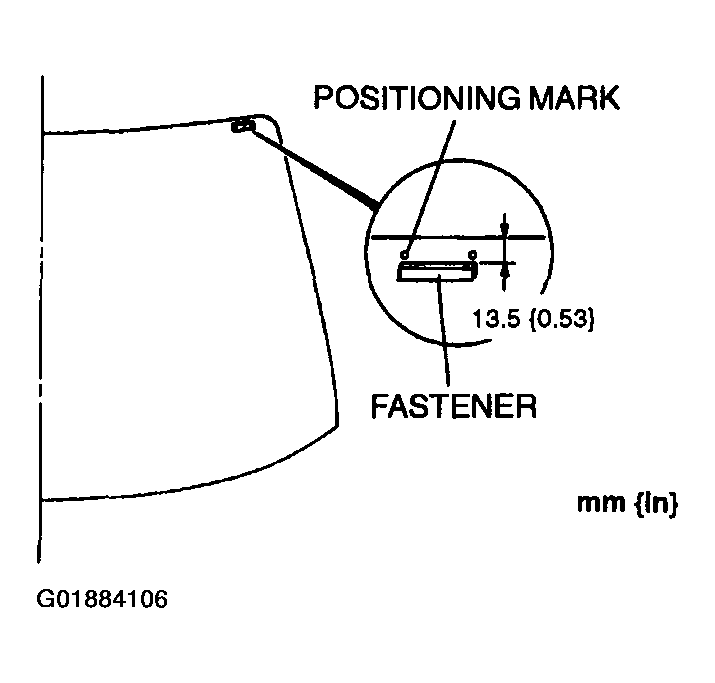

Install the fasteners on the glass marks as shown.

Fig 3: Installing Fasteners On Glass Marks
Courtesy of MAZDA MOTORS CORP.
Install spacers into the hole.

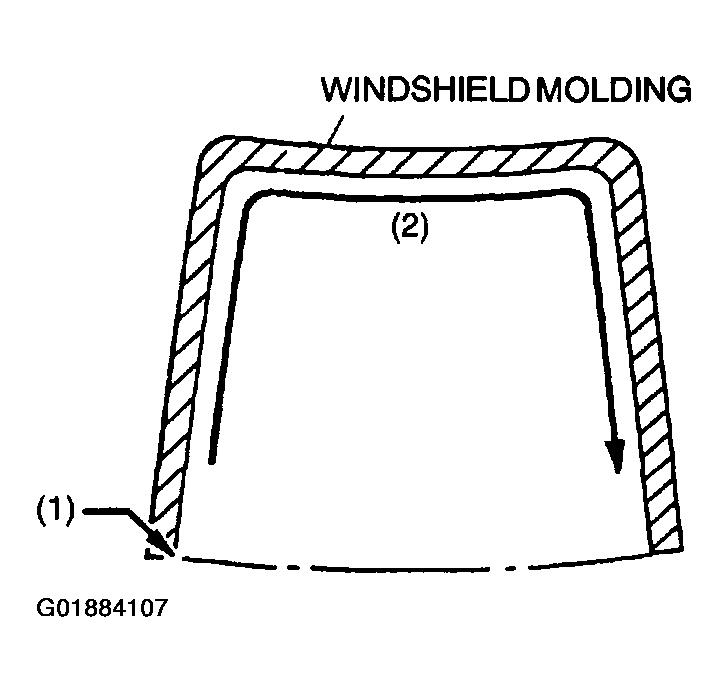

Align the front windshield molding with the edge of the glass. See (1) in Fig 4 .
Install the front windshield molding in the direction shown by the arrow. See (2) in Fig 4 .

Fig 4: Installing Front Windshield Molding
Courtesy of MAZDA MOTORS CORP.
Temporarily install the glass onto the body and adjust the glass-to-body clearance.

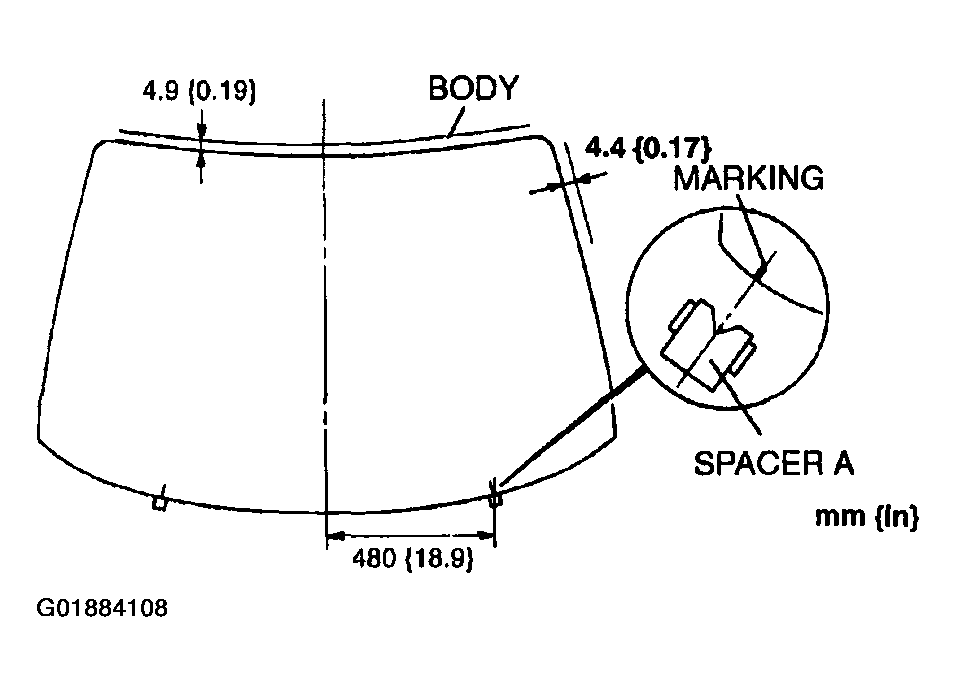

Make a mark on the glass directly above the V-notch of spacers.

Fig 5: Marking V-Notch Location On Glass
Courtesy of MAZDA MOTORS CORP.
Remove the windshield.
Paste the fasteners on the body as shown.
CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface or the primer may not properly bond to the surface of the glass and body, which may cause leaks to occur.

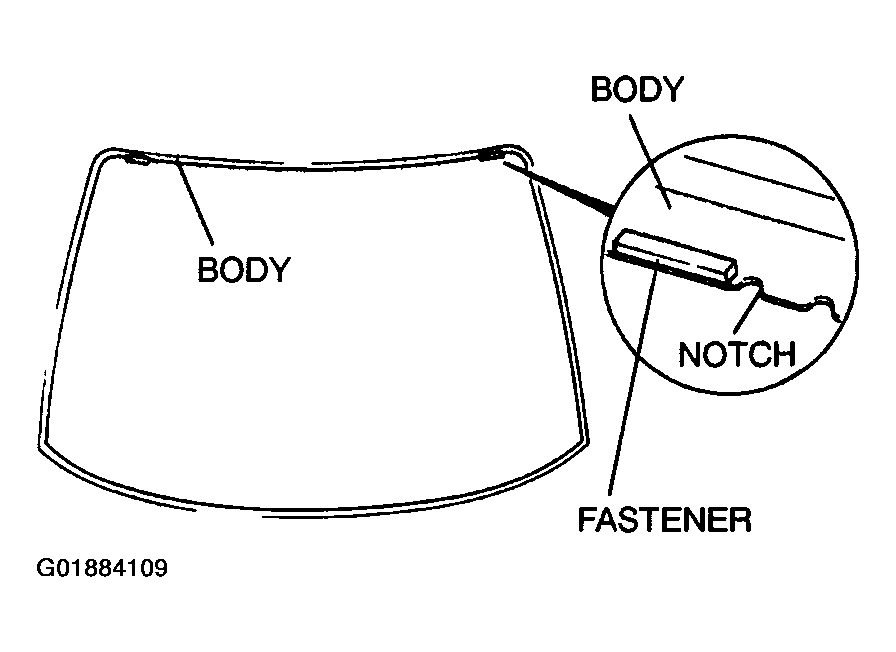

Fig 6: Pasting Fasteners On Body
Courtesy of MAZDA MOTORS CORP.

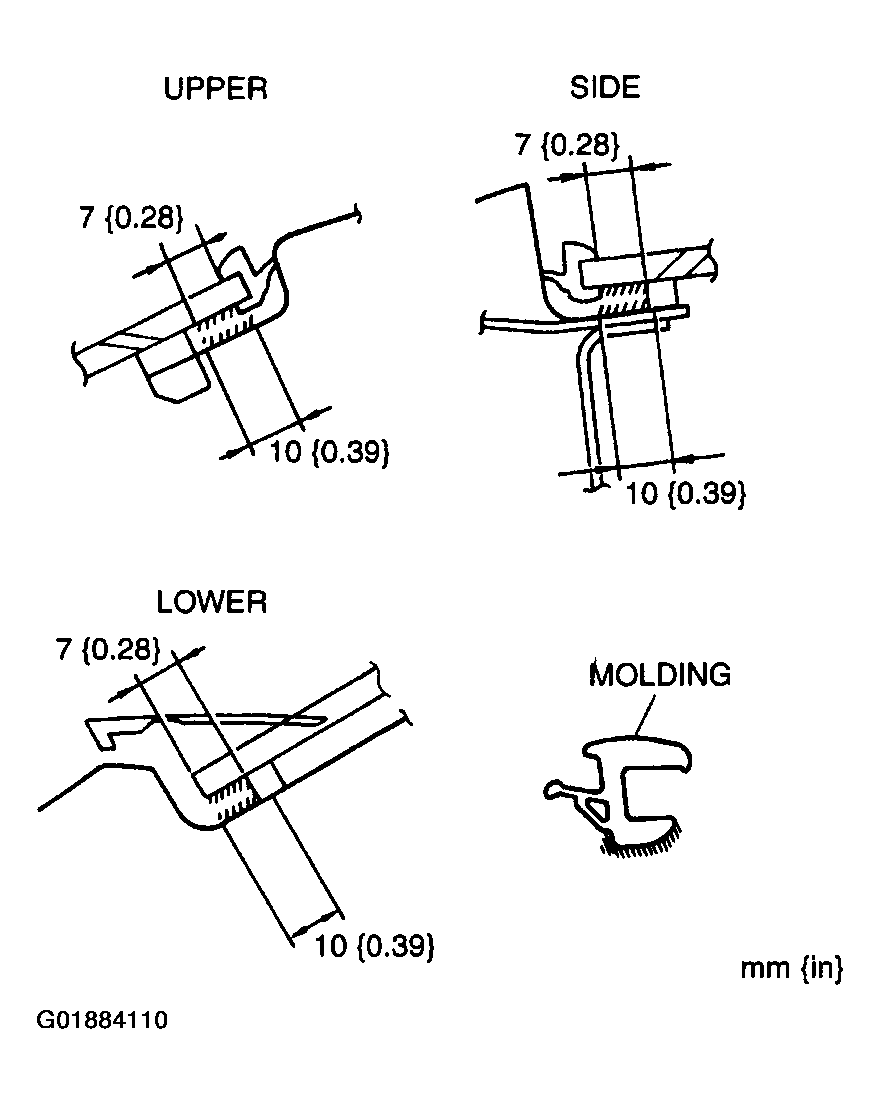

Use a brush to apply primer to the bonding area of the glass, the body, and the molding within the region shown.
NOTE:
- Use only glass primer on the glass, and body primer on the body and the molding. Allow it to dry for approximately 30 minutes.
Fig 7: Applying Primer To Bonding Area Of Glass
Courtesy of MAZDA MOTORS CORP.

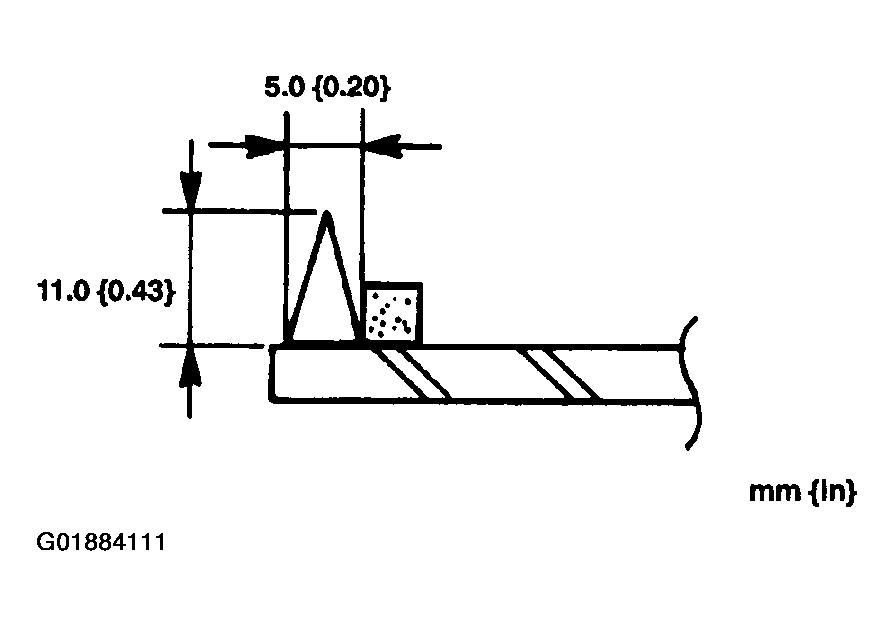

Once the primer is dry, apply sealant around the entire circumference to fill the gap between the dam and the edge of the glass measuring 11.0 mm {0.43 in} high and 5.0 mm {0.20 in} wide.

Fig 8: Identifying Sealant Application Specifications
Courtesy of MAZDA MOTORS CORP.

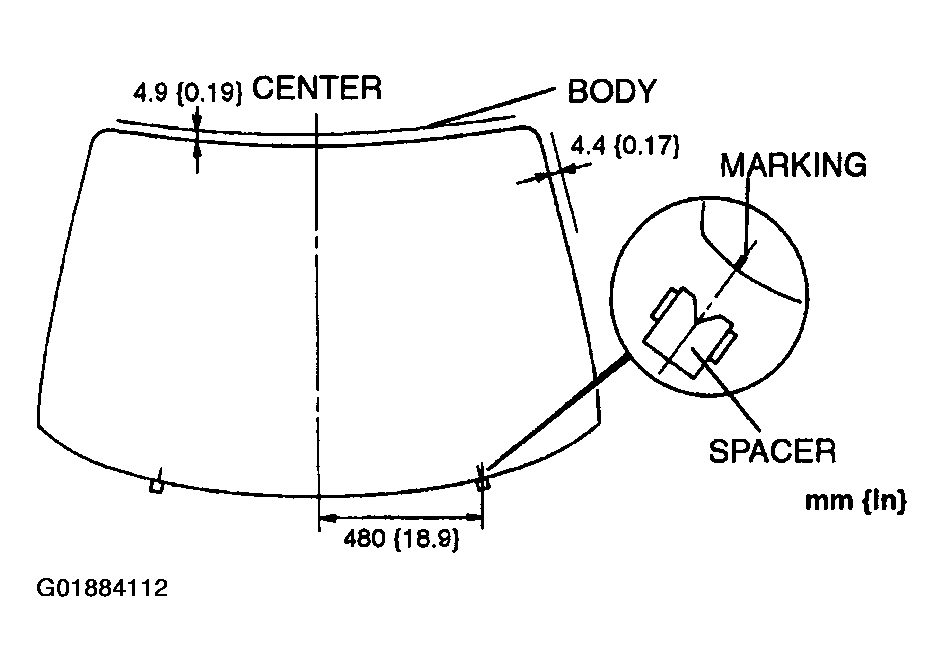

Align the glass marks with the V-notches in spacers and install the glass onto the body.
Press firmly inward on the glass to compress the sealant.
Verify that the gap along the upper edge is 4.9 mm {0.19 in} and side edge is 4.4 mm {0.17 in}.

Fig 9: Aligning Glass Marks With V-Notches In Spacers
Courtesy of MAZDA MOTORS CORP.
Use a scraper to smooth away any sealant that oozes out. Add more sealant to any points of poor contact. Adjust the sealant as shown if necessary.

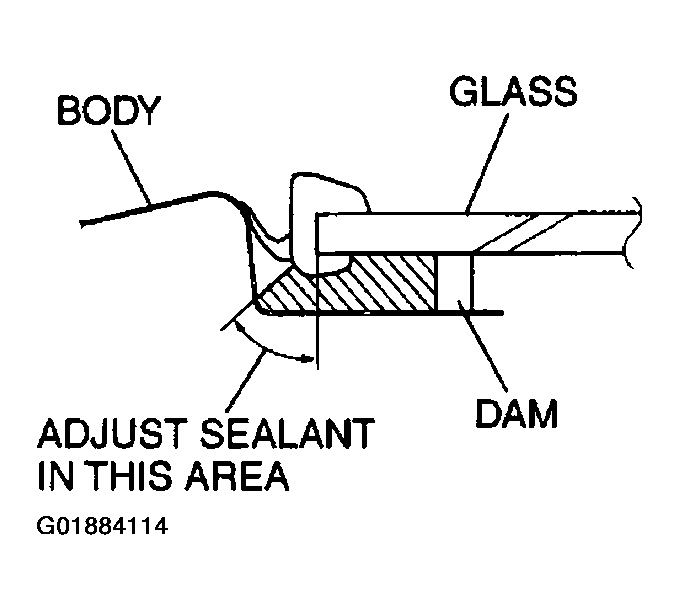

Fig 10: Adjusting Sealant
Courtesy of MAZDA MOTORS CORP.

Hardening time of sealant

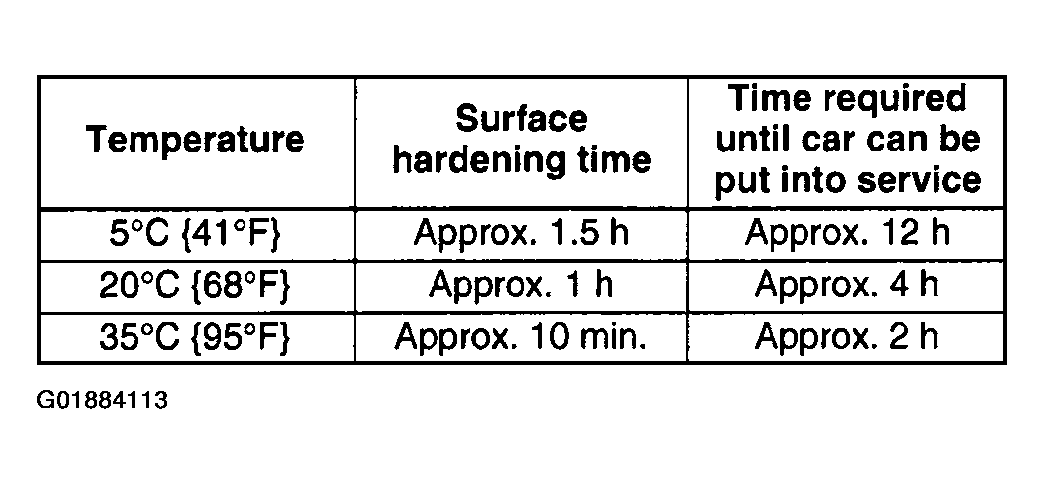

Fig 11: Hardening Time Of Sealant Table
Courtesy of MAZDA MOTORS CORP.
Use isopropyl alcohol to remove any excess sealant.
Install the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
Install the base. (See BASE INSTALLATION .)
Install the rearview mirror. (See REARVIEW MIRROR INSTALLATION .)
