Windshield Removal: Notes
- Remove the rearview mirror. (See
REARVIEW MIRROR REMOVAL
.)
- Remove the cowl grille. (See
COWL GRILLE REMOVAL/INSTALLATION
.)
- Remove the headliner. (See
HEADLINER REMOVAL/INSTALLATION
.)
- Apply protective tape along the edge of the body to protect it from damage.
Courtesy of MAZDA MOTORS CORP.
- Apply protective tape to the dashboard to protect it from damage.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
NOTE:
- The windshield molding is a replacement part.

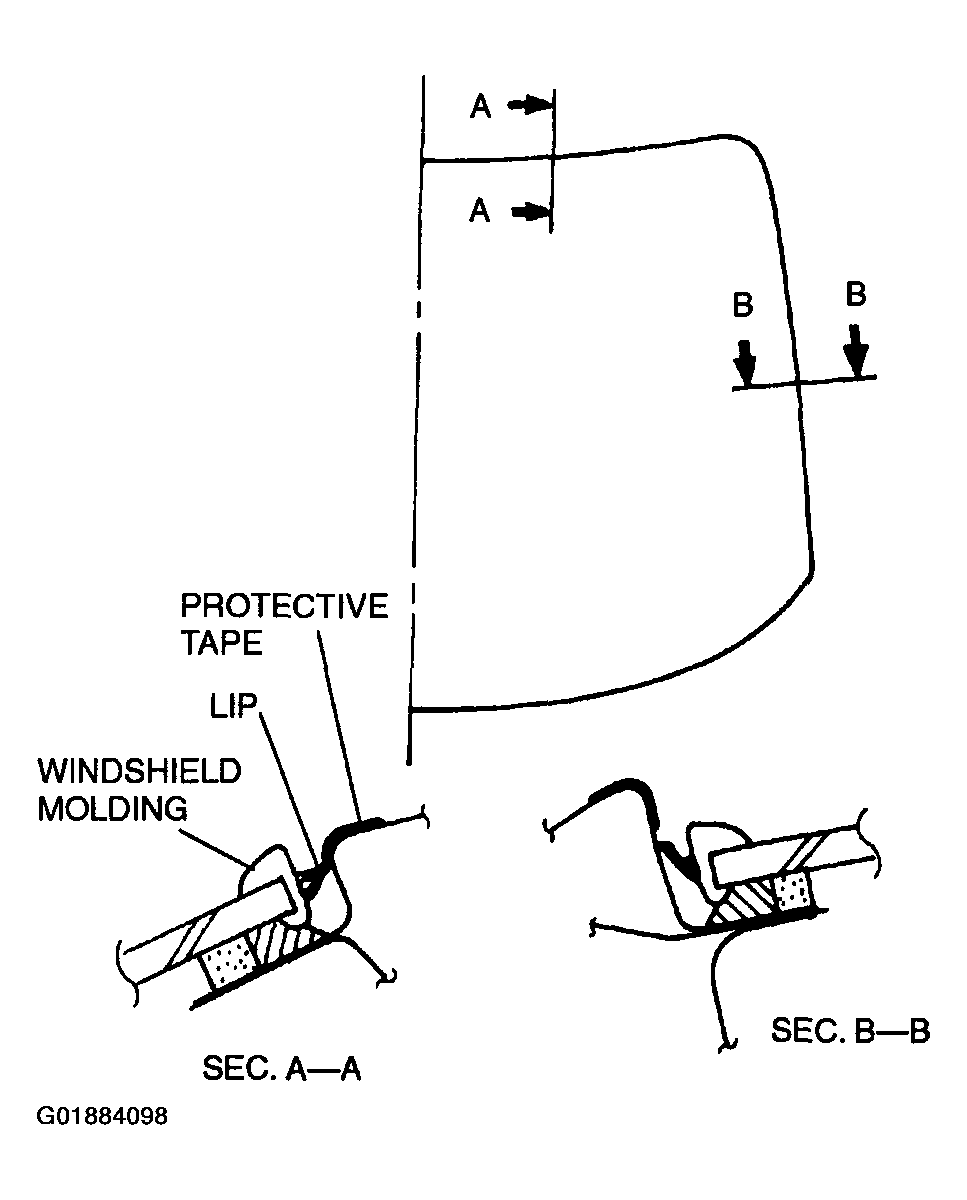

- Cut the lip of the windshield molding using a razor.
