Abs HU/Cm Inspection: Notes

  1. Remove the battery and battery tray.
  2. Connect the SST between the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) and harness connector with the ignition switch off.
  3. Attach the tester leads to the SST to inspect voltage by referring to the table below.
    CAUTION:
    • In the event that the vehicle is to be inspected while it is being driven, make sure that the SST harness does not interfere with parts in the engine room.

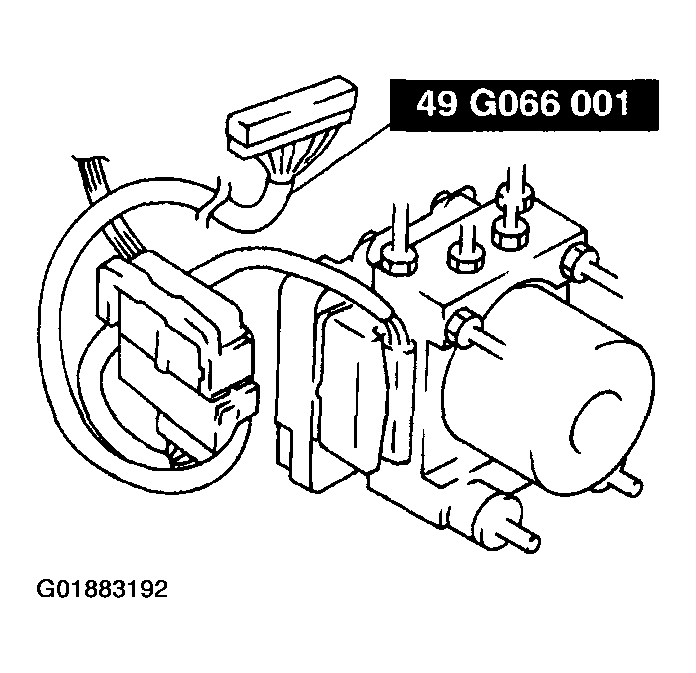

      Fig 1: Connecting SST
      G01883192Courtesy of MAZDA MOTORS CORP.
