Abs HU/Cm Removal/Installation: Notes

CAUTION:
  • Do not drop the ABS HU/CM. Replace it if it is subjected to an impact.
  1. Remove the battery.
  2. Remove the air cleaner.
  3. Remove the air filter.
  4. Remove the splash shield.
  5. Remove in the order indicated in the illustration.
  6. Install in the reverse order of removal.

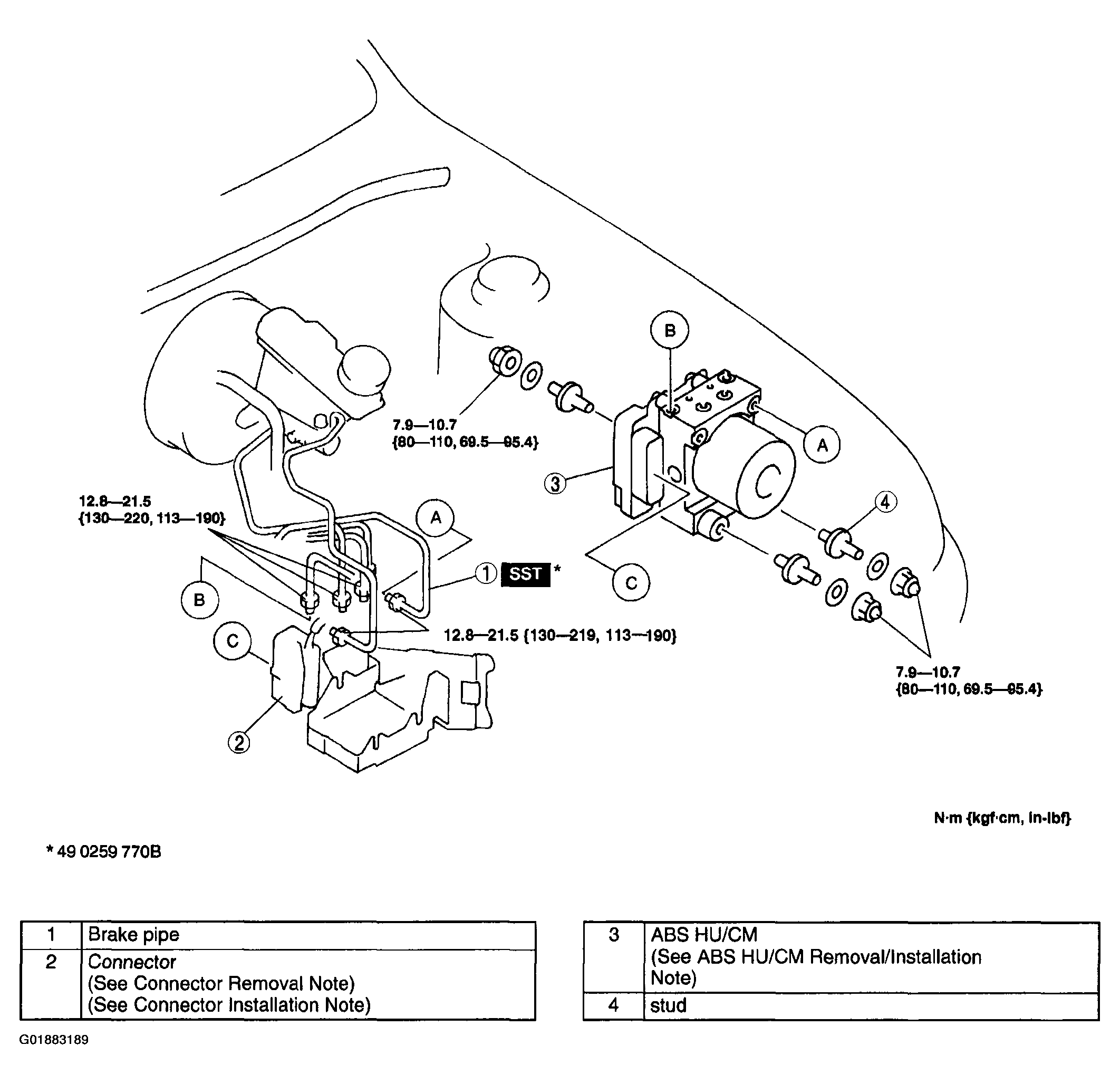

    Fig 1: Removal Order Of ABS HU/CM
    G01883189Courtesy of MAZDA MOTORS CORP.
