Front Abs Wheel-Speed Sensor Removal/Installation

  1. For left side, remove the air cleaner and air filter.
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

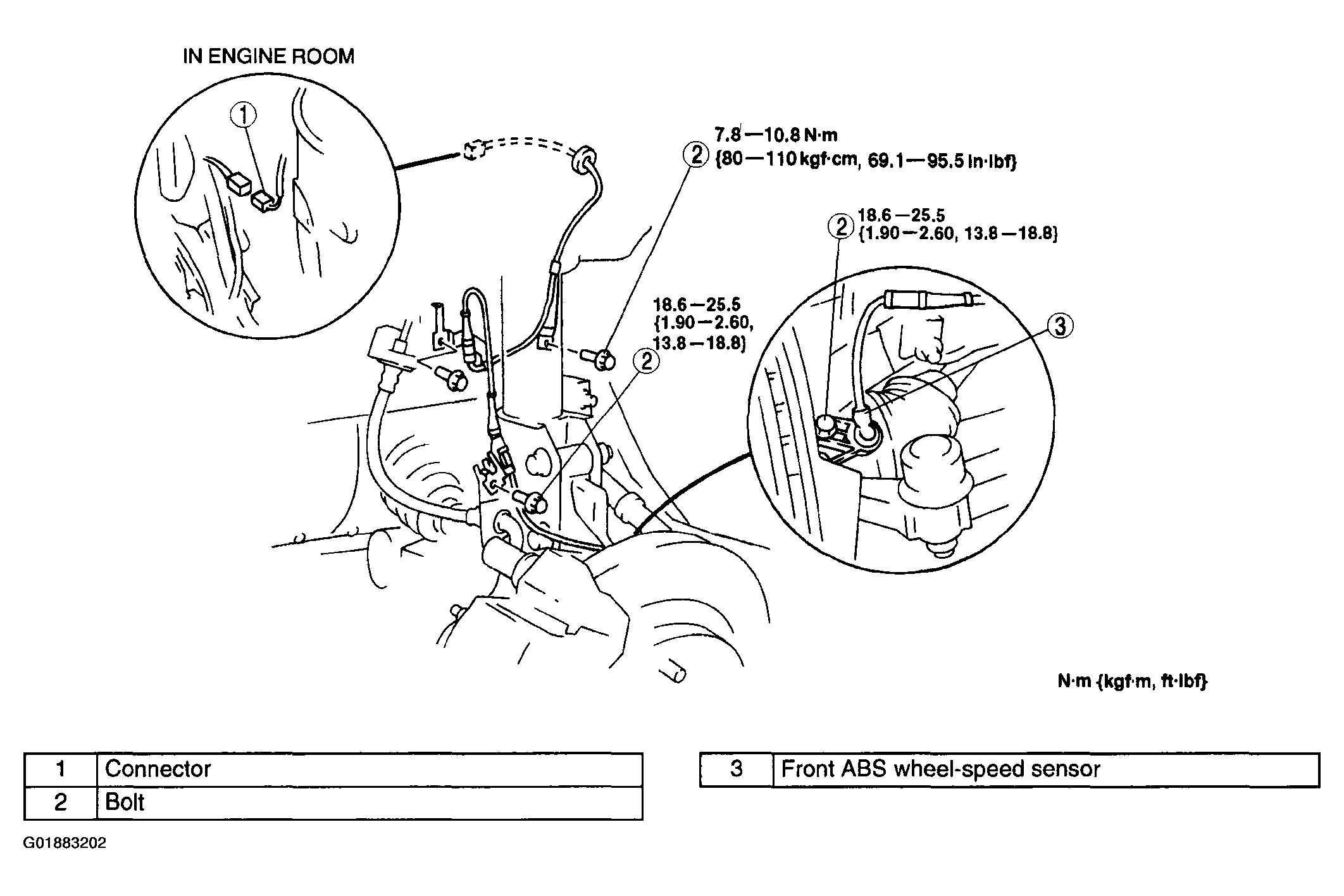

    Fig 1: Removal Order Of Front ABS Wheel-Speed Sensor
    G01883202Courtesy of MAZDA MOTORS CORP.
