TCS Off Switch Inspection

Remove the TCS OFF switch.
Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
- If not within the specification, replace the TCS OFF switch.

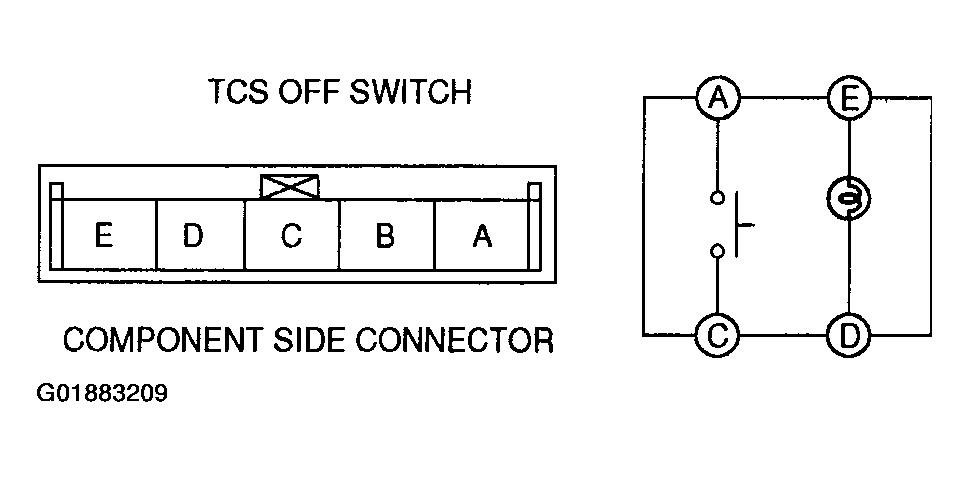

  Fig 1: Inspecting TCS Off Switch (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

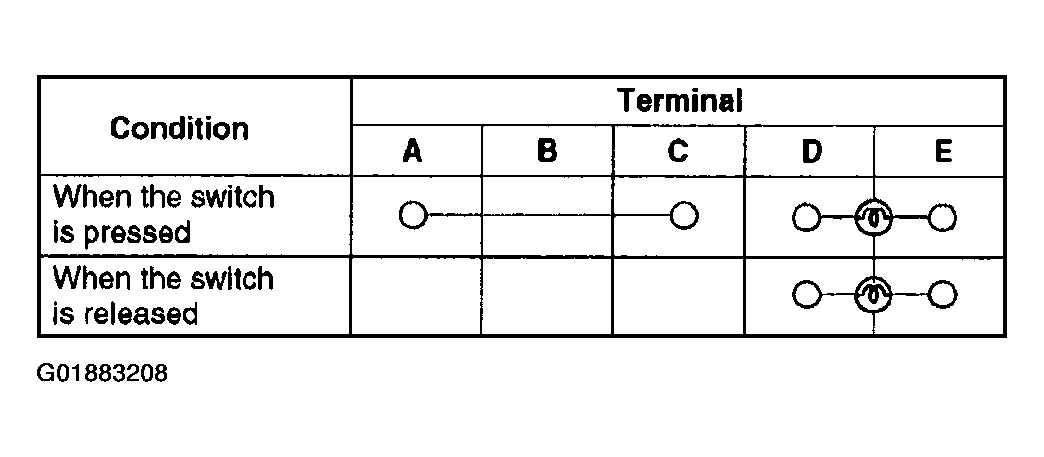

  Fig 2: Inspecting TCS Off Switch (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
