Bench Testing: Rectifier

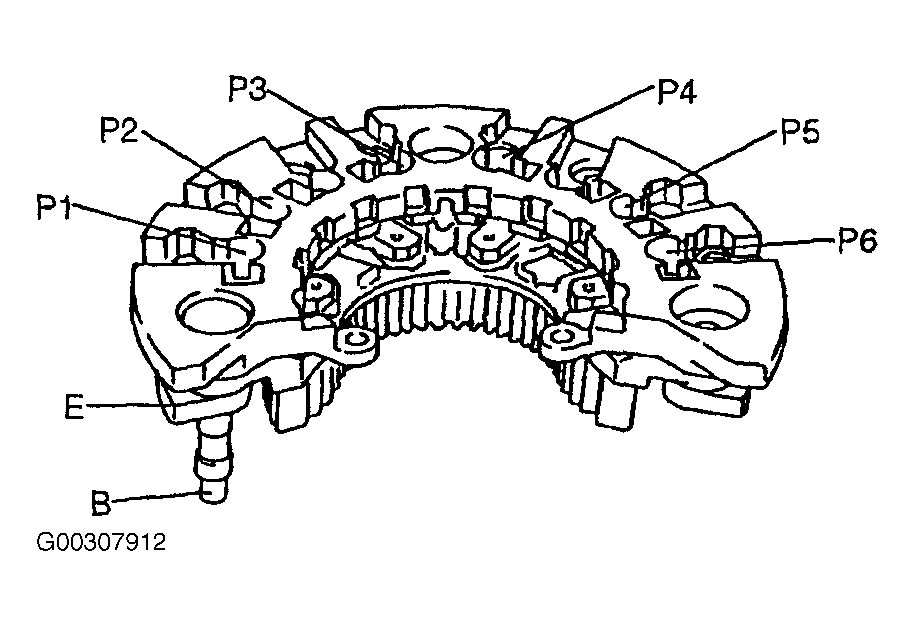

Inspect for continuity of the diodes using an analog circuit tester. See Fig 1. See RECTIFIER DIODE CONTINUITY . Replace rectifier if not as specified.
RECTIFIER CONTINUITY
| Tester Negative Probe | Tester Positive Probe | Continuity |
|---|---|---|
| E | P1, P2, P3, P4, P5 & P6 | Yes |
| B | P1, P2, P3, P4, P5 & P6 | No |
| P1, P2, P3, P4, P5 & P6 | E | No |
| P1, P2, P3, P4, P5 & P6 | B | Yes |
