Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Hydraulic Unit/Control Module (ABS HU/CM) | At left rear corner of engine compartment. |

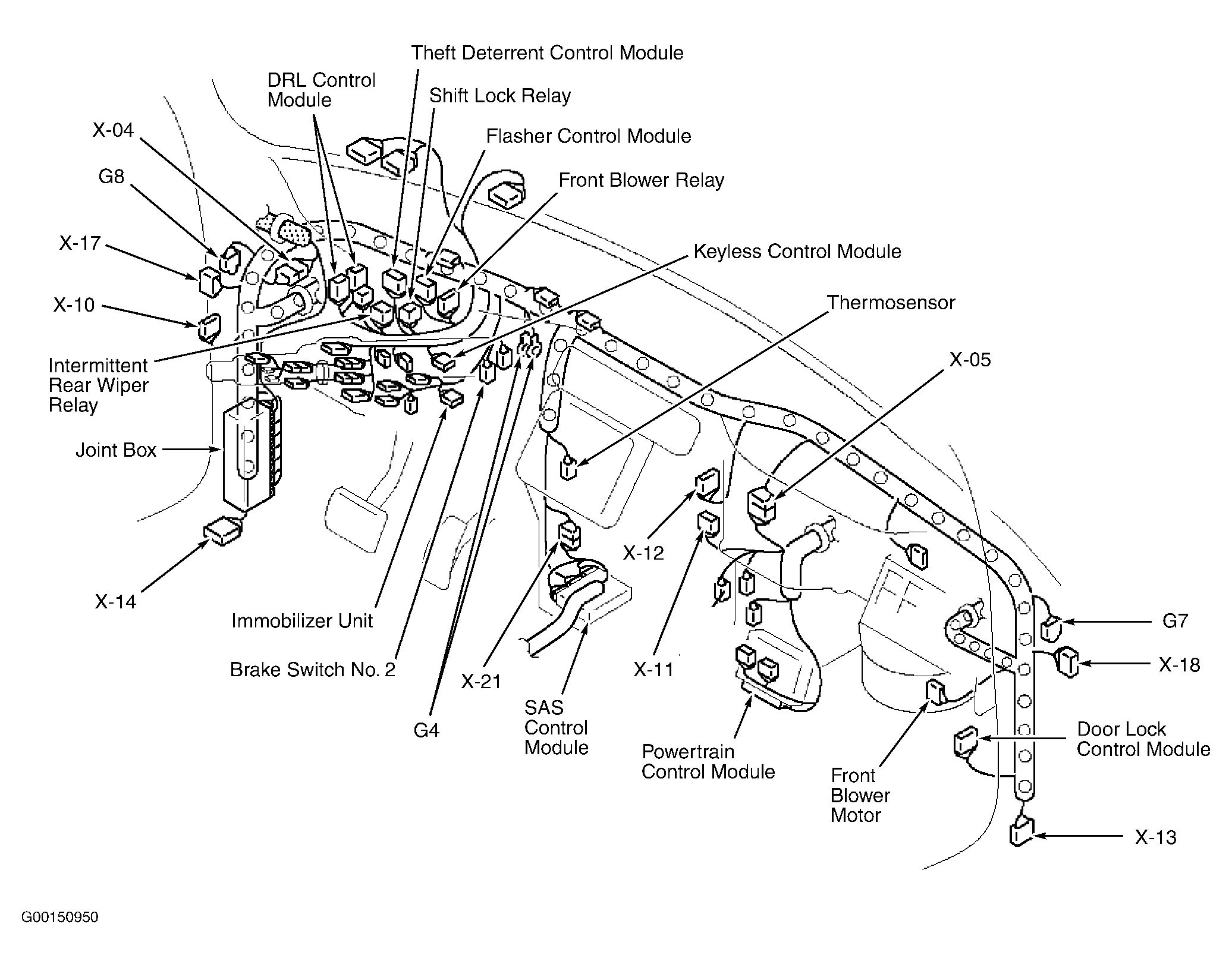

| Door Lock Control Module | Behind right side of dash. See Figure. |
| DRL Control Module | Behind left side of dash. See Figure. |
| Fan Control Module | At right front of engine compartment. See Figure. |
| Immobilizer Unit | Behind left side of dash. See Figure. |
| Keyless Control Module | Behind left side of dash. See Figure. |

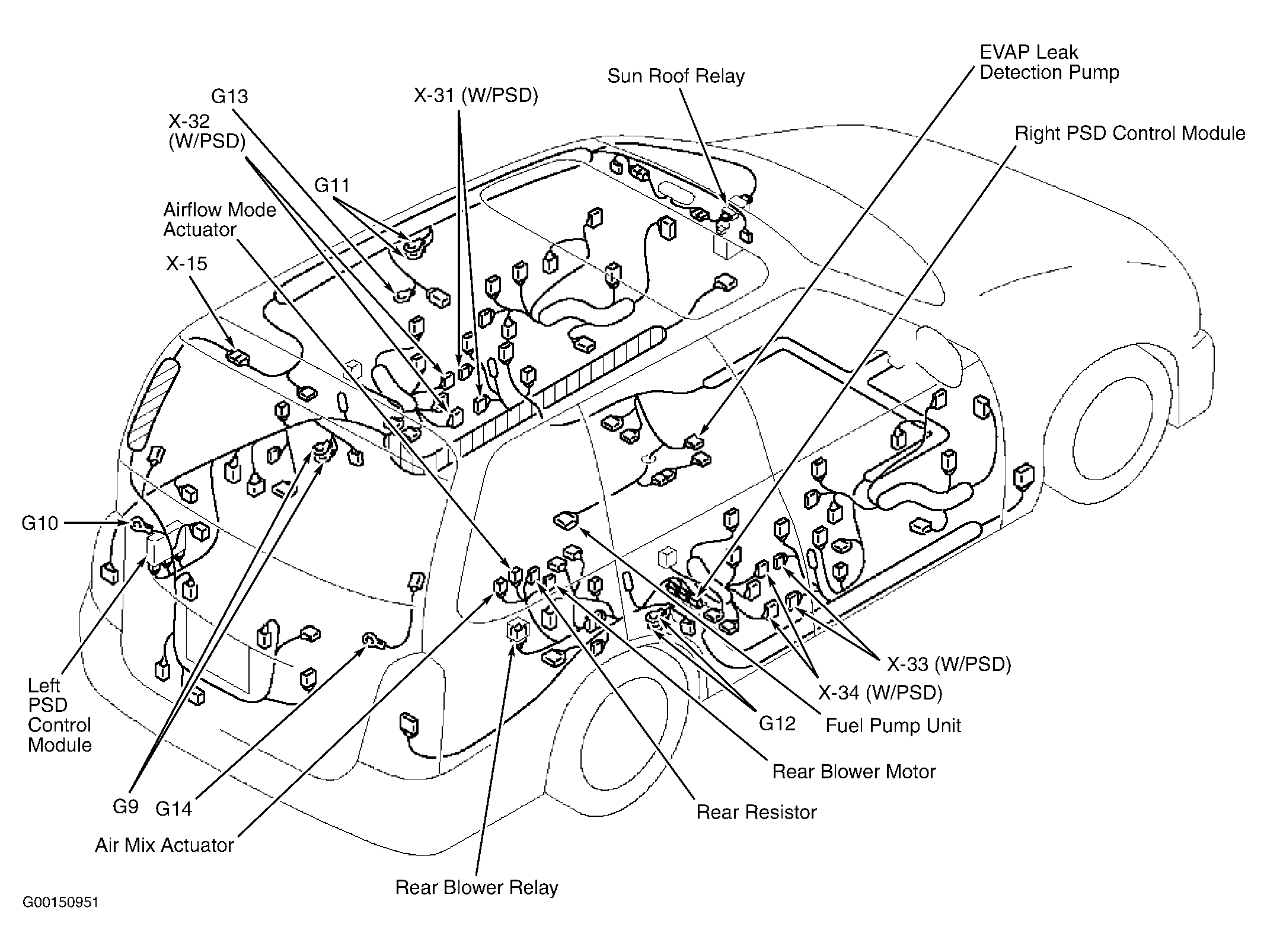

| Left PSD Control Module | Behind left rear quarterpanel. See Figure. |
| Powertrain Control Module | Below right center of dash. See Figure. |
| Right PSD Control Module | At front of right rear wheelwell. See Figure. |
| SAS Control Module | At lower center of dash. See Figure. |
| Theft Deterrent Control Module | Behind left side of dash. See Figure. |
