Engine Technical Data

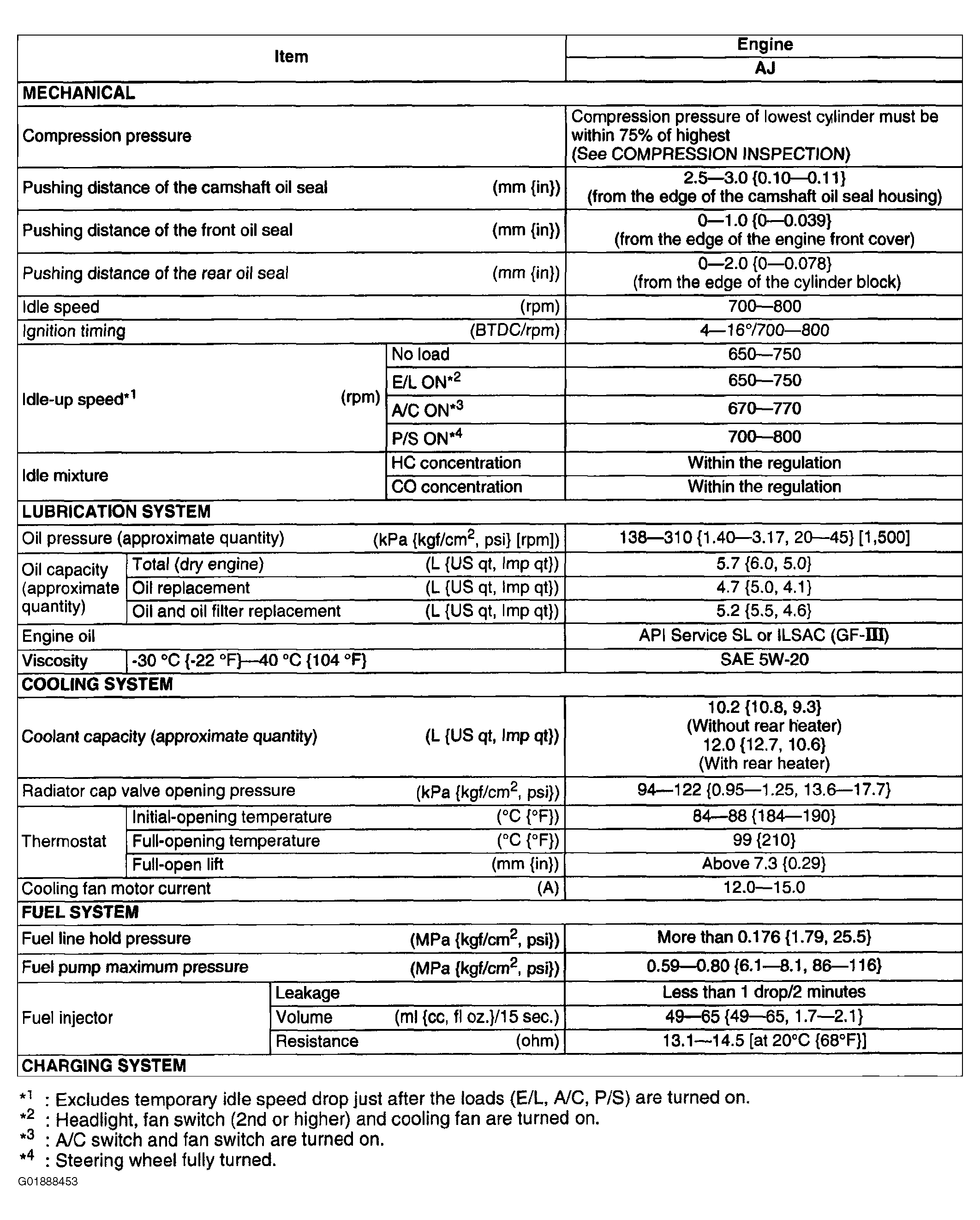

Fig 1: Engine Technical Data Sheet (1 Of 2)
G01888453Courtesy of MAZDA MOTORS CORP.

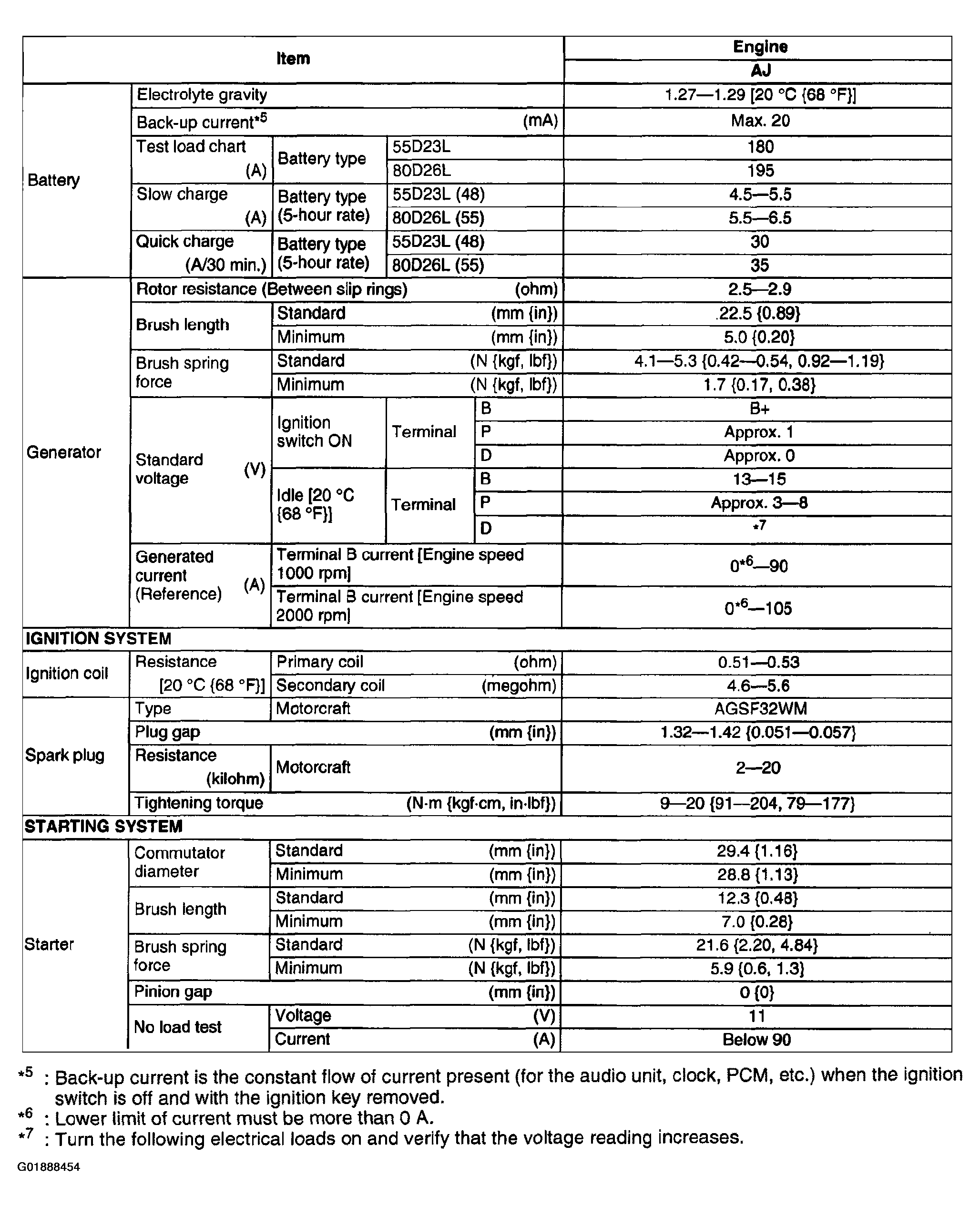

Fig 2: Engine Technical Data Sheet (2 Of 2)
G01888454Courtesy of MAZDA MOTORS CORP.
