Vacuum Diagrams: Introduction: B3000

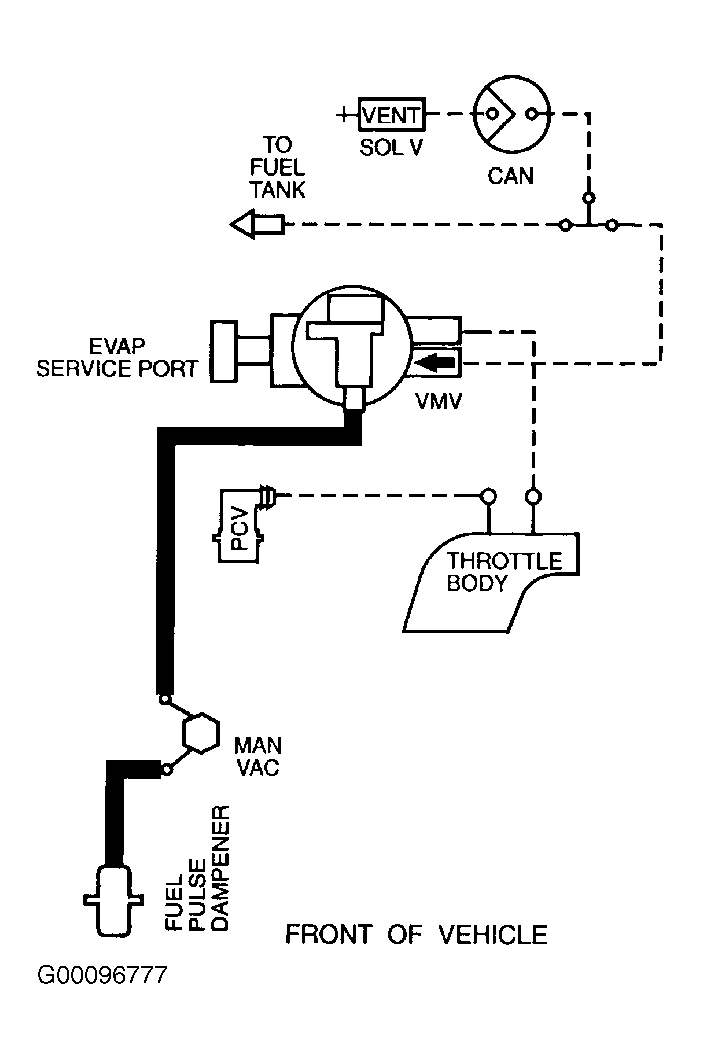

Fig 1: Vacuum Diagram - 2003 (B3000 3.0L)

G00096777

Courtesy of FORD MOTOR CO.
