Vacuum Diagrams: Introduction: MAZDA6

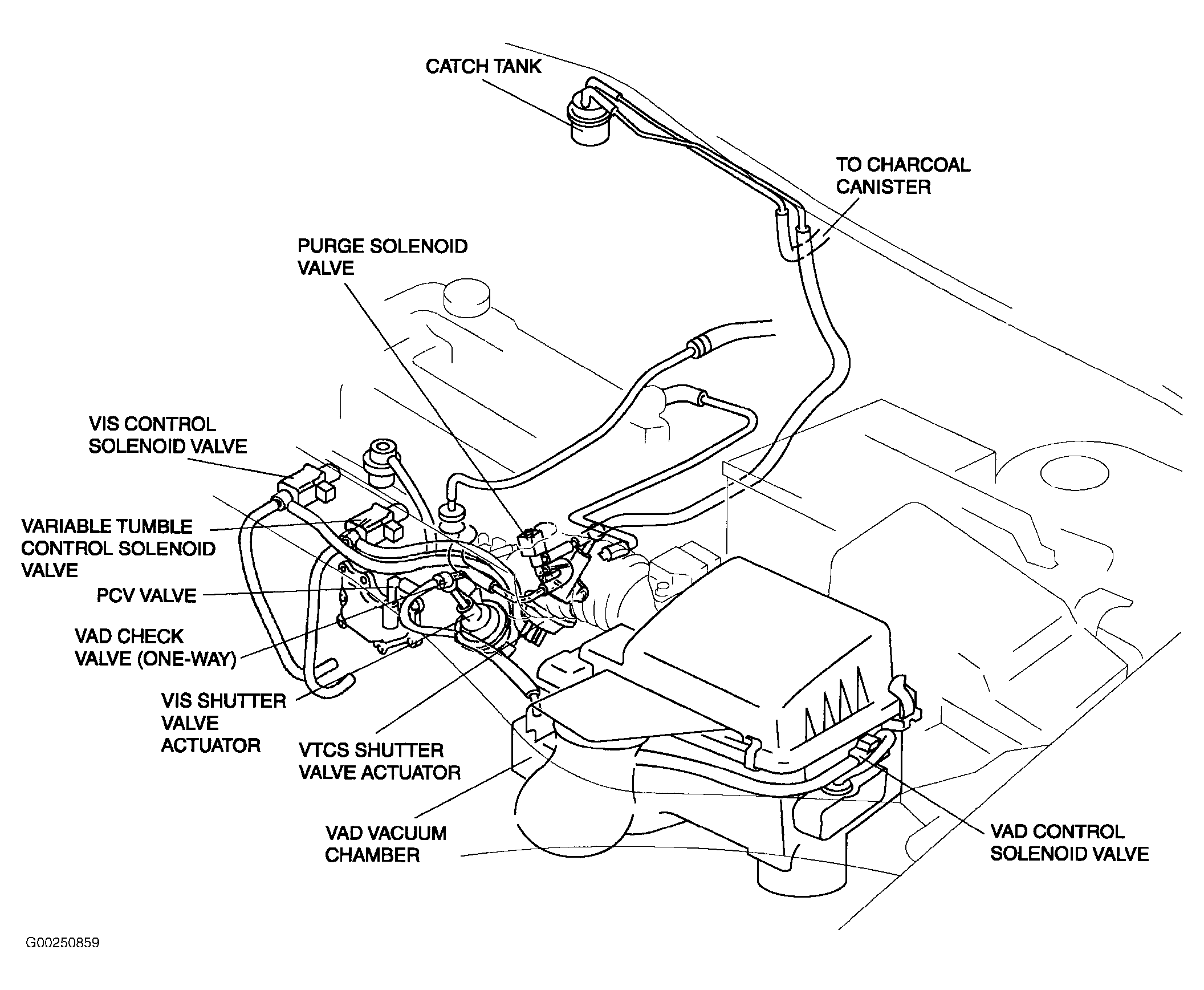

Fig 1: Vacuum Diagrams - 2003 (Mazda6 2.3L)
G00250859Courtesy of MAZDA MOTORS CORP.

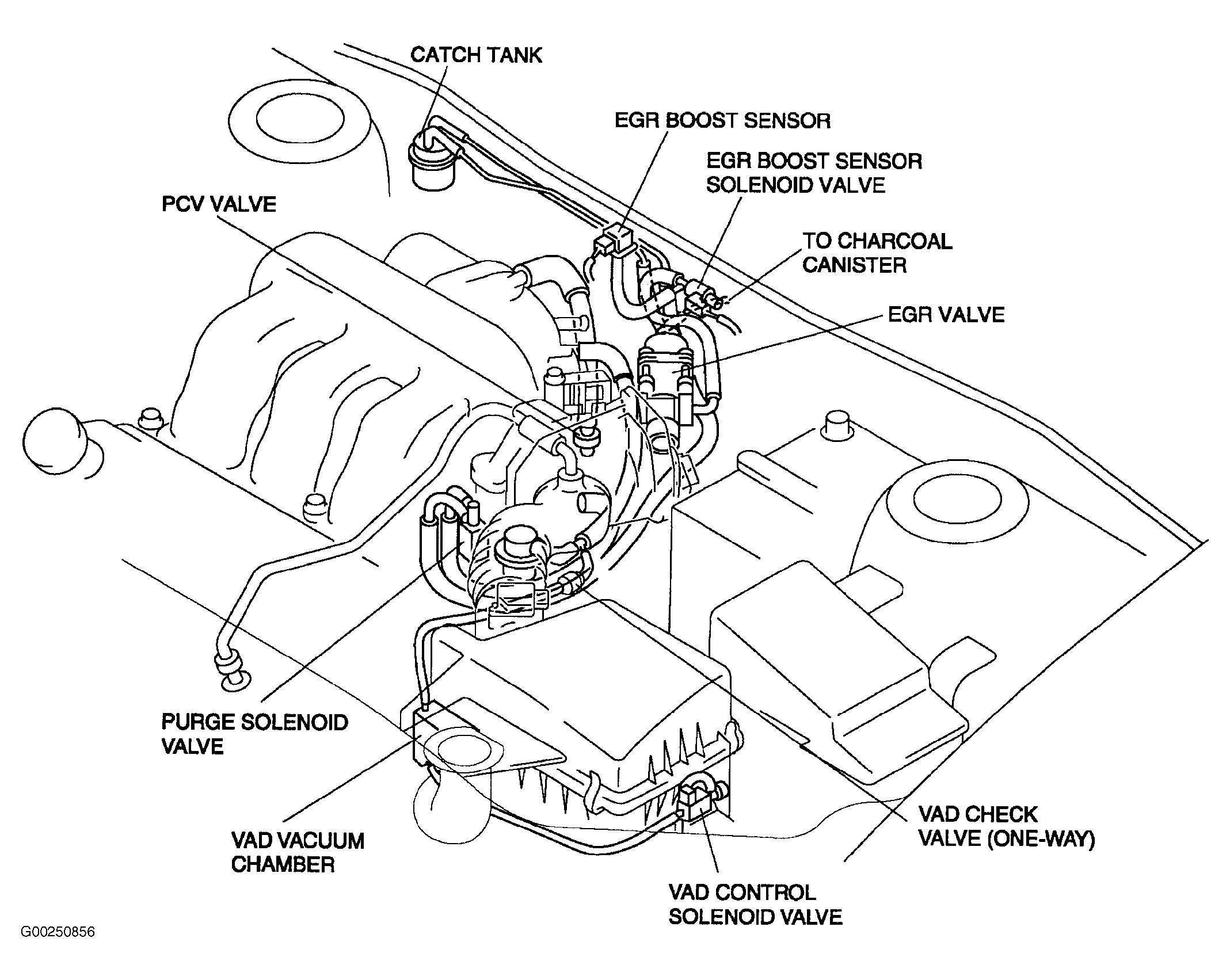

Fig 2: Vacuum Diagram - 2003 (Mazda6 3.0L)
G00250856Courtesy of MAZDA MOTORS CORP.
