Vacuum Diagrams: Introduction: MIATA

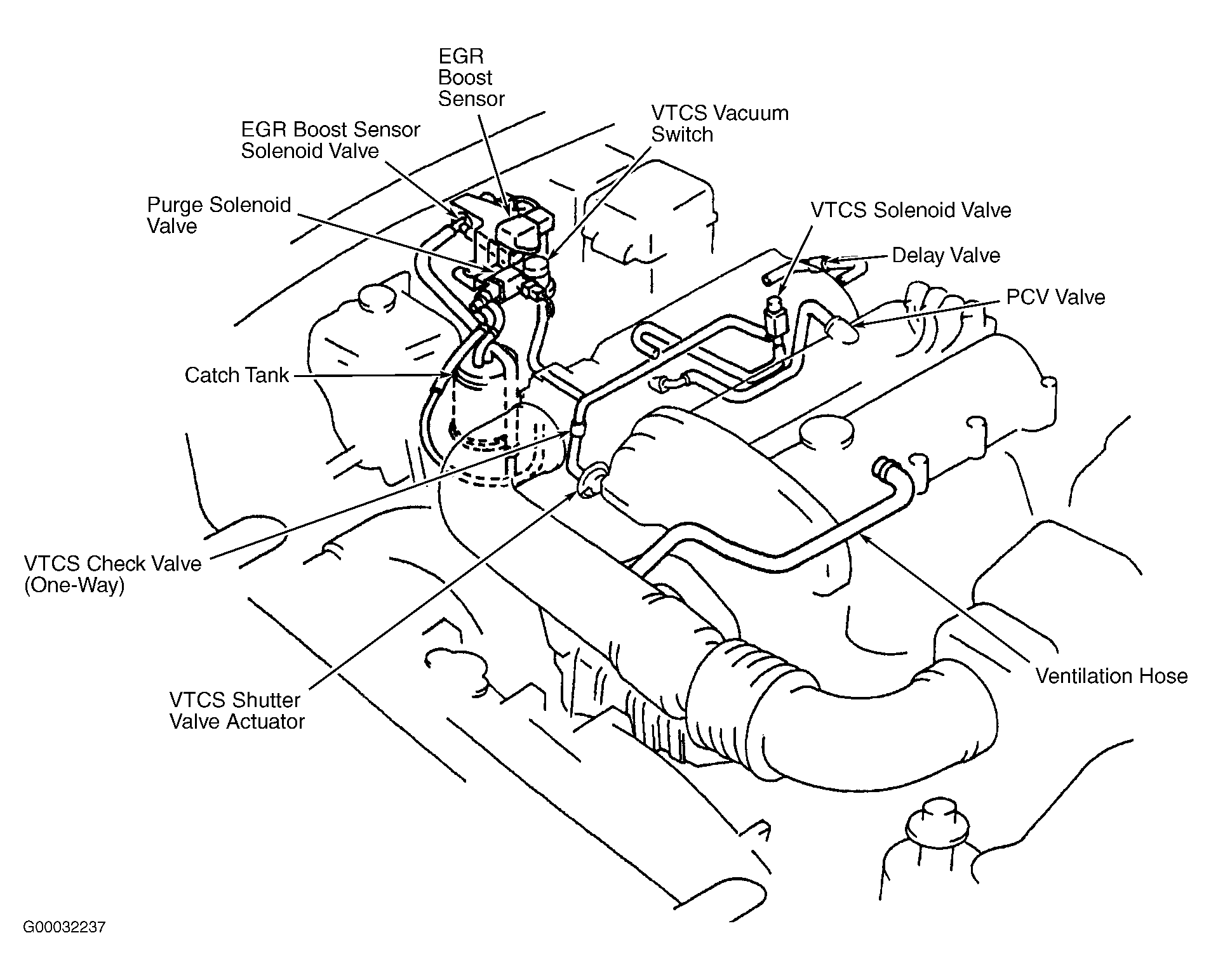

Fig 1: Vacuum Diagram - 2003 (Miata 1.8L)
G00032237Courtesy of MAZDA MOTORS CORP.
