Vacuum Diagrams: Introduction: MPV

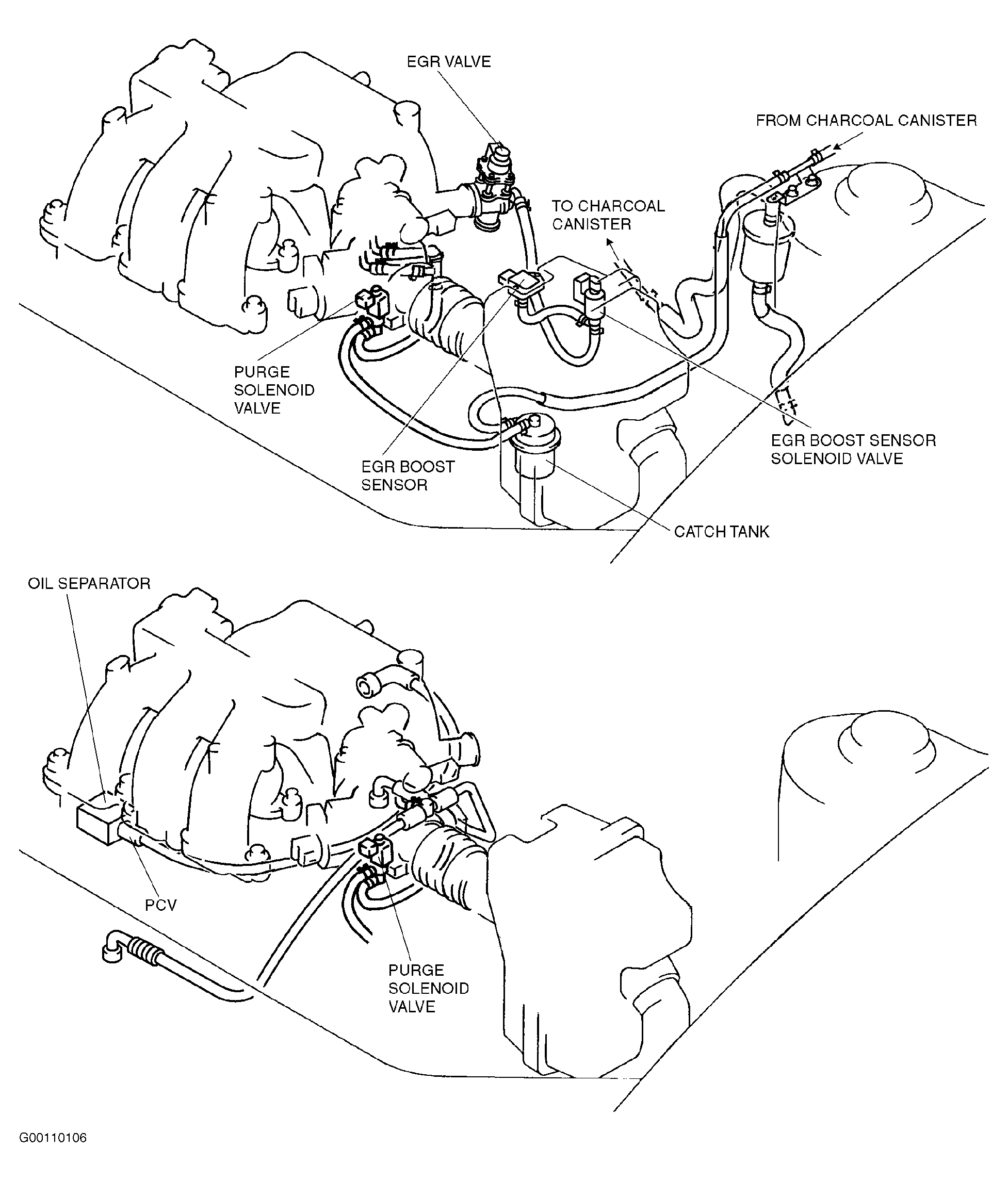

Fig 1: Vacuum Diagram - 2003 (MPV 3.0L)
G00110106Courtesy of MAZDA MOTORS CORP.
