Vacuum Diagrams: Introduction: Tribute

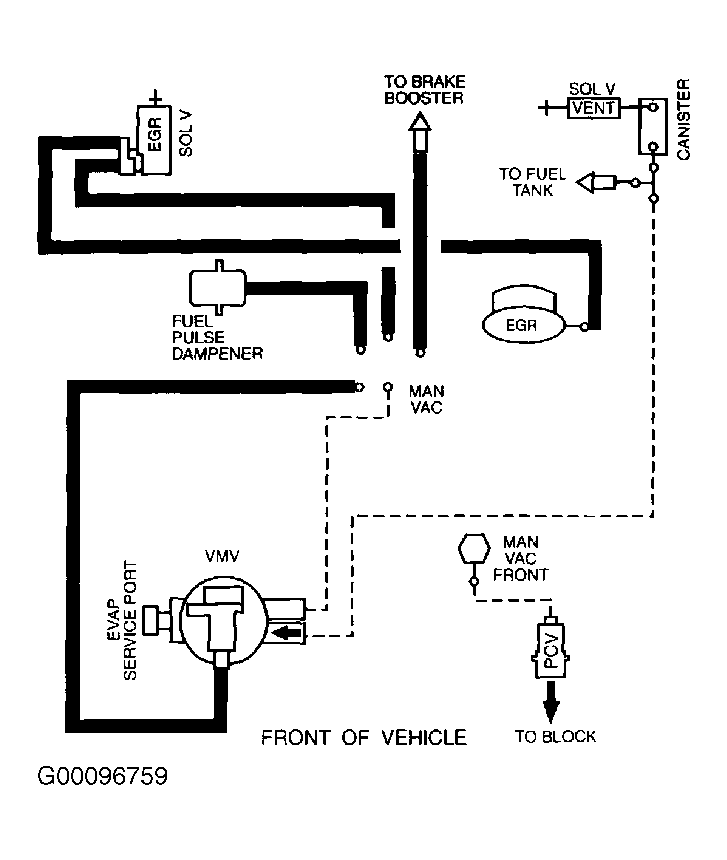

Fig 1: Vacuum Diagram - 2003 (Tribute 2.0L)
G00096759Courtesy of FORD MOTOR CO.

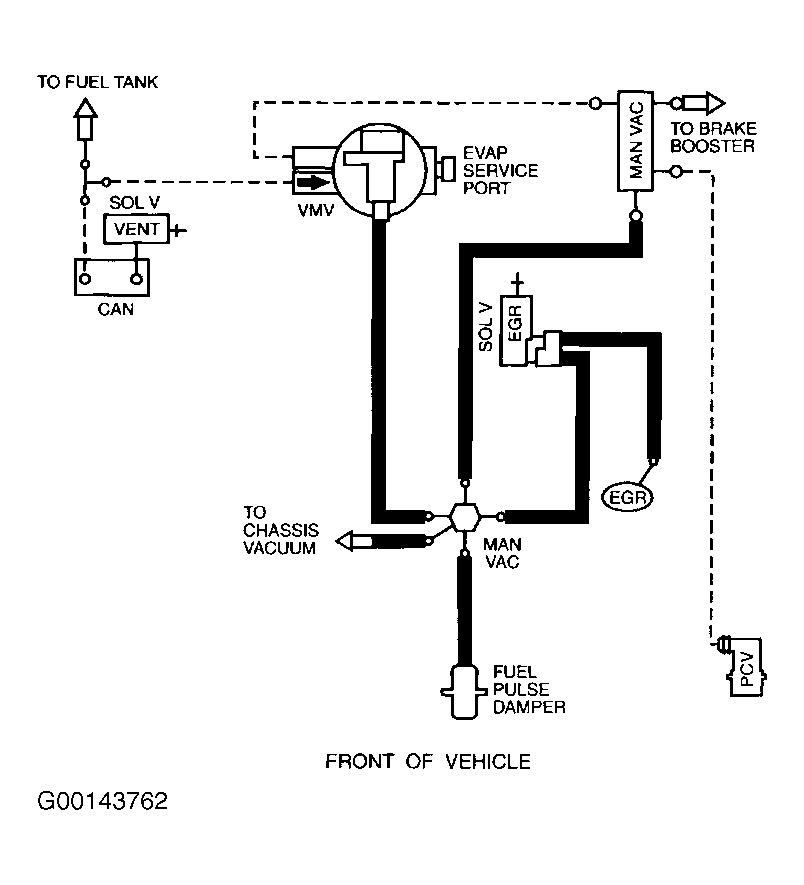

Fig 2: Vacuum Diagram - 2003 (Tribute 3.0L)
G00143762Courtesy of MAZDA MOTORS CORP.
