DSC Off Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the DSC OFF switch.
Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the DSC OFF switch.

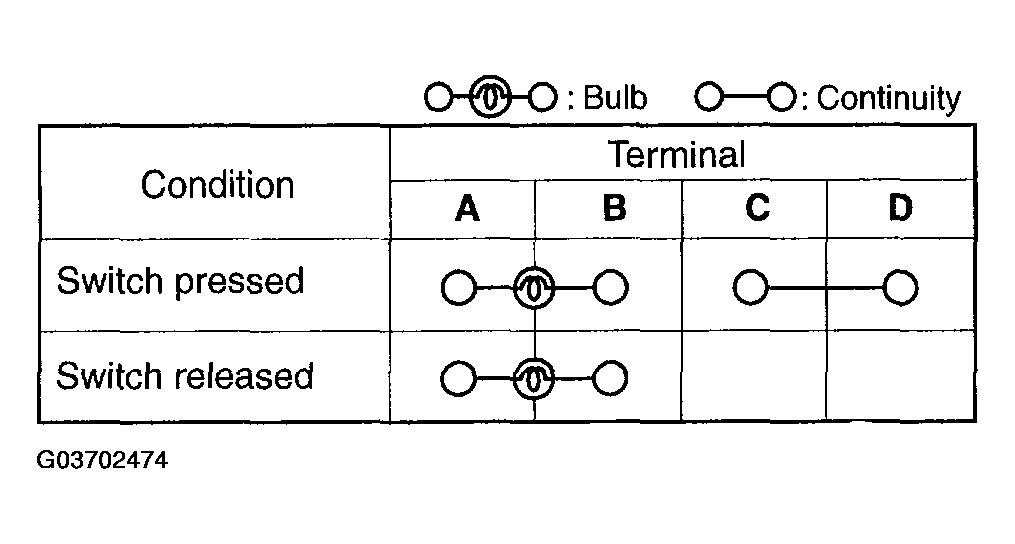

Fig 1: DSC Off Switch Terminals Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

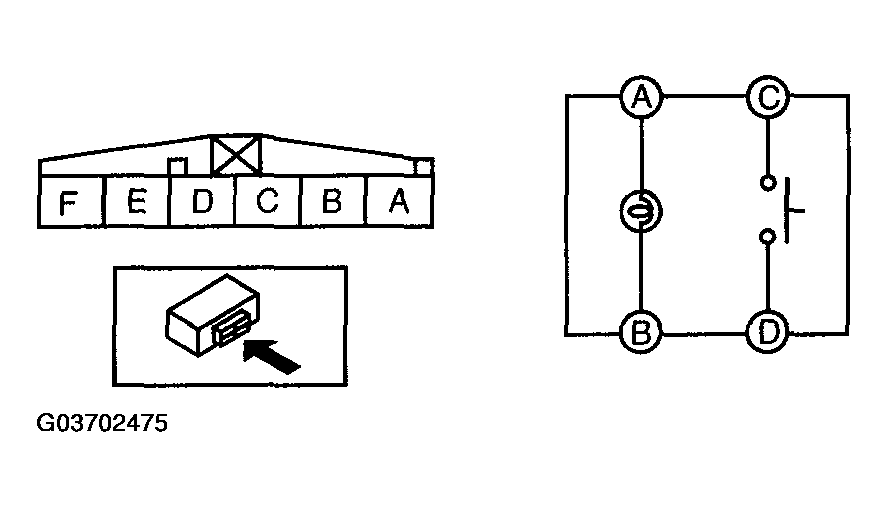

Fig 2: Inspecting DSC OFF Switch
Courtesy of MAZDA MOTORS CORP.
