Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
  3. Remove in the order indicated in the figure below.

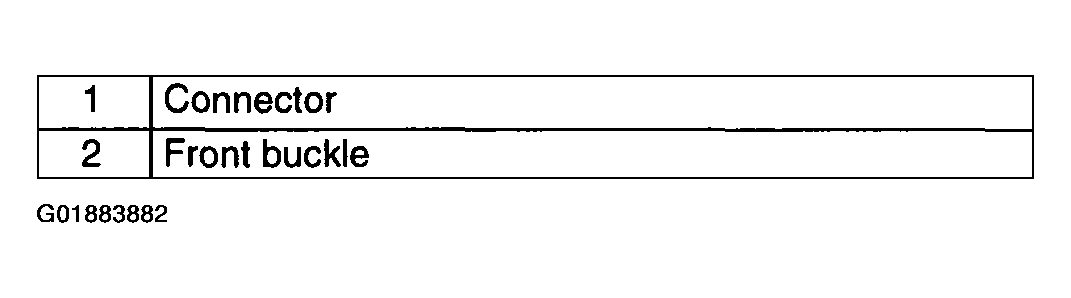

    Fig 1: Identifying Side Cover Removal Order - Front Buckle
    G01883882Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

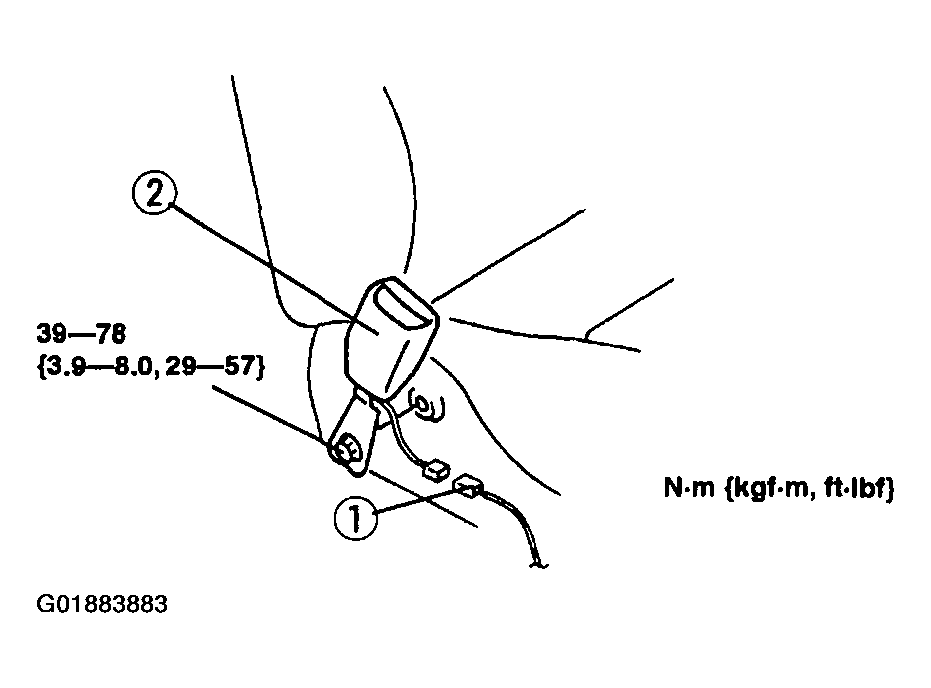

    Fig 2: Removing Side Cover - Front Buckle
    G01883883Courtesy of MAZDA MOTORS CORP.
