Second-Row Seat Belt Removal/Installation

CAUTION:

The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure below.

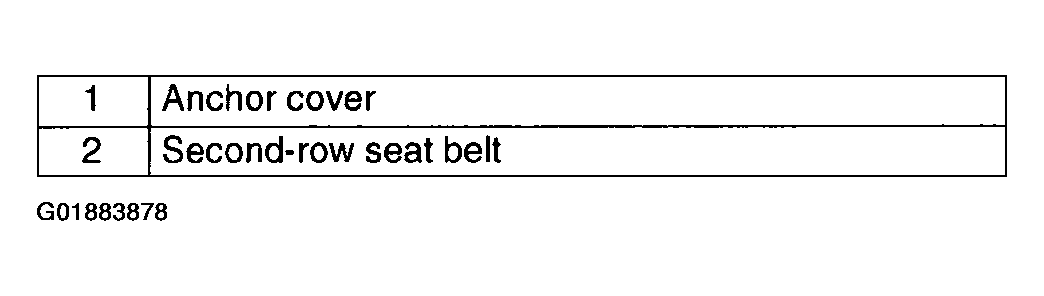

Fig 1: Identifying Rear Side Trim Removal Order - Second-Row Seat Belt
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

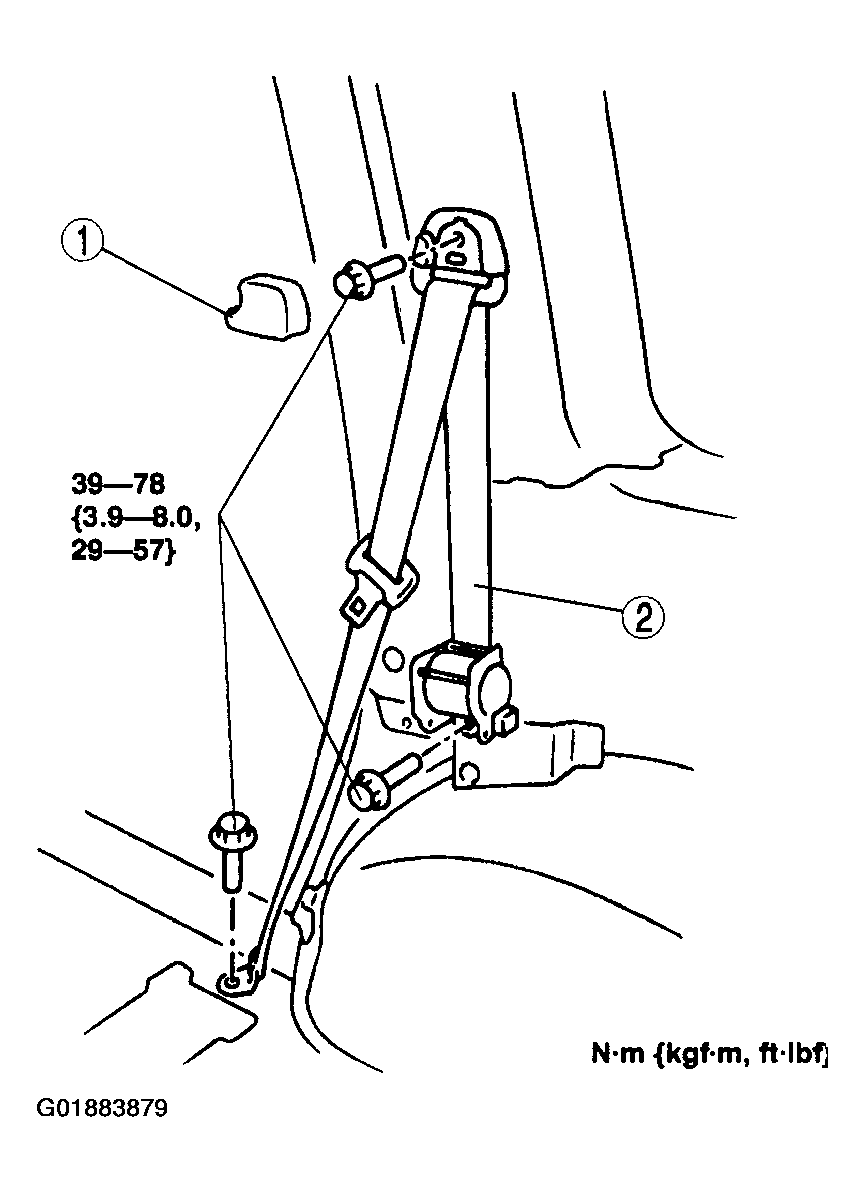

Fig 2: Removing Rear Side Trim - Second-Row Seat Belt
Courtesy of MAZDA MOTORS CORP.
