Vane Assembly Note

  1. Place the vanes in the rotor with the rounded edges contacting the cam.

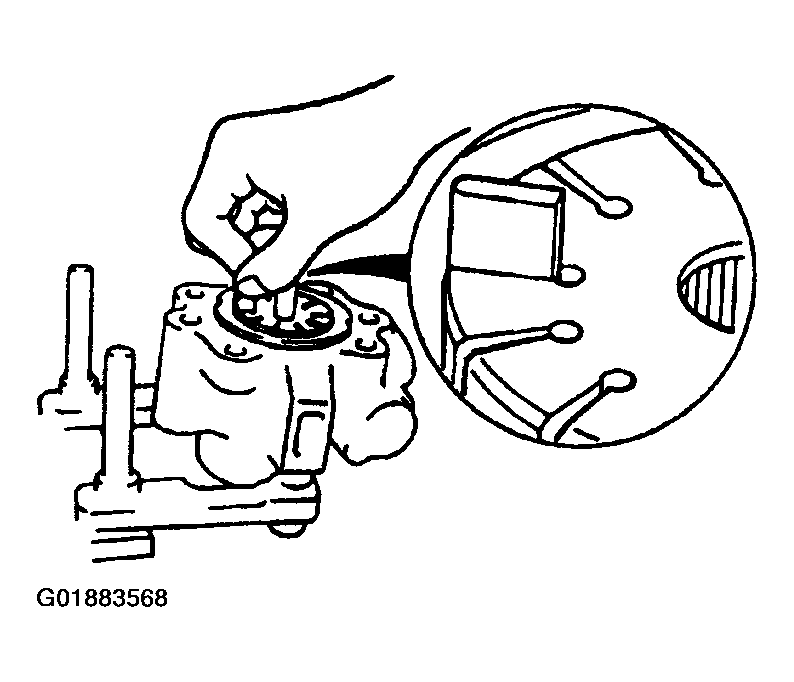

    Fig 1: Placing Vanes In Rotor With Rounded Edges Contacting Cam
    G01883568Courtesy of MAZDA MOTORS CORP.
