Power Steering Oil Pump Removal/Installation

  1. Remove in the order indicated in the figure below.
  2. Remove the No. 3 engine joint bracket. (See ENGINE REMOVAL/INSTALLATION for additional information.)
  3. Install in the reverse order of removal.
  4. Adjust the No. 3 joint bracket. (See Remove the No. 3 engine joint bracket. (See ENGINE REMOVAL/INSTALLATION for additional information.)

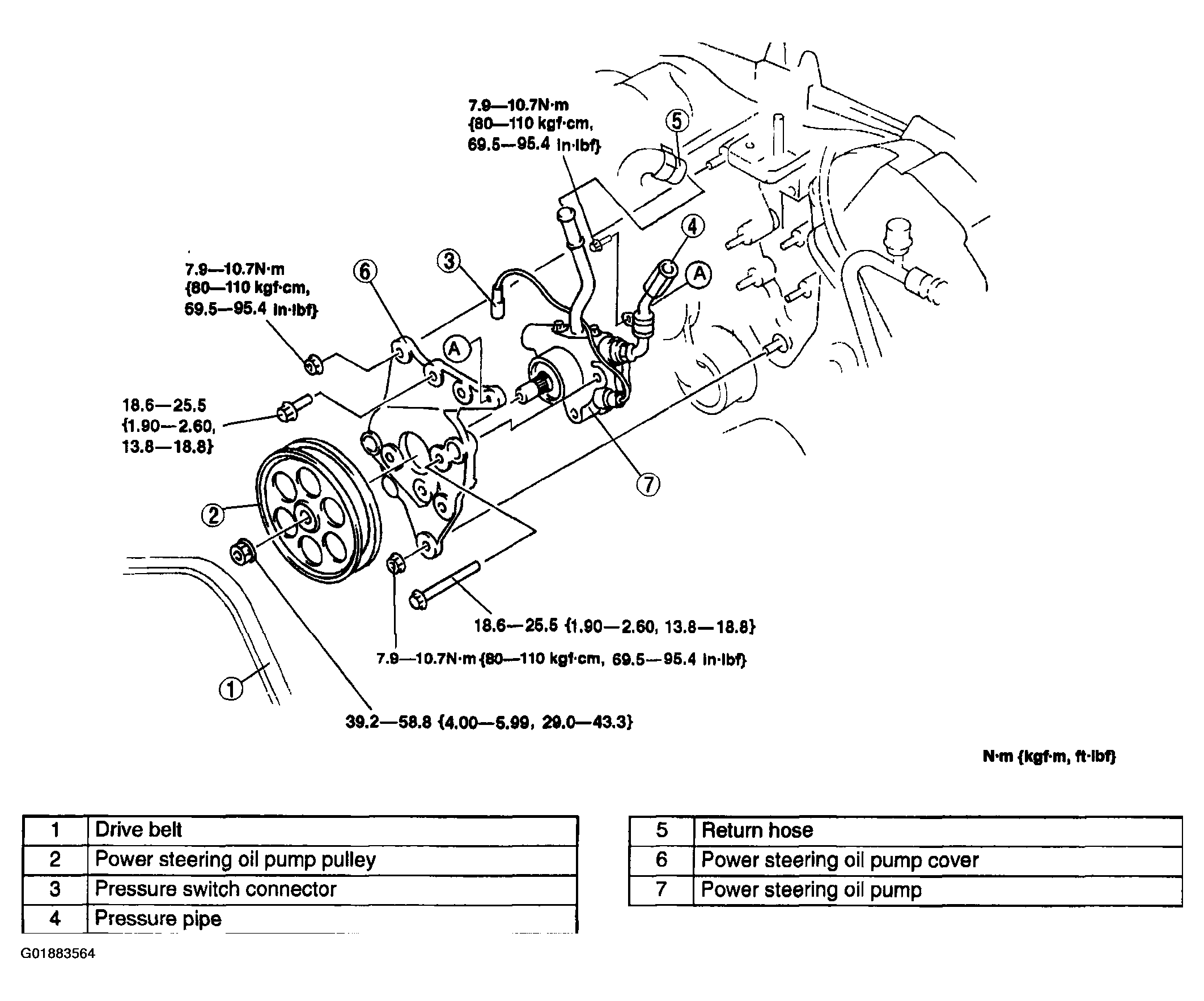

    Fig 1: Removal Order Of Power Steering Oil Pump
    G01883564Courtesy of MAZDA MOTORS CORP.
