Steering Gear And Linkage Assembly: Notes

CAUTION:

Place copper plates, rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.

Assemble in the order indicated.

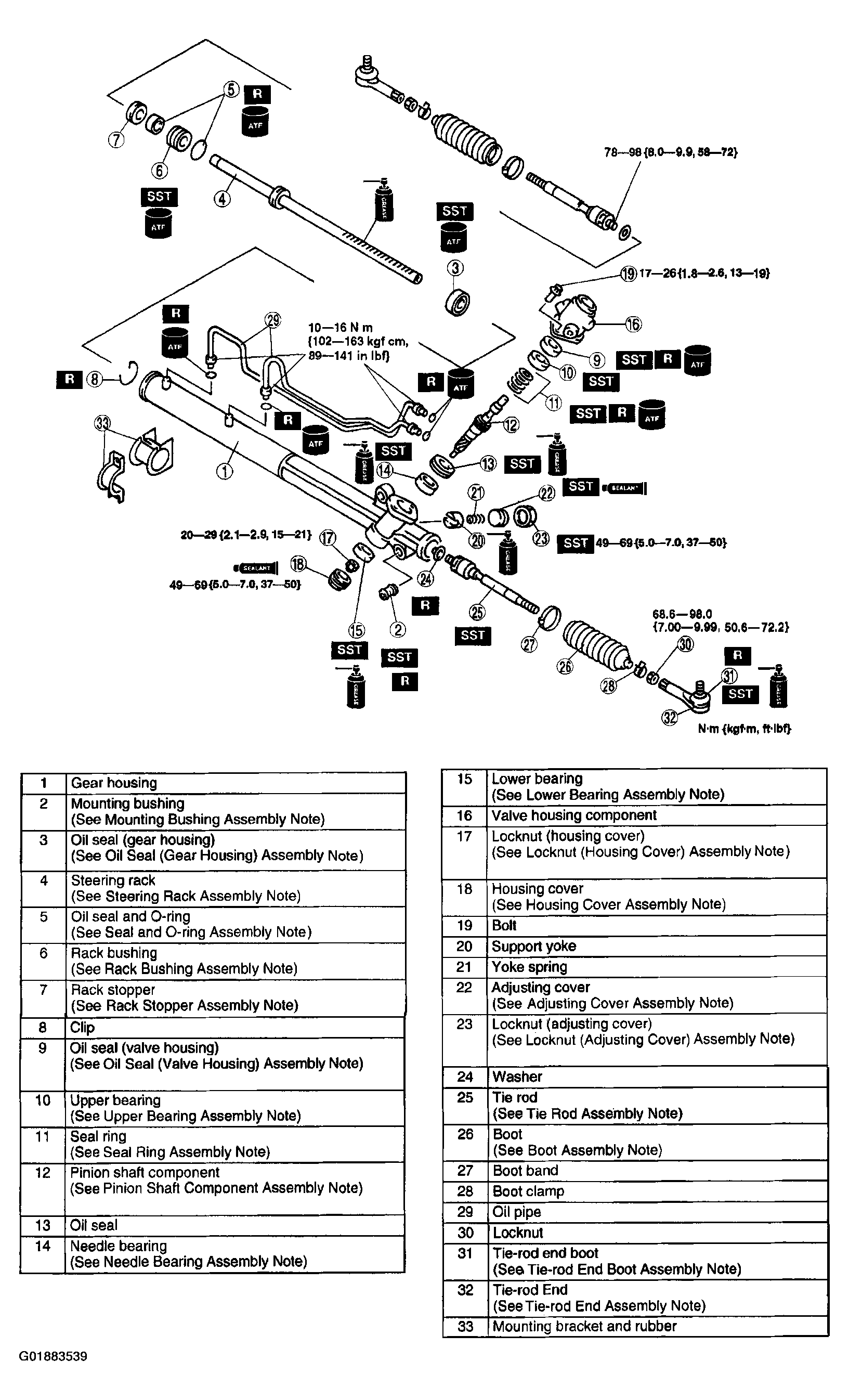

Fig 1: Assemble Order Of Steering Gear And Linkage
Courtesy of MAZDA MOTORS CORP.
