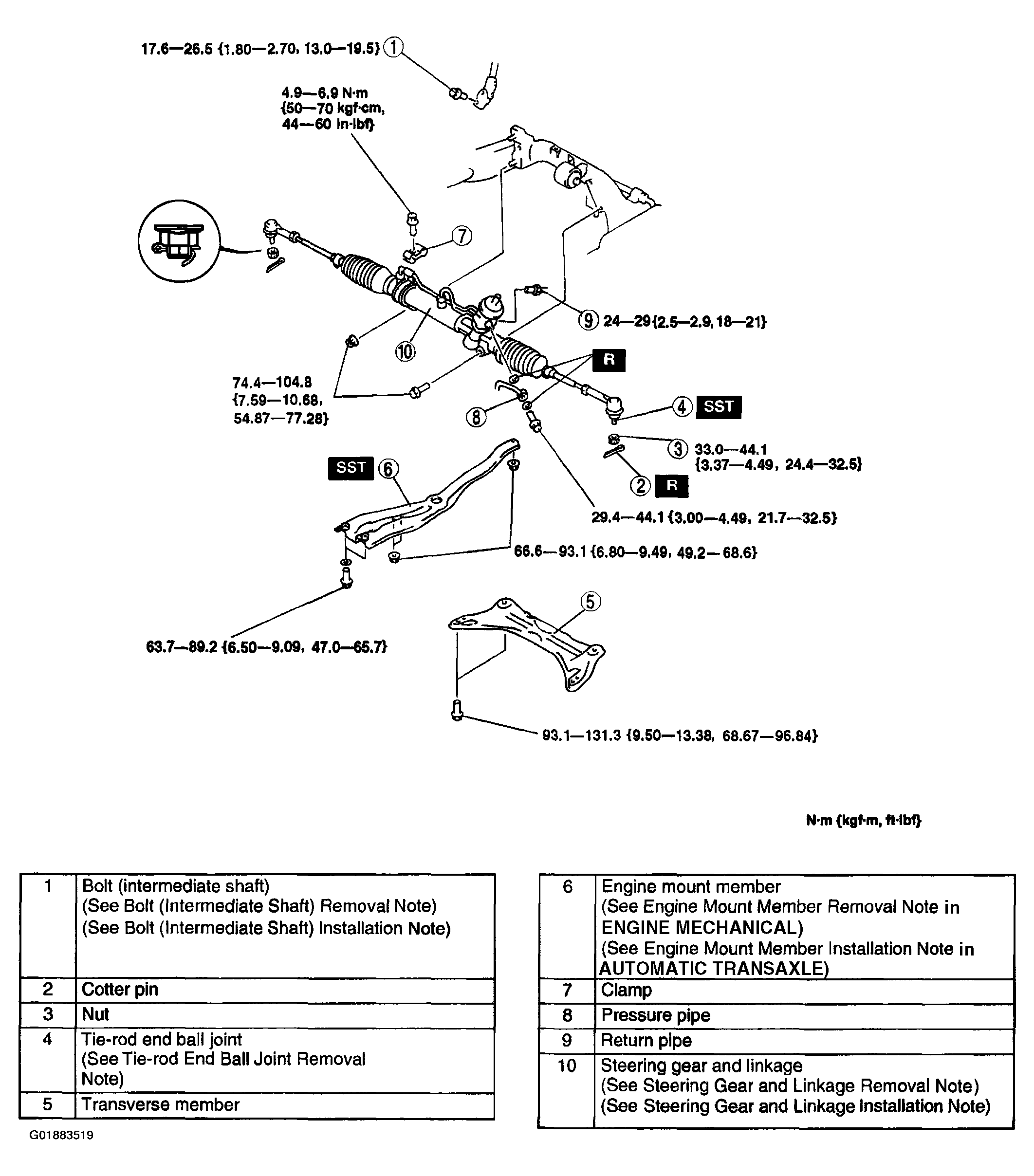

Steering Gear And Linkage Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
- Remove in the order indicated.
- Install in the reverse order of removal.
- After installation, inspect the toe-in. (See FRONT WHEEL ALIGNMENT .)
