Camber Adjustment

NOTE: Adjustable value is 30'.

Jack up the vehicle and remove the wheel and tire.
Remove the indicated bolt and replace it with the adjusting bolt and washer.
Adjust in the following procedures.
- In case of adjusting to + (positive) side, install the adjusting bolt and washer so that the projection of the washer faces inside (shock absorber side) as shown.
- In case of adjusting to - (negative) side, install the adjusting bolt and washer so that the projection of the washer faces outside (steering knuckle side) as shown.

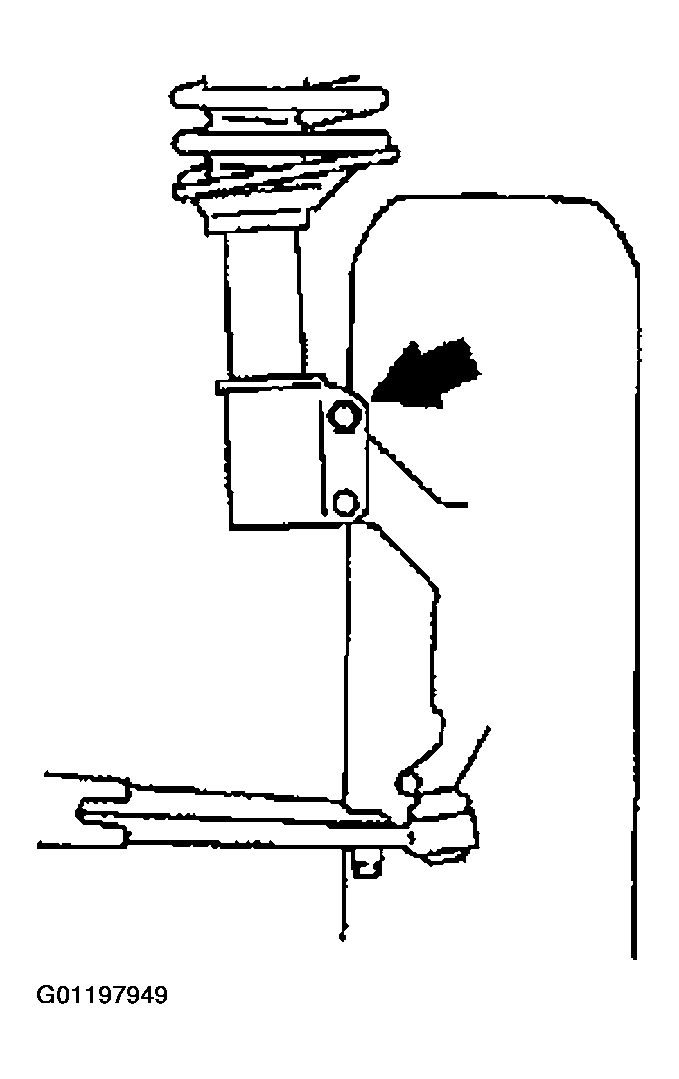

Fig 1: Adjusting Camber
Courtesy of MAZDA MOTORS CORP.

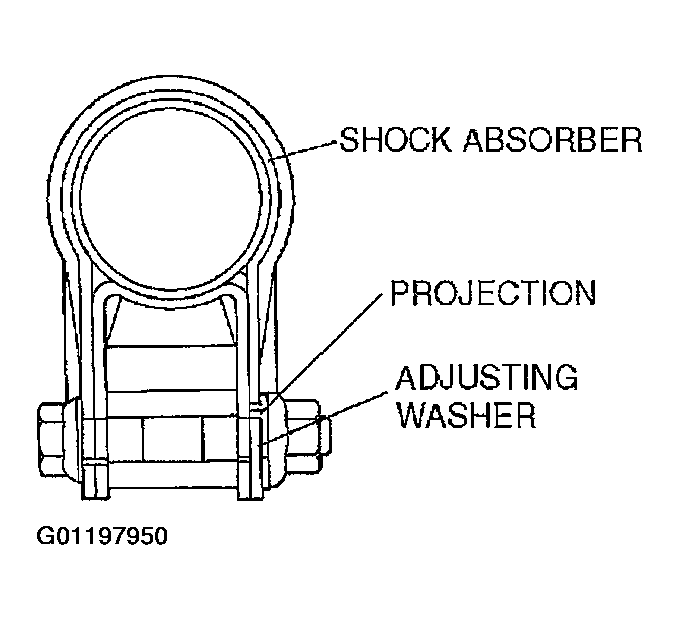

Fig 2: Adjusting Positive
Courtesy of MAZDA MOTORS CORP.

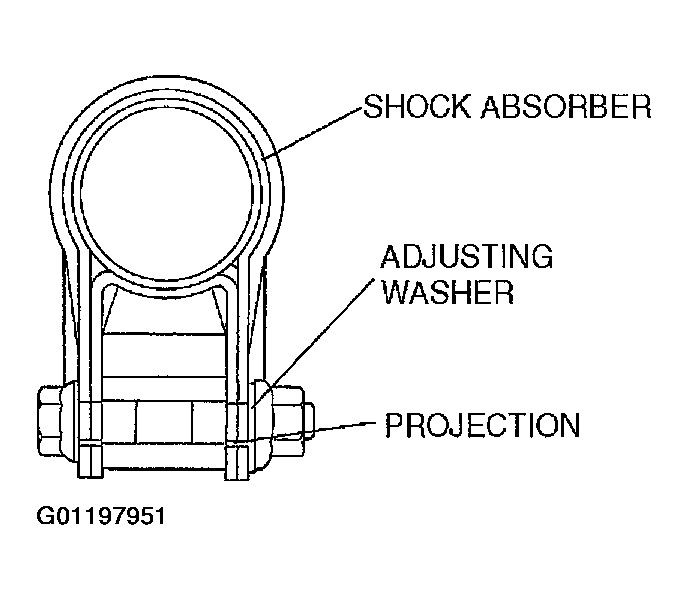

Fig 3: Adjusting Negative

G01197951

Courtesy of MAZDA MOTORS CORP.

Tighten the nut to the specified torque.
Tightening torque: 102.9-122.5 N.m {10.50-12.49 kgf.m, 75.90-90.35 ft.lbf}
Install the wheel and tire, then jack down the vehicle.
Shake the vehicle to settle the suspension.
Inspect the camber and readjust it if necessary.
