Automatic Transaxle Control System Wiring Diagram

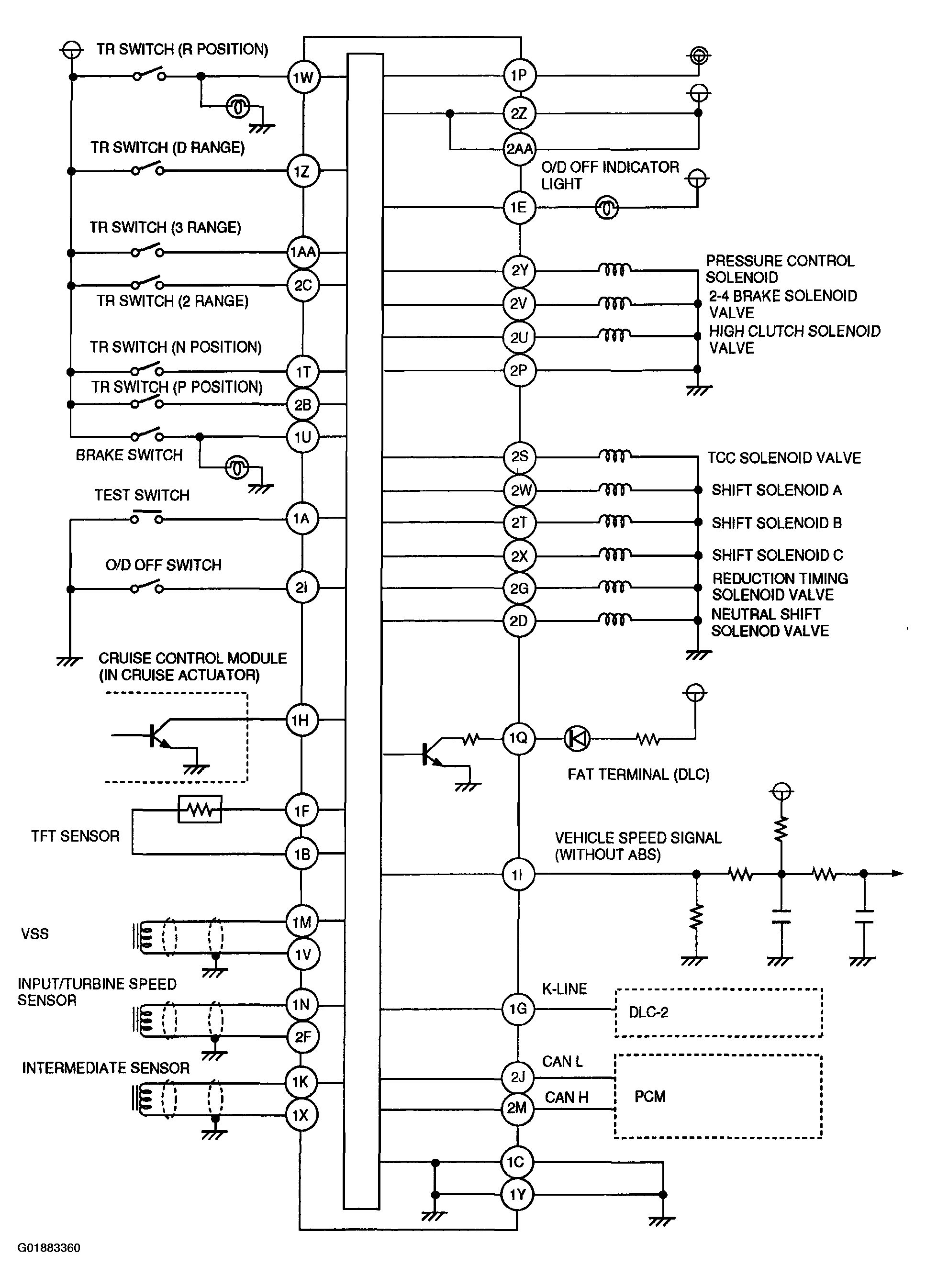

Fig 1: Automatic Transaxle Control System - Wiring Diagram
G01883360Courtesy of MAZDA MOTORS CORP.
