Spring Installation Note

  1. Install the selector lever to the manual shaft lever in such a way that the selector cable does not bear a load.
    NOTE:
    • Install the selector lever to the manual shaft lever with the spring side of the selector cable end facing the upward of the vehicle.

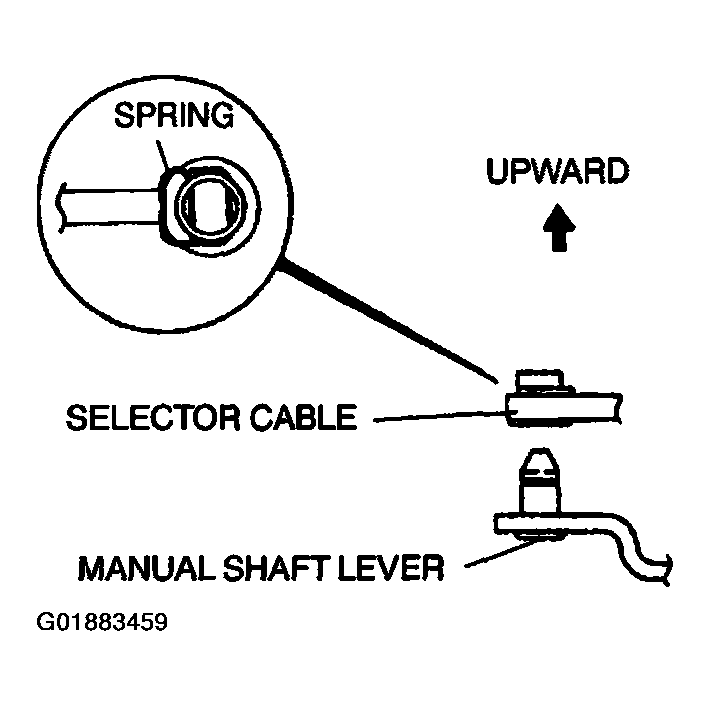

    Fig 1: Installing Selector Lever To Manual Shaft Lever
    G01883459Courtesy of MAZDA MOTORS CORP.
  2. Confirm that the end of the manual shaft lever sticks out of the end of the selector cable.
