Torque Converter Nuts Installation Note

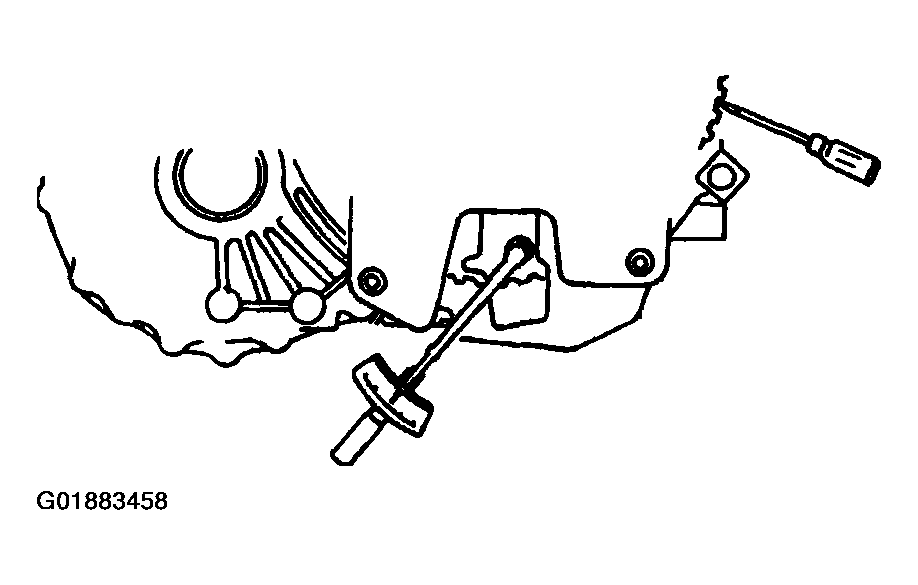

- Align the holes by turning torque converter.
- Insert a screwdriver from the starter installation hole, and lock the drive plate.CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.
- Tighten the torque converter mounting nuts.
Tightening torque
34-61 N.m {3.5-6.2 kgf.m, 25-45 ft.lbf}
