Drive Plate Mounting Bolts Installation Note

Set the SST or equivalent against the drive plate.
Tighten the drive plate mounting bolts in two or three steps in the order shown in Fig 1 .
Tightening torque

73-87 N.m {7.4-8.9 kgf.m, 54-64 ft.lbf}

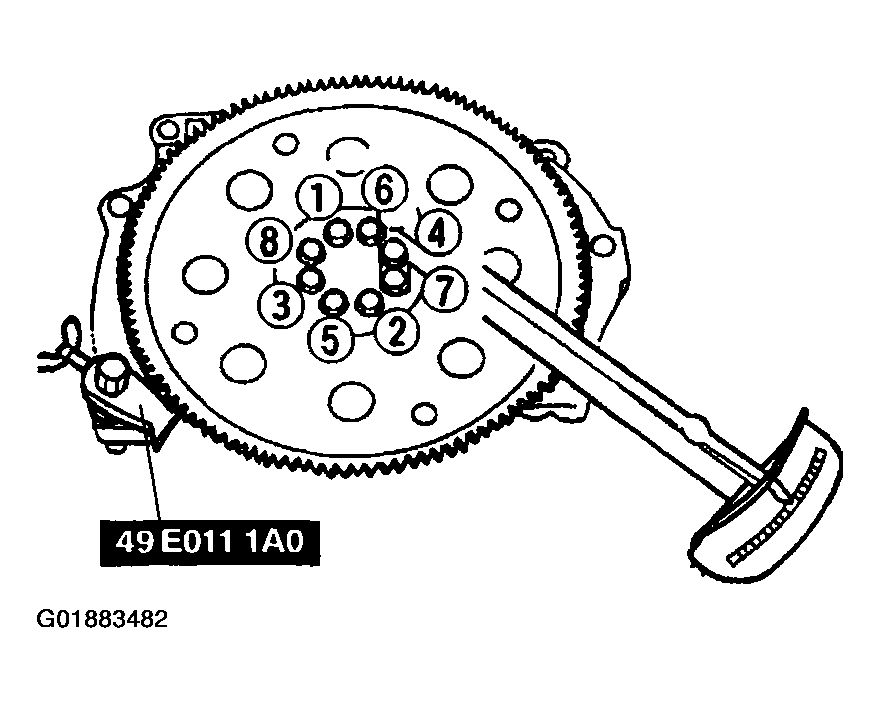

Fig 1: Securing Drive Plate Using SST & Tightening Bolts
Courtesy of MAZDA MOTORS CORP.
