Drive Plate Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .

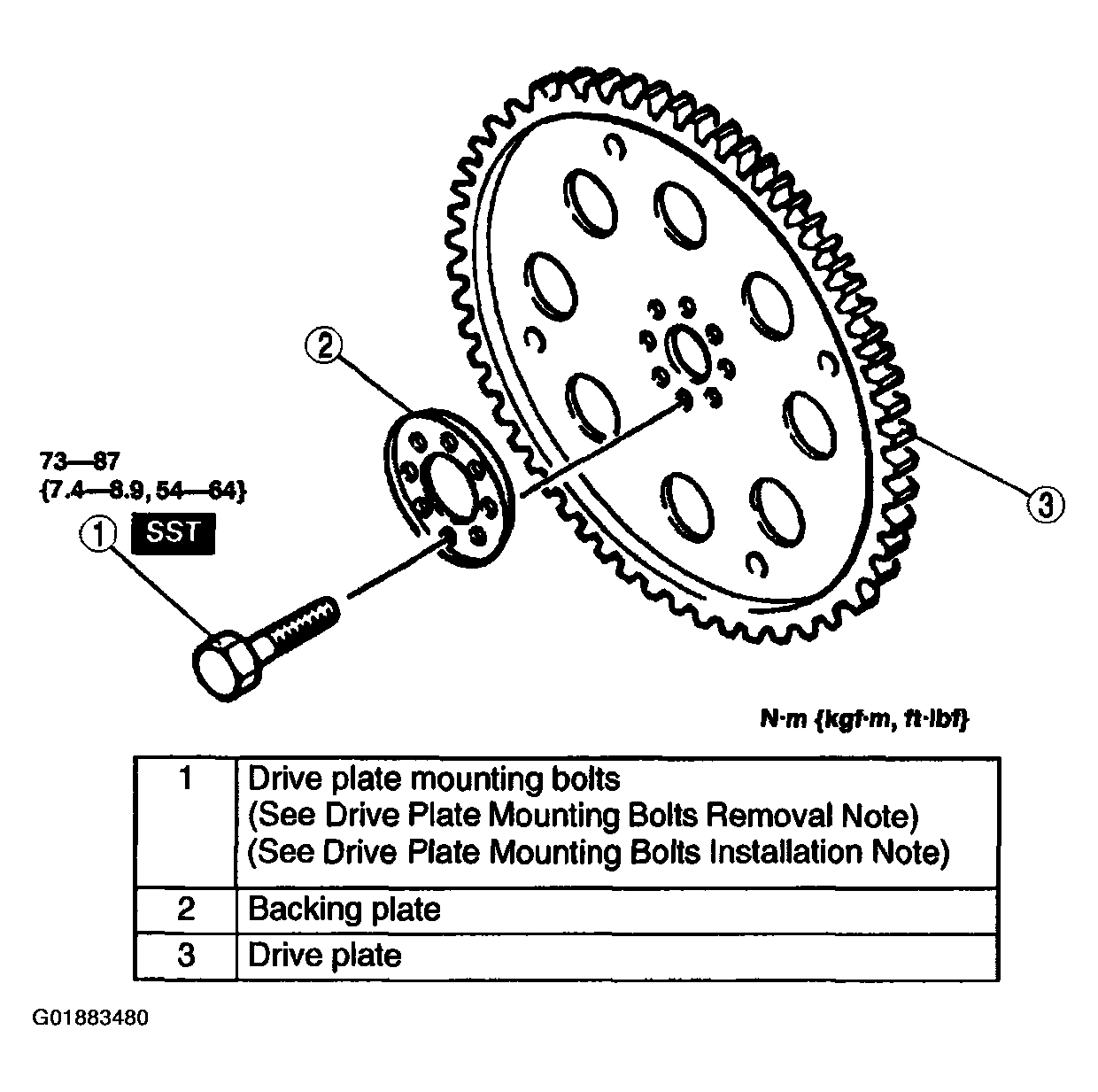

    Fig 1: Removing Drive Plate
    G01883480Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
