Automatic Transaxle Block Diagram

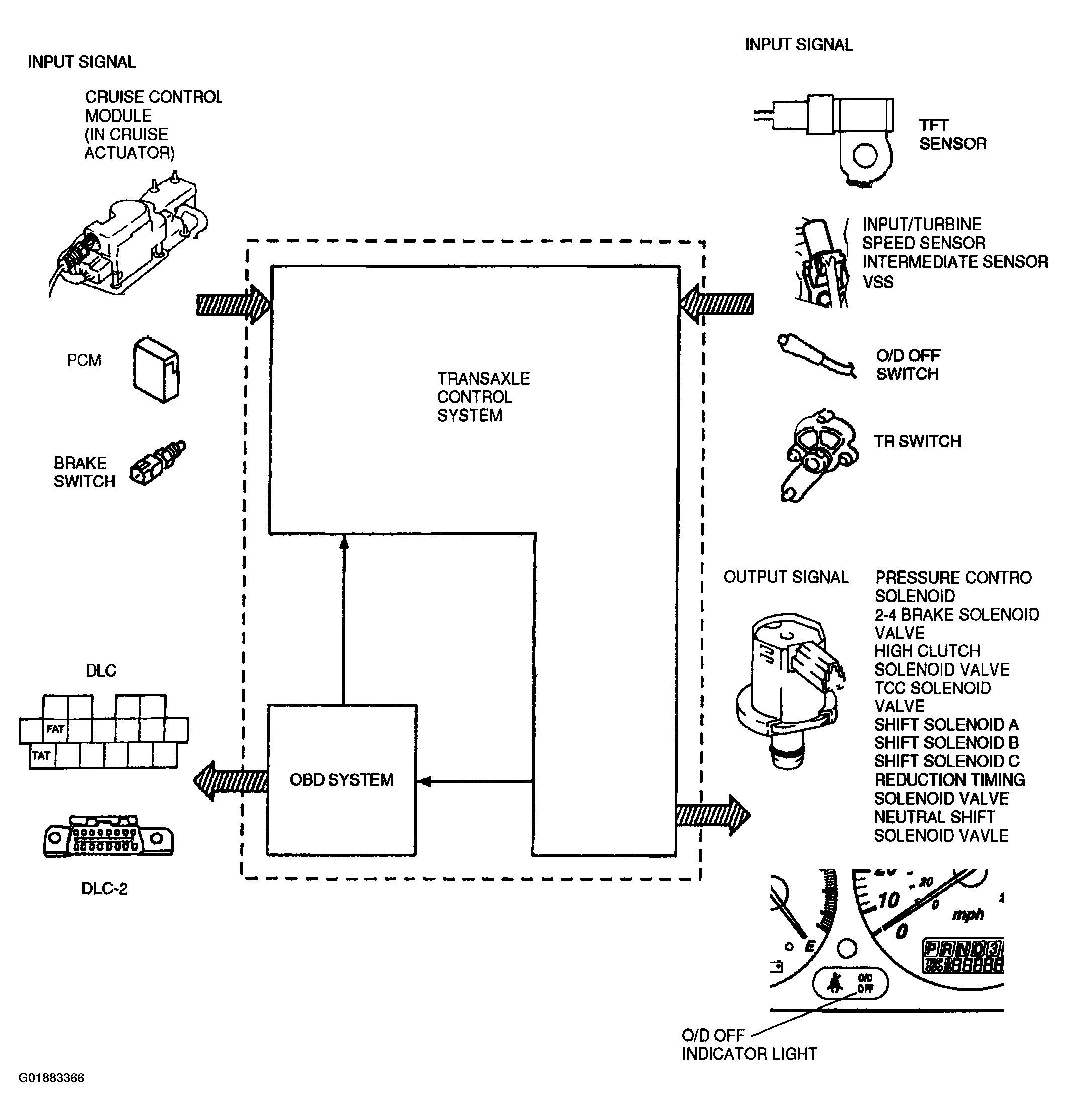

Fig 1: Automatic Transaxle - Block Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
