Component Description (Electronic Control)

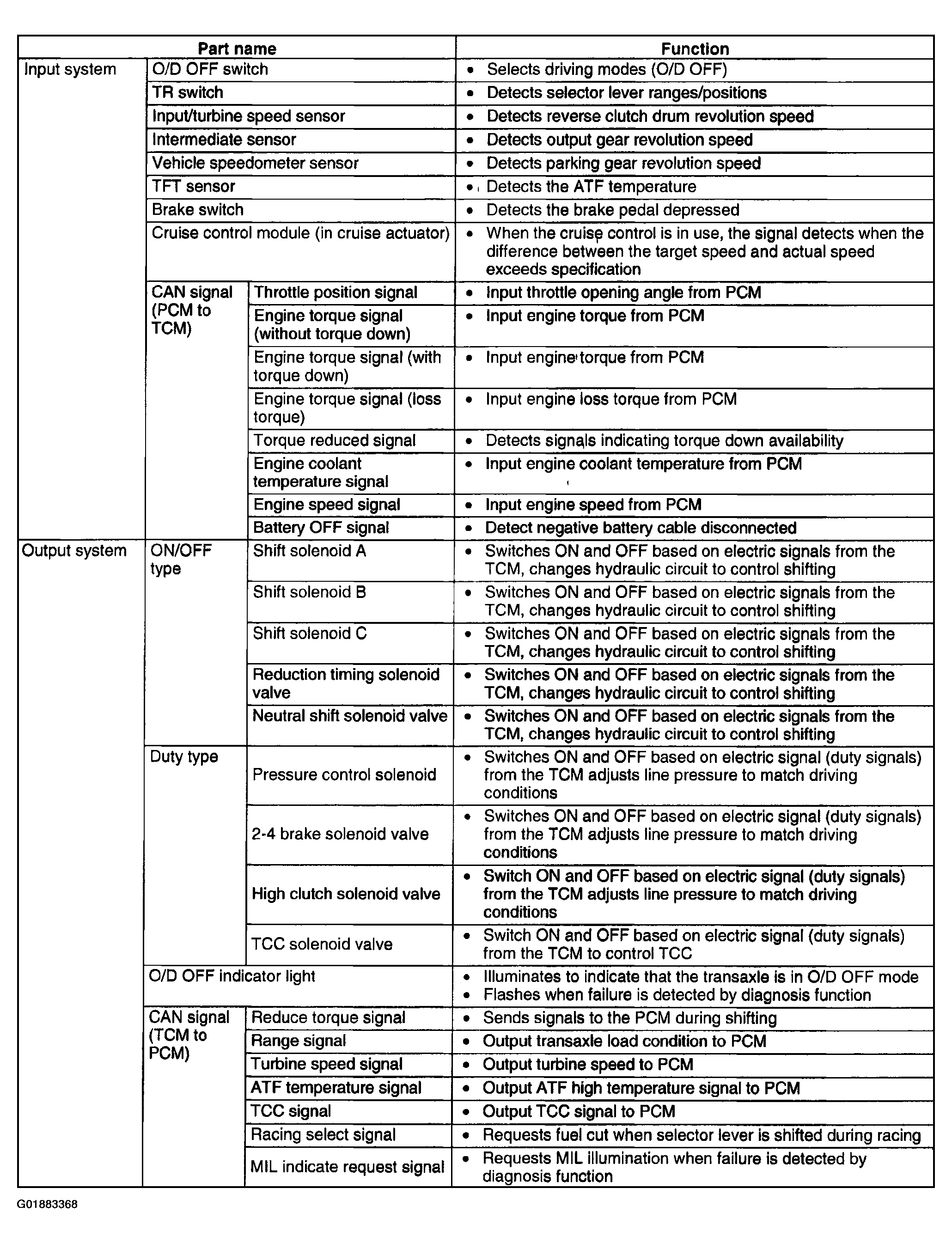

Fig 1: Electronic Control Component Description Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
