Electronic Control Item and Control

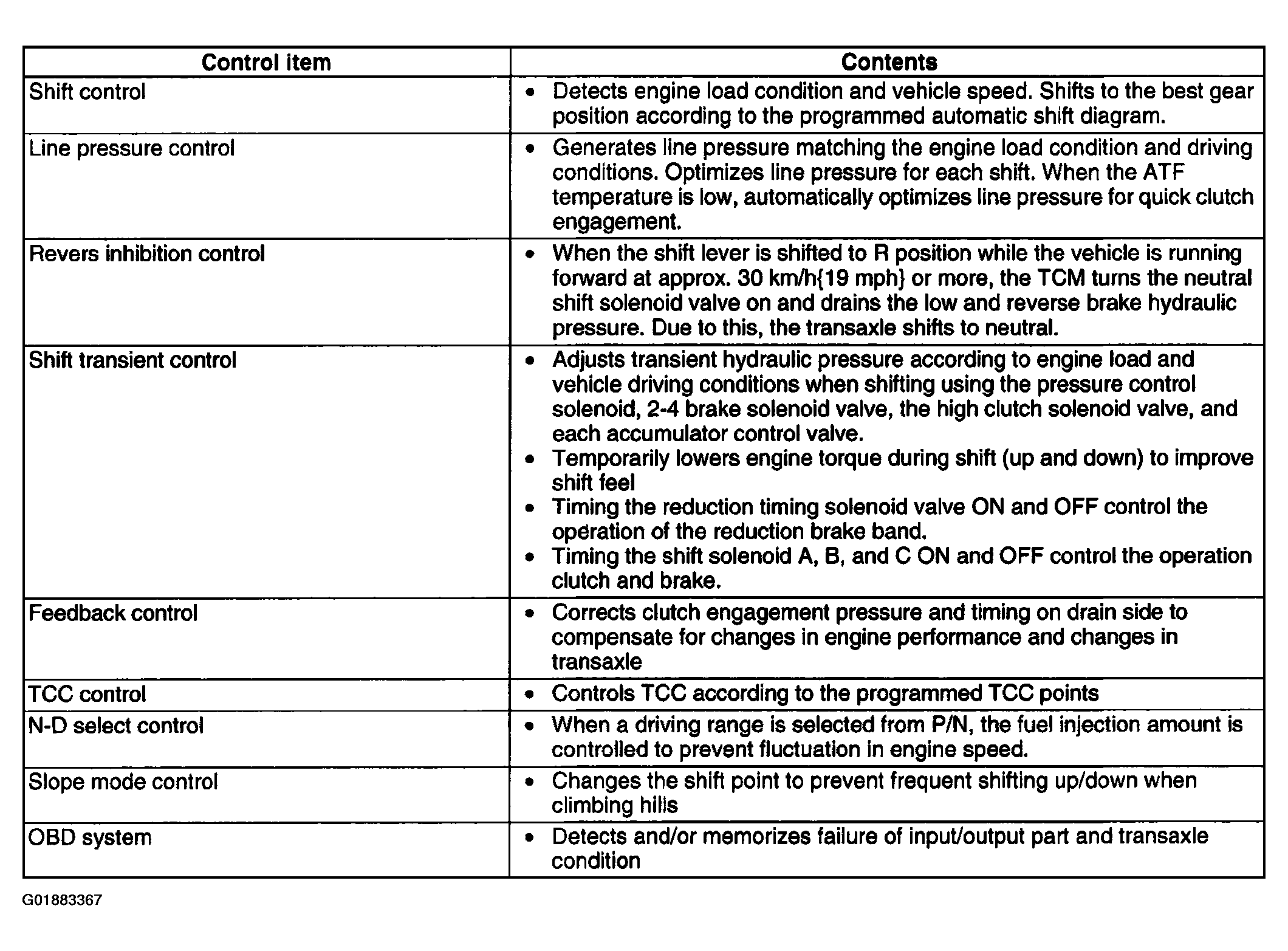

Fig 1: Electronic Control Item And Control Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
