Inspection of Continuity

  1. Disconnect the O/D OFF switch connector.
  2. Inspect continuity at the O/D OFF switch.
    • If the switch is okay, inspect the wiring harness. (O/D OFF switch-PCM, O/D OFF switch-Body ground)
    • If not as specified, replace the selector lever component. (See SELECTOR LEVER REMOVAL/INSTALLATION .)

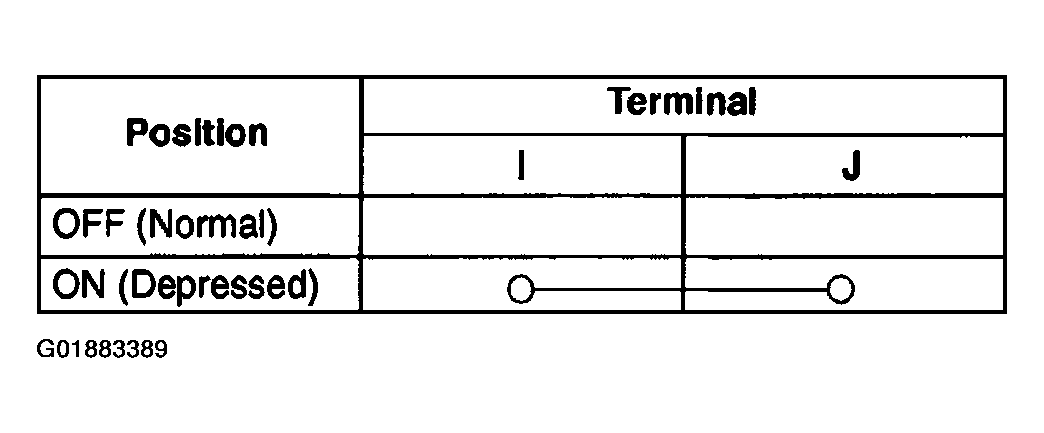

      Fig 1: O/D Off Switch Continuity Chart
      G01883389Courtesy of MAZDA MOTORS CORP.

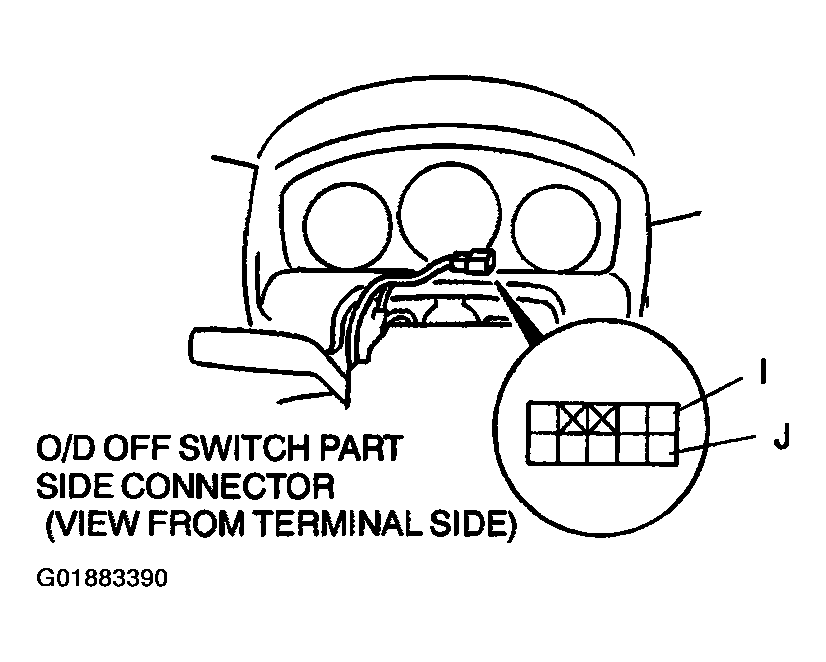

      Fig 2: Identifying O/D Off Switch & Connector View (Terminal Side)
      G01883390Courtesy of MAZDA MOTORS CORP.
