Typical Shift Diagram

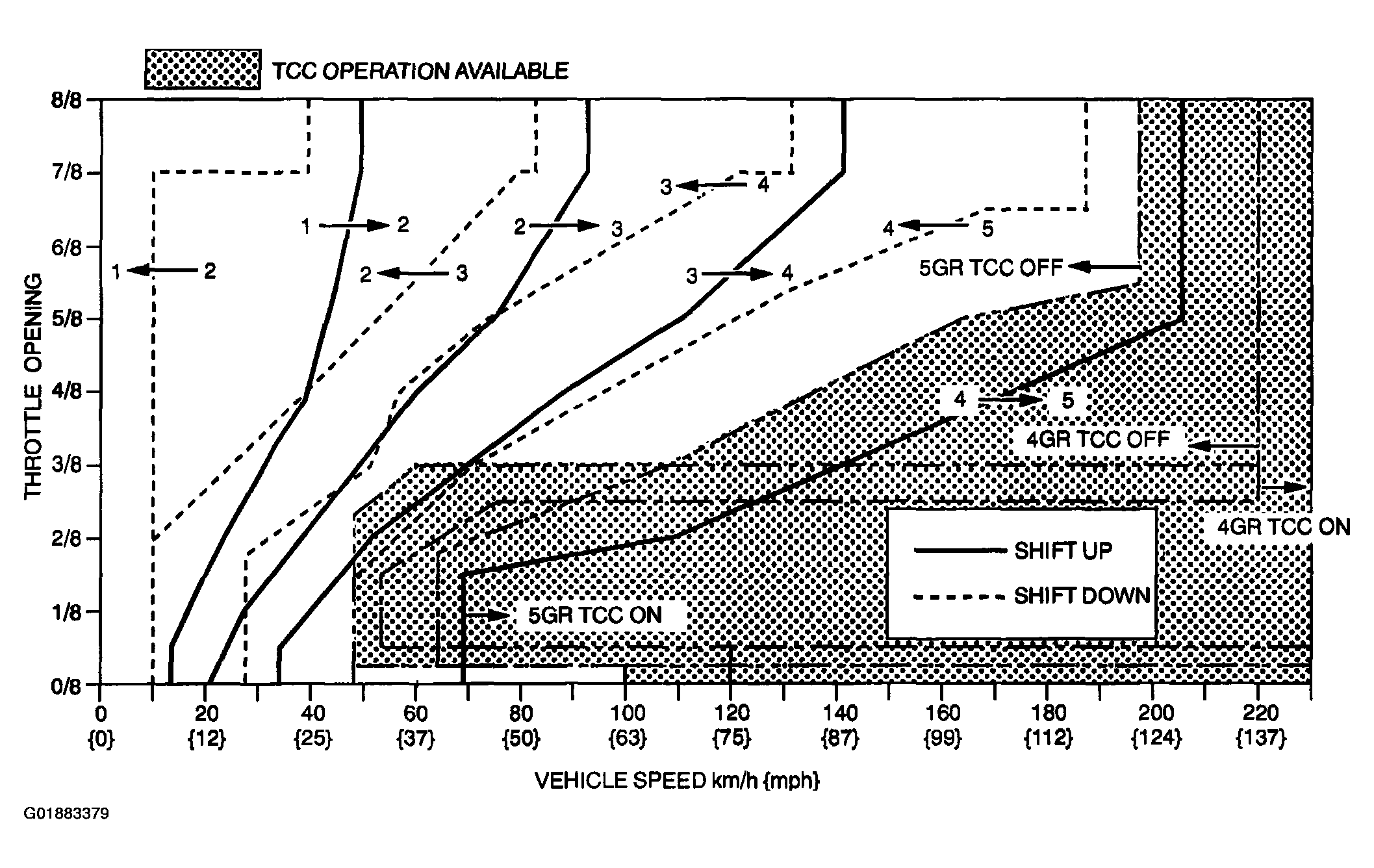

Fig 1: Shift Diagram Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
