TCM Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the floor mat of passenger seat.
  3. Remove in the order indicated in Fig 1 .

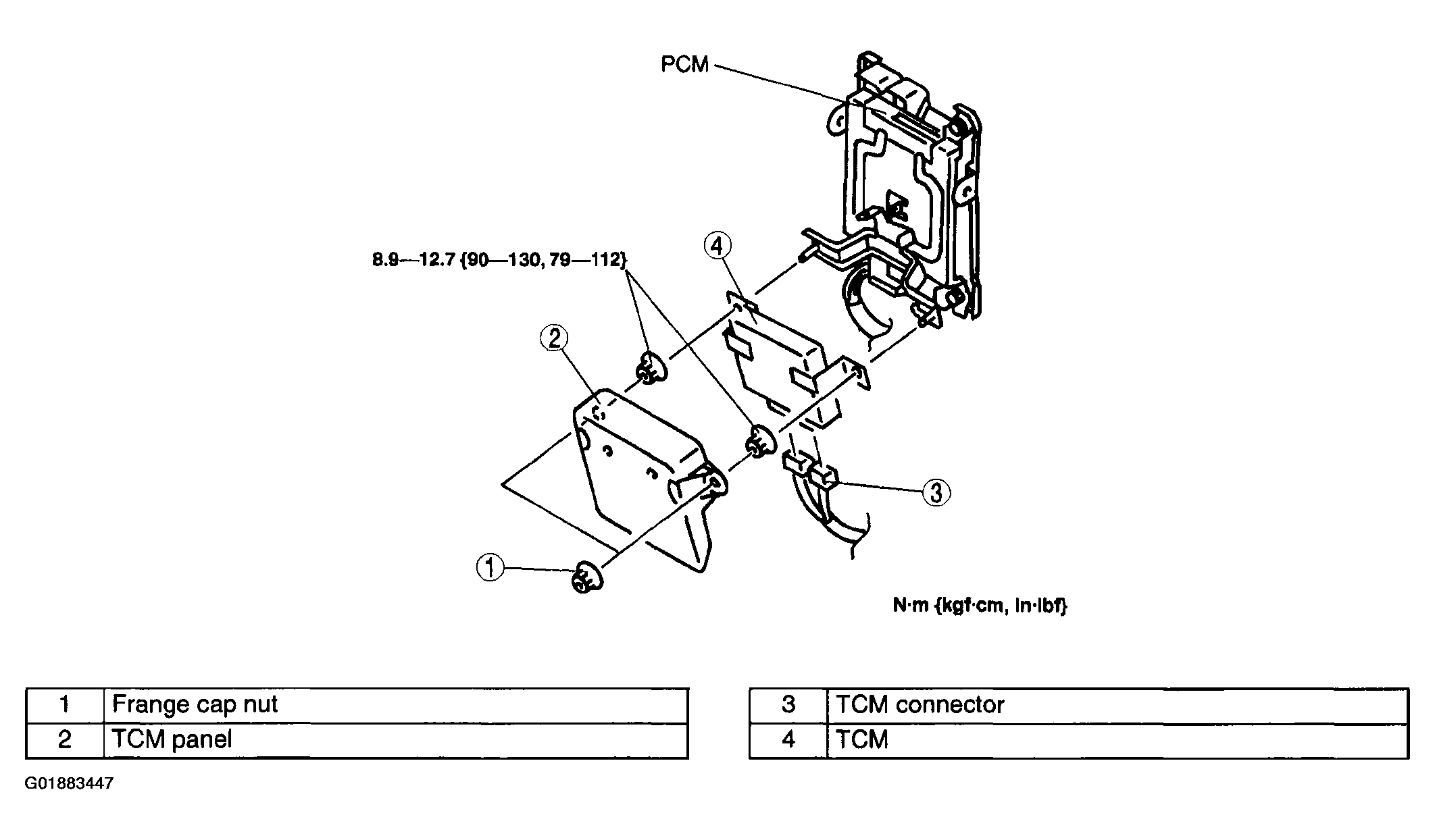

    Fig 1: Removing TCM
    G01883447Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Install the floor mat of passenger seat.
  6. Connect the negative battery cable.
