Transmission/Transaxle SST: Example

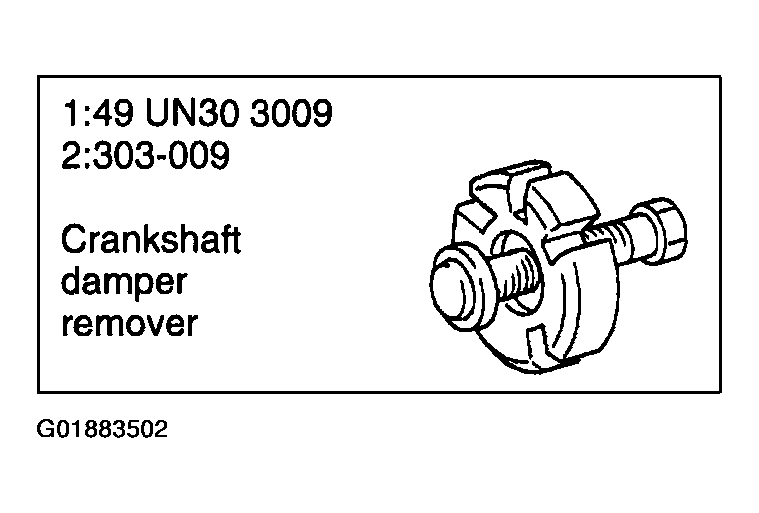

Fig 1: Identifying Transmission/Transaxle Special Service Tools (1 Of 2)
G01883502Courtesy of MAZDA MOTORS CORP.

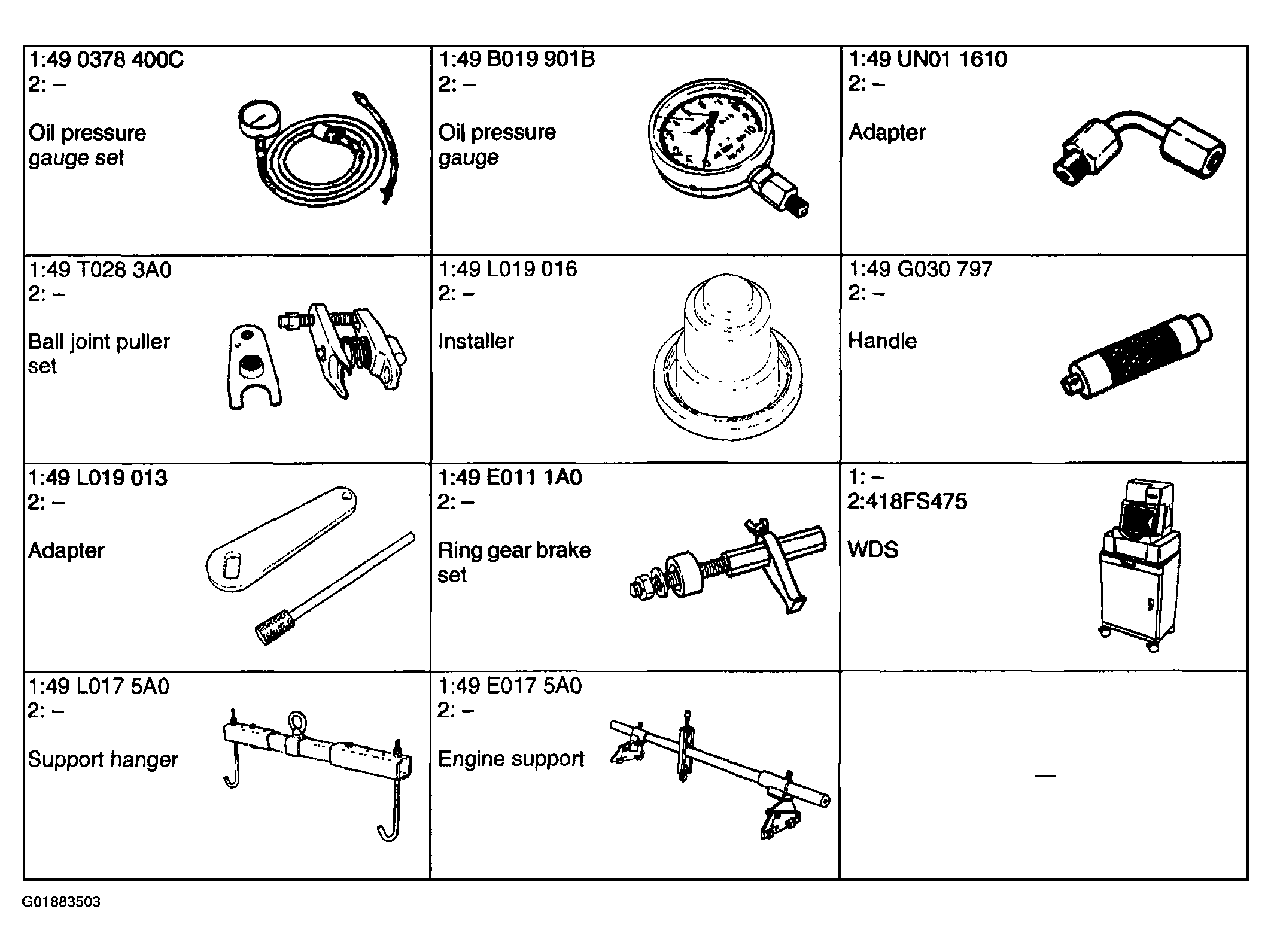

Fig 2: Identifying Transmission/Transaxle Special Service Tools (2 Of 2)
G01883503Courtesy of MAZDA MOTORS CORP.
