Manual Outside Mirror Removal/Installation

  1. Remove the inner garnish.
  2. Remove the nuts, and then remove the manual outside mirror.

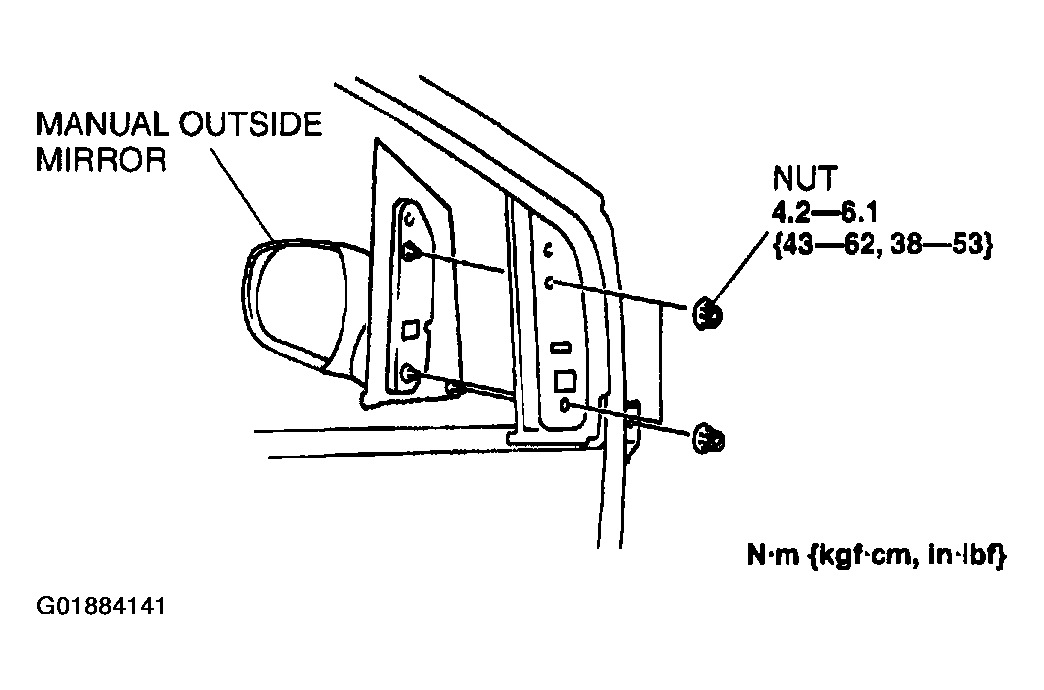

    Fig 1: Removing Nuts and Manual Outside Mirror
    G01884141Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
