Automatic Transaxle Fluid (ATF) Replacement
WARNING:
- When the transaxle and ATF are hot, they can badly burn you. Turn off the engine and wait until they are cool before changing the ATF.
- Remove the oil dipstick.

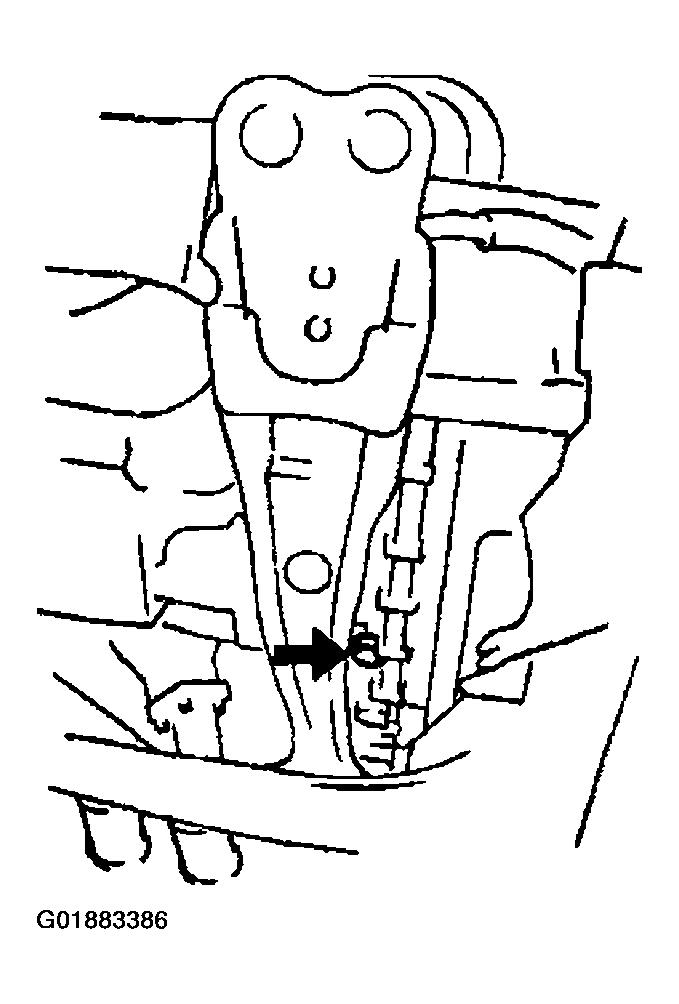

- Remove the oil drain plug and washer.
- Drain the ATF into a container.
- Install a new washer and the drain plug.
Tightening torque
39-54 N.m {3.9-5.6 kgf-m, 29-40 ft.lbf}
- Add the specified type of ATF through the oil filler tube, until ATF level reaches lower notch of dipstick.
ATF type
M-III or equivalent
- Verify that the ATF level is in the HOT (65 °C {149 °F}
) range.
- Add ATF to the specified level as necessary.
