Transaxle Fluid Temperature (TFT) Sensor Inspection

Disconnect the coupler component.
Remove the oil dipstick.
Insert the thermistor probe into the filler tube.

Fig 1: Measuring Thermometer Length For Checking Transaxle Fluid Temperature Sensor
Courtesy of MAZDA MOTORS CORP.
Start the engine.
Measure resistance between the terminals G and F.
- If not as specified, replace the TFT sensor. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSAXLE DISASSEMBLY and AUTOMATIC TRANSAXLE ASSEMBLY .)

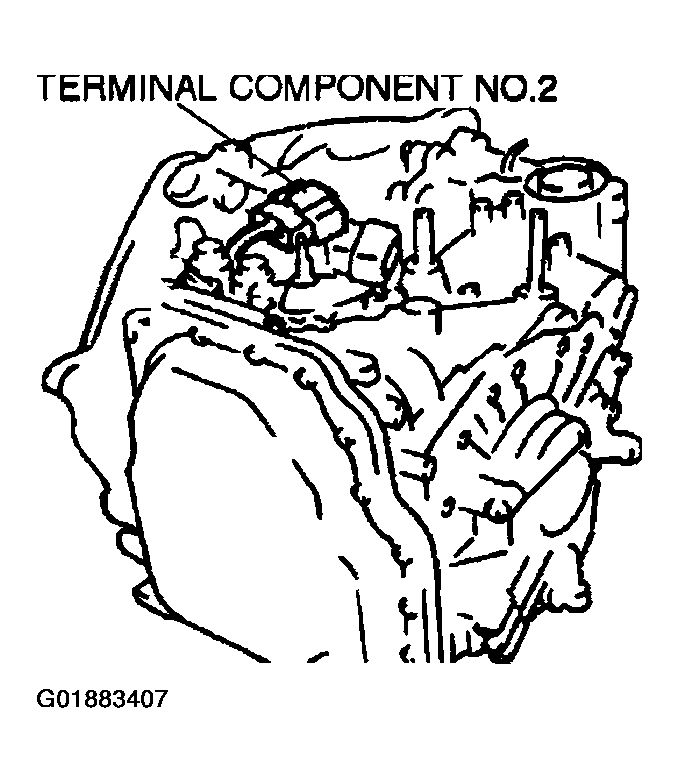

  Fig 2: Locating Terminal Component No.2 Connector
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Identifying Terminal Component No.2 Connector Terminals
  Courtesy of MAZDA MOTORS CORP.

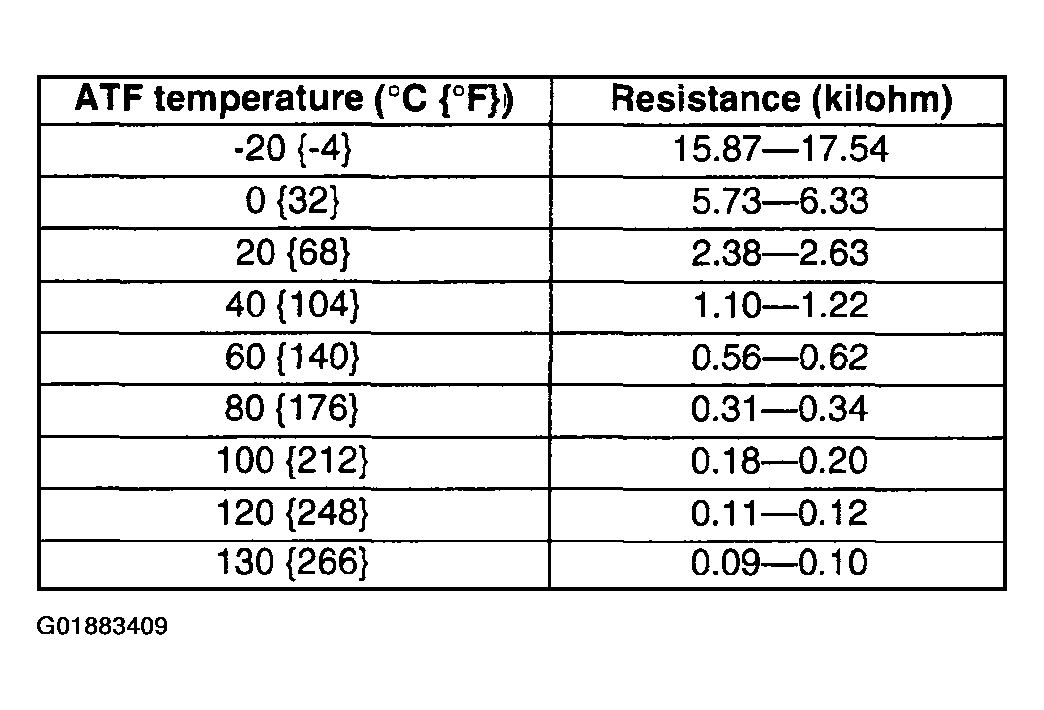

  Fig 4: ATF Temperature Resistance Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 5: ATF Temperature Resistance Graph
  Courtesy of MAZDA MOTORS CORP.
Connect the coupler component.
