Front Door Glass And Guide Removal/Installation

Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front beltline molding is 130 mm (5.12 in).
Disconnect the negative battery cable.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the inner handle.

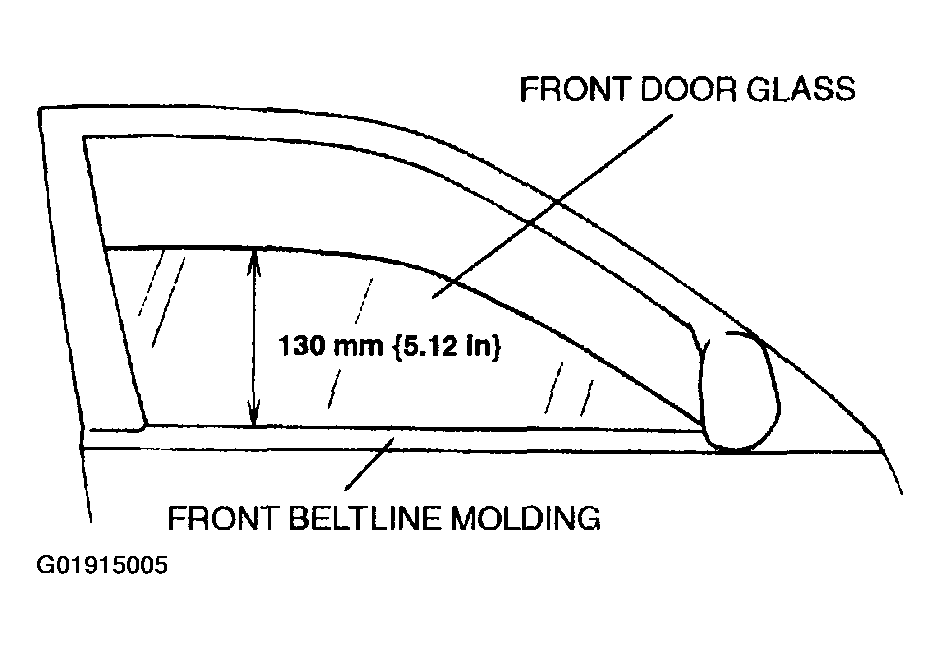

Fig 1: Identifying Distance Between Top Of Front Door Glass At Rear End To Upper Part Of Front Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the illustration.

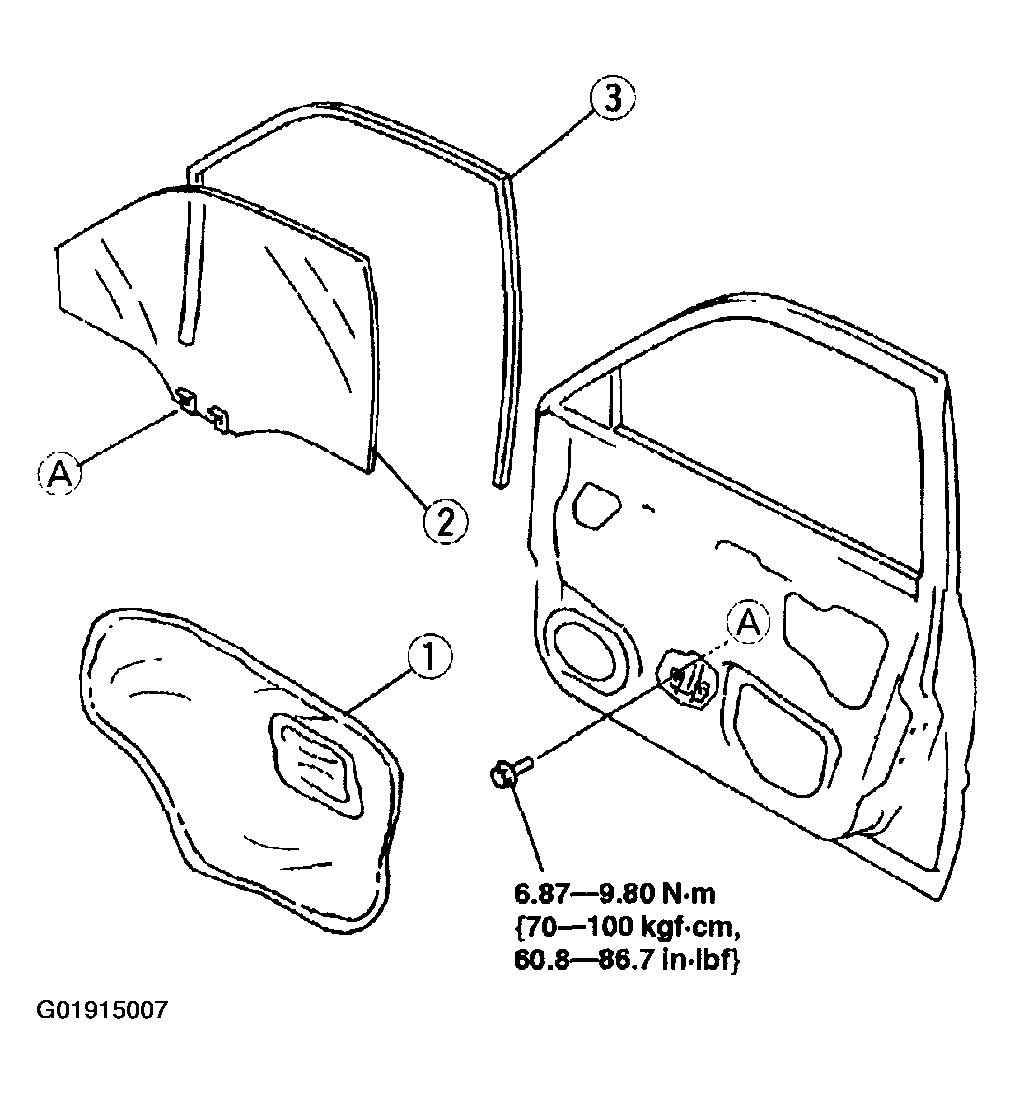

Fig 2: Identifying Removing Sequence Of Front Door Glass And Guide (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

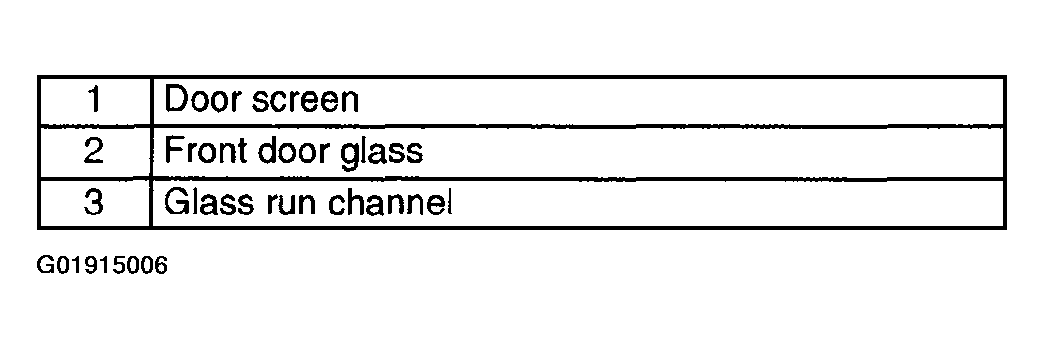

Fig 3: Identifying Removing Sequence Of Front Door Glass And Guide (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
