Climate Control Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration.

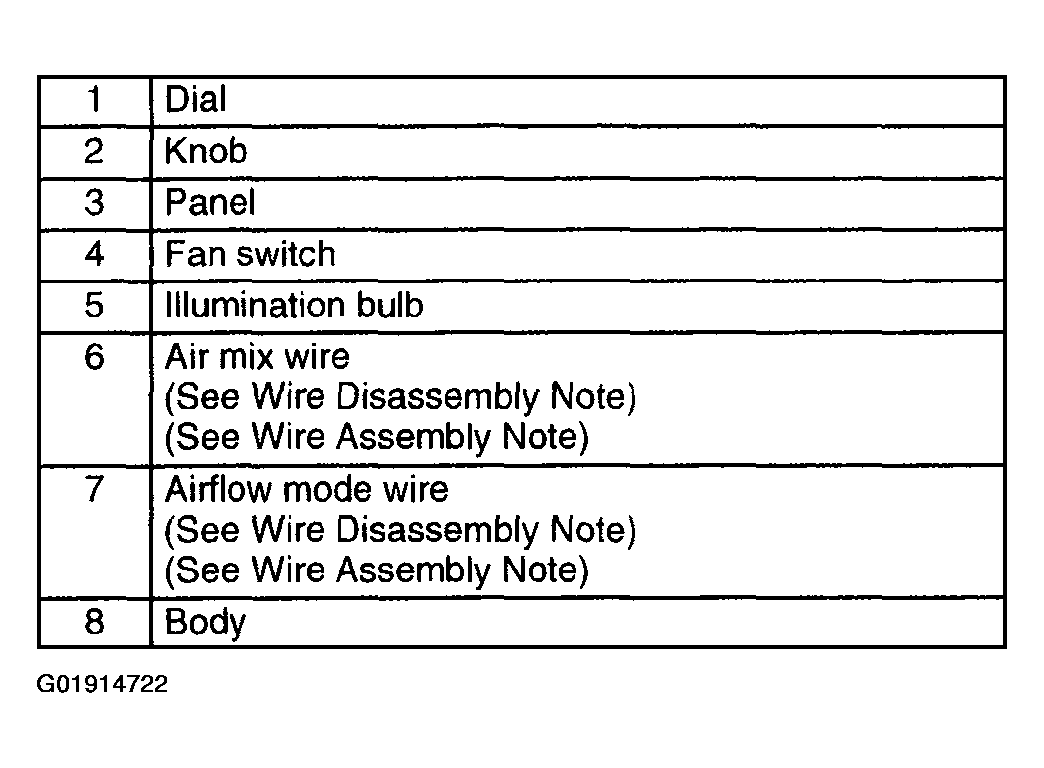

    Fig 1: Climate Control Unit Disassembling Order Chart
    G01914722Courtesy of MAZDA MOTORS CORP.

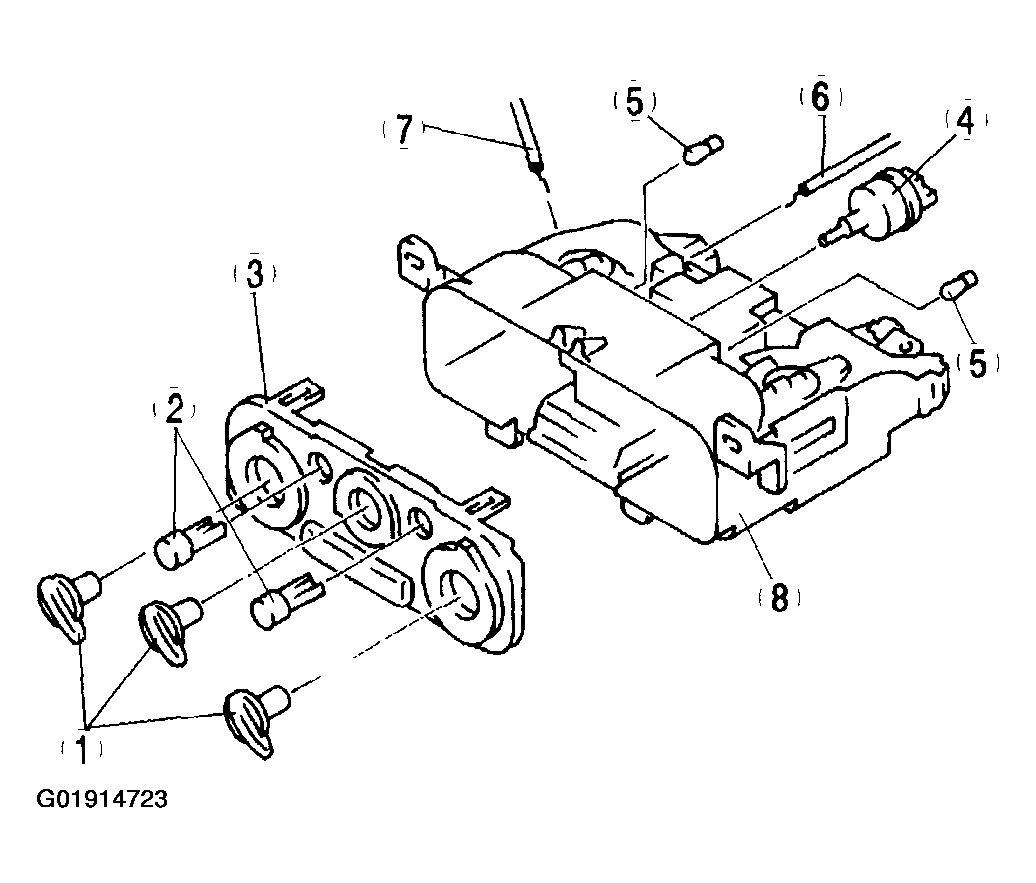

    Fig 2: Disassembling Climate Control Unit Components
    G01914723Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
