Power Outside Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Partially peel off the door screen.
  4. Disconnect the connector.
  5. Remove the nuts, and then remove the power outside mirror.

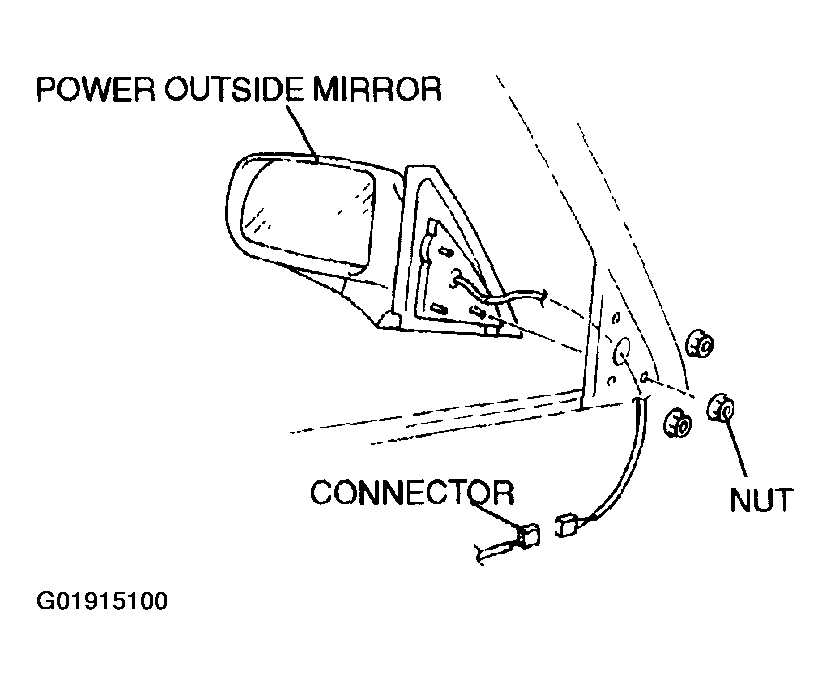

    Fig 1: Removing Power Outside Mirror
    G01915100Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
