Power Window Main Switch Inspection

Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
When inspecting the passenger's side and the rear, turn the power-cut switch to ON.
Inspect for continuity between the power window main switch terminals using an ohmmeter.
- If not as specified, replace the power window main switch.

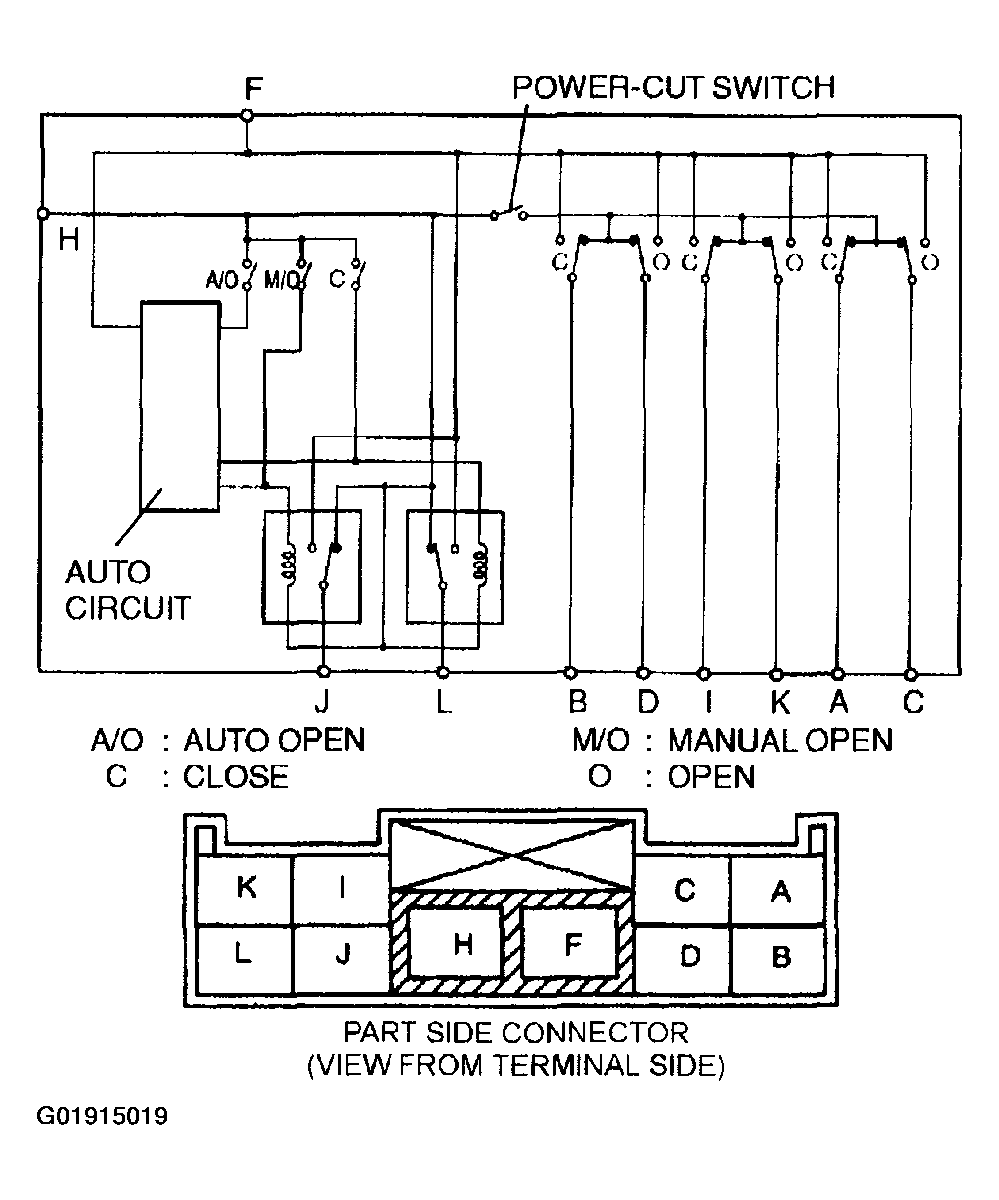

Fig 1: Inspecting For Continuity Between Power Window Main Switch Terminals
Courtesy of MAZDA MOTORS CORP.

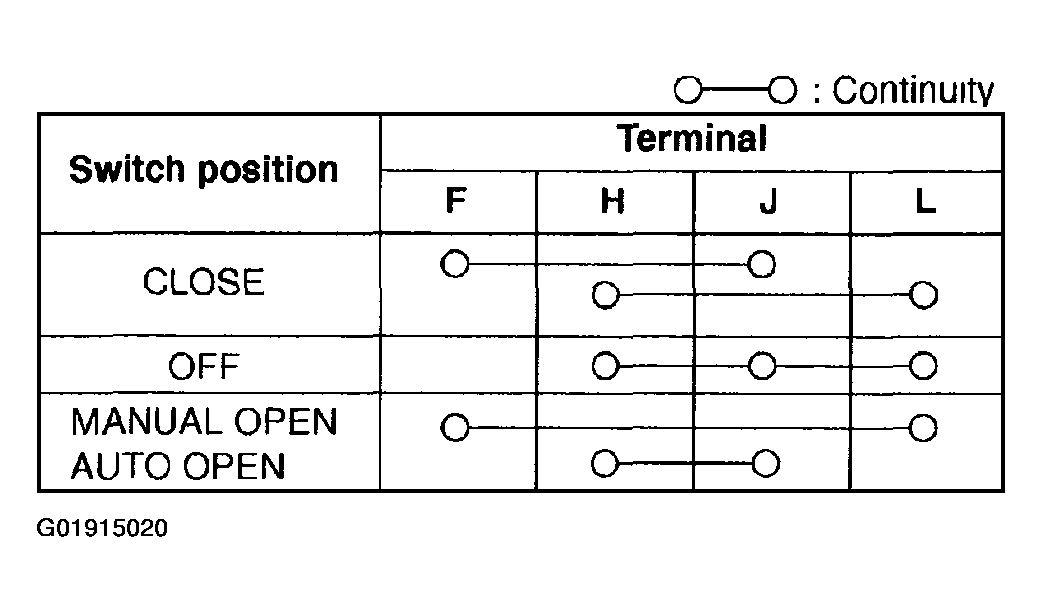

Fig 2: Switch Position - Power Window Main Switch Terminals - Driver's Side
Courtesy of MAZDA MOTORS CORP.

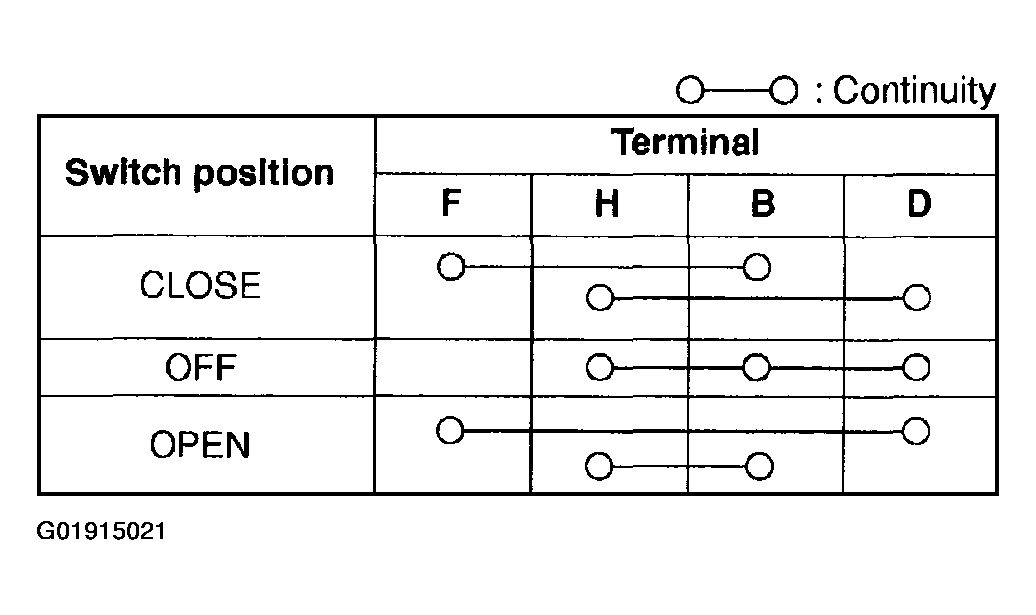

Fig 3: Switch Position - Power Window Main Switch Terminals - Passenger's Side
Courtesy of MAZDA MOTORS CORP.

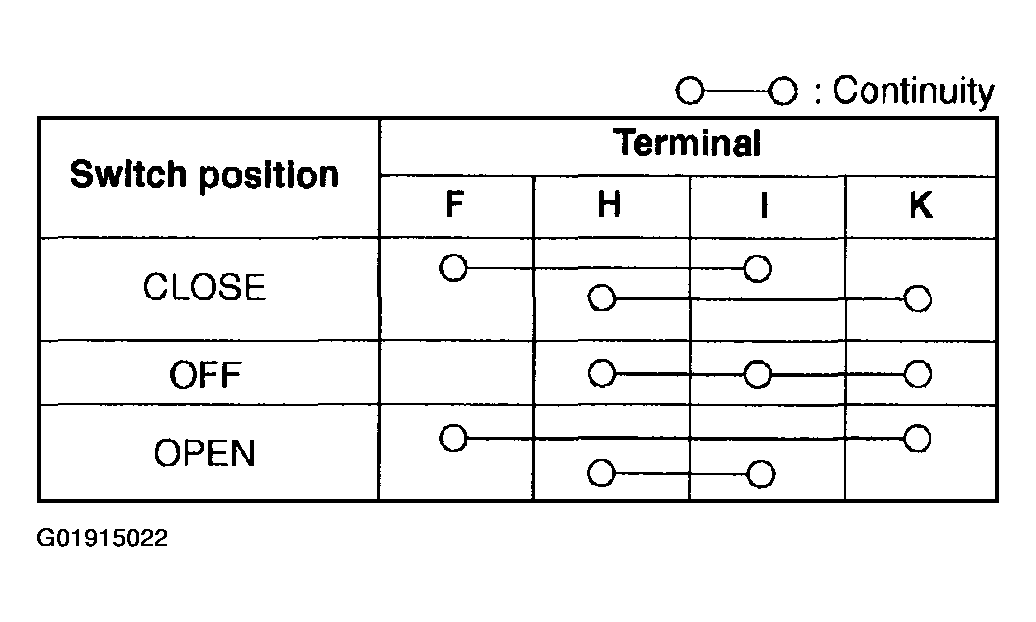

Fig 4: Switch Position - Power Window Main Switch Terminals - Rear Left
Courtesy of MAZDA MOTORS CORP.

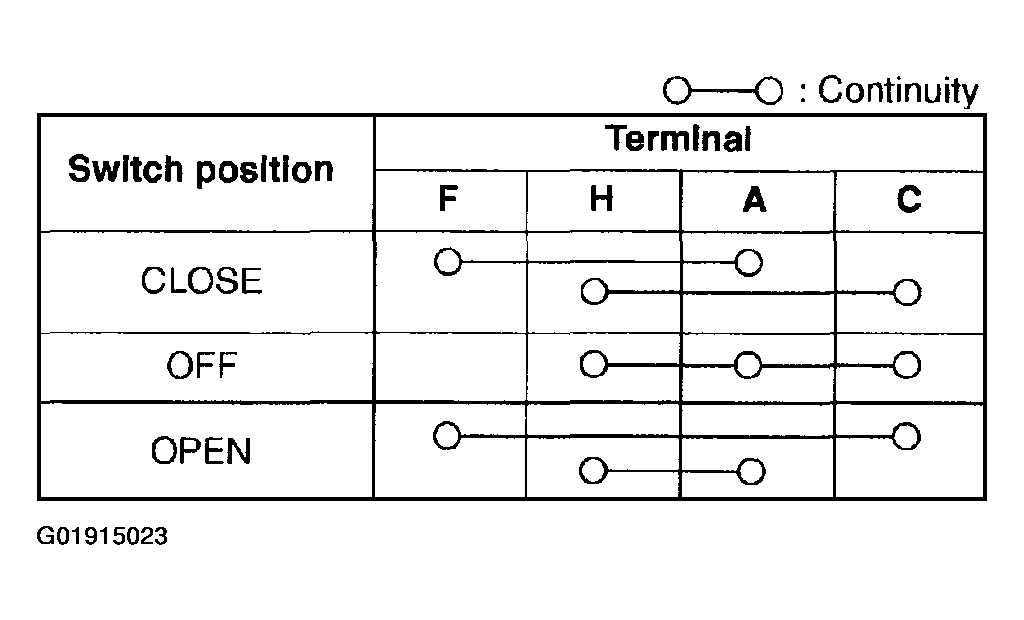

Fig 5: Switch Position - Power Window Main Switch Terminals - Rear Right
Courtesy of MAZDA MOTORS CORP.

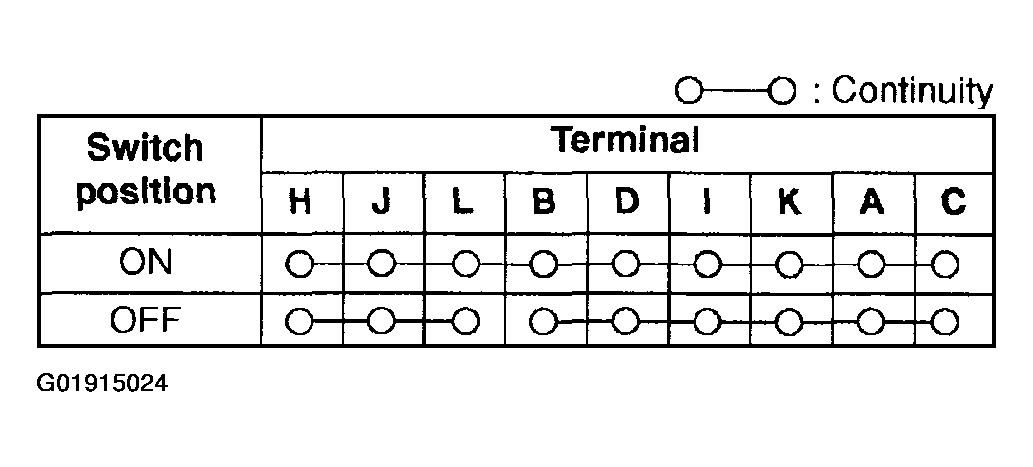

Fig 6: Switch Position - Power Window Main Switch Terminals - Power-Cut Switch
Courtesy of MAZDA MOTORS CORP.
