Power Window Motor Inspection

Remove the power window motor. (See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .) (See REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .)
Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
- If not as specified, replace the power window motor.

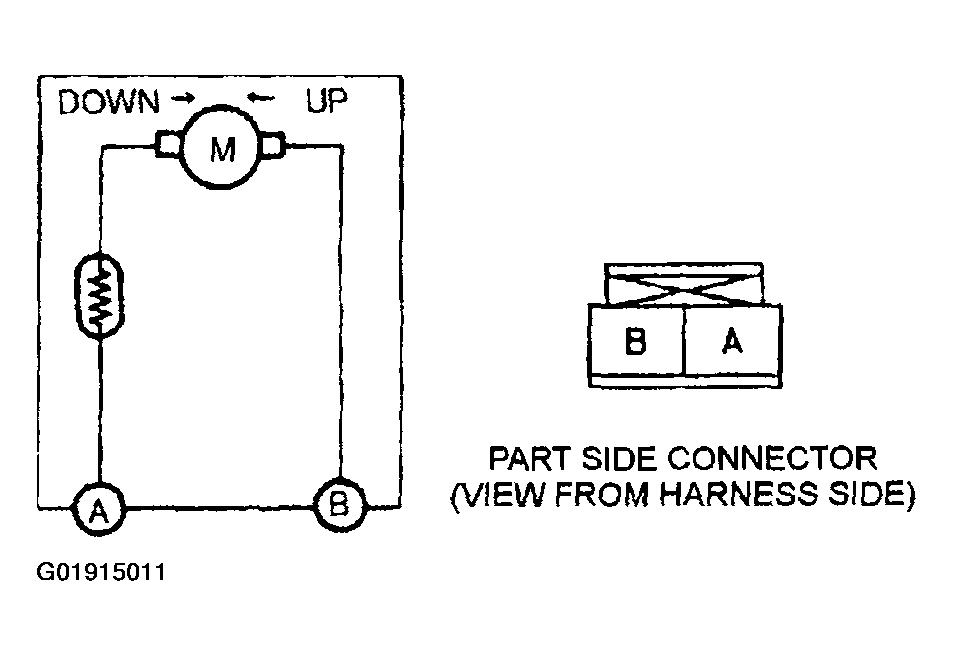

Fig 1: Inspecting Power Window Motor (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

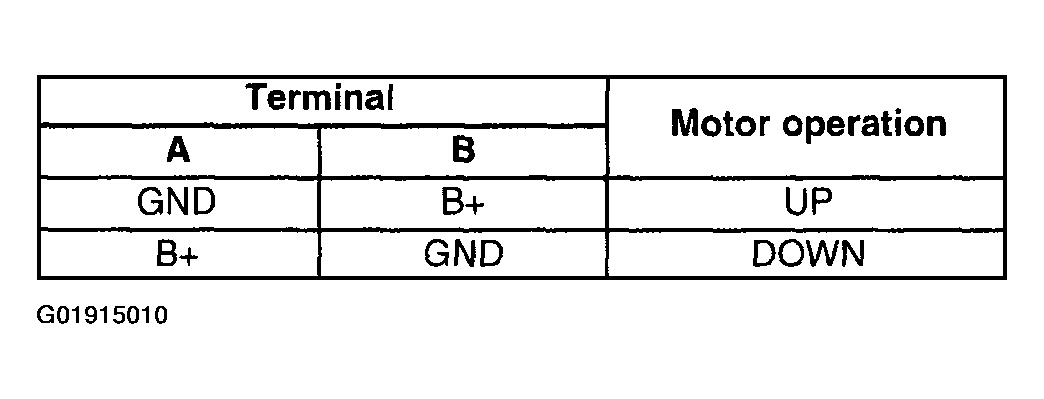

Fig 2: Inspecting Power Window Motor (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
