Rear Power Window Regulator Disassembly/Assembly: Notes

Disassemble in the order indicated in the illustration.

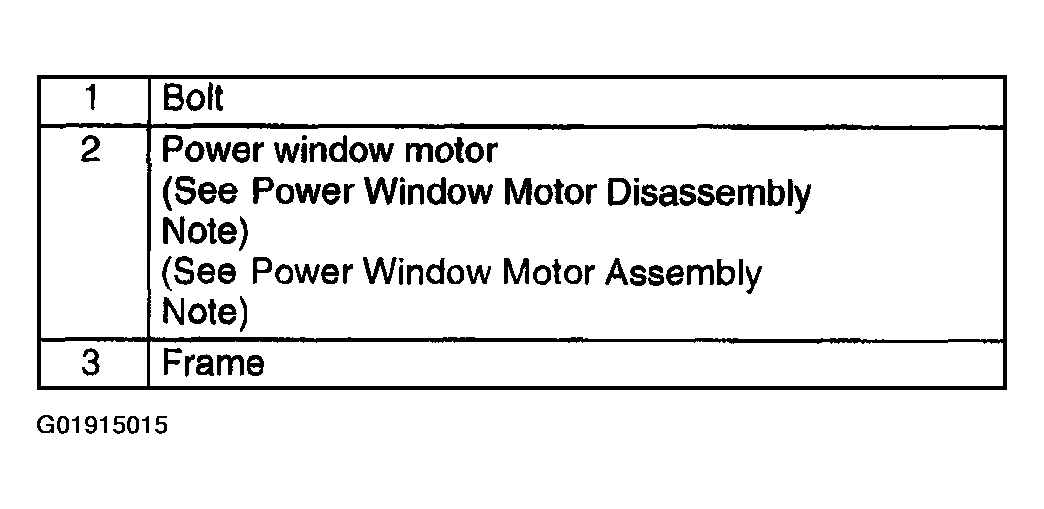

Fig 1: Identifying Components Of Rear Power Window Regulator Disassembly/Assembly (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

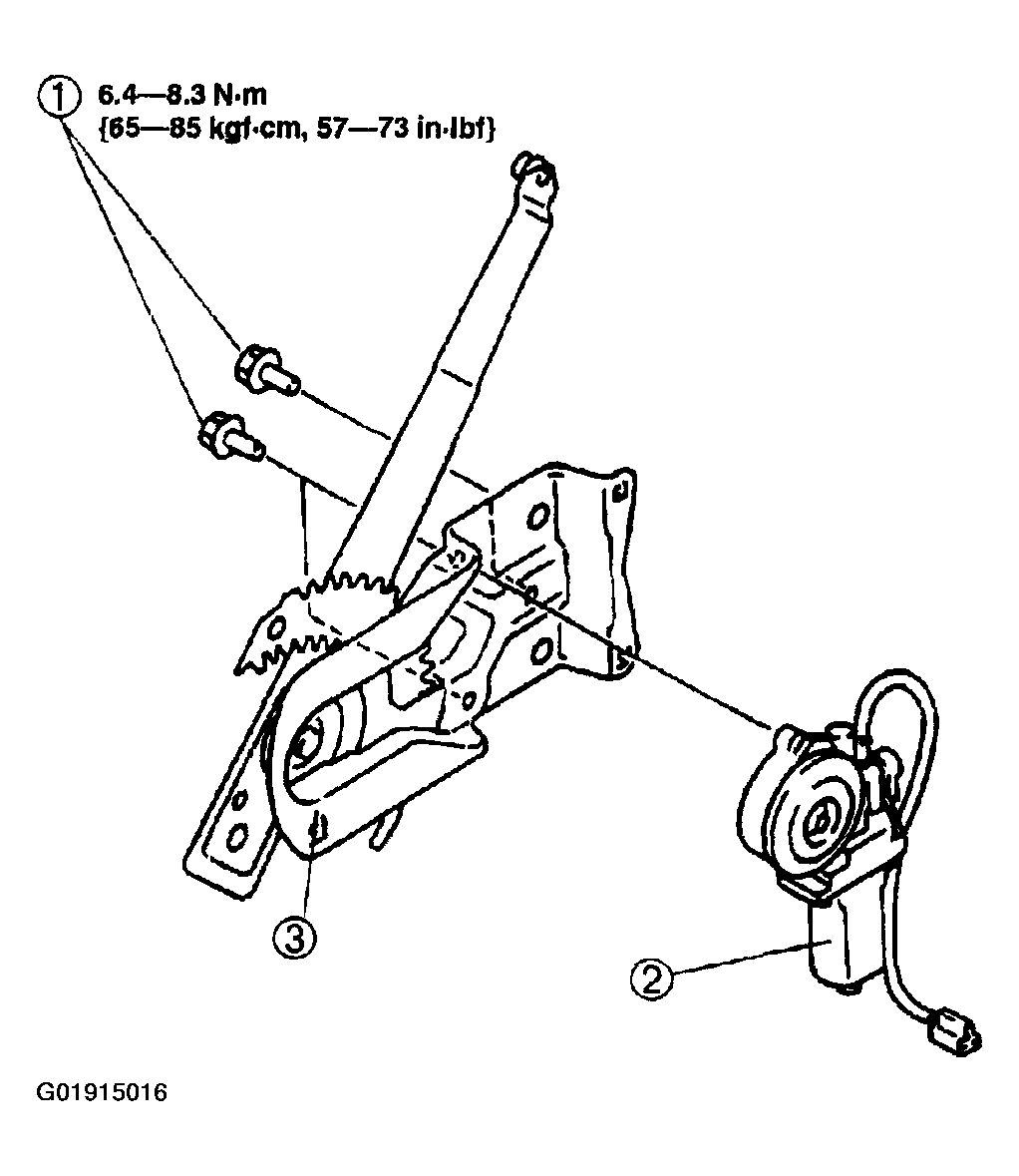

Fig 2: Identifying Components Of Rear Power Window Regulator Disassembly/Assembly (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
