Power Window Motor Disassembly Note

  1. Make marks on the gear and the base before disassembling the power window motor.

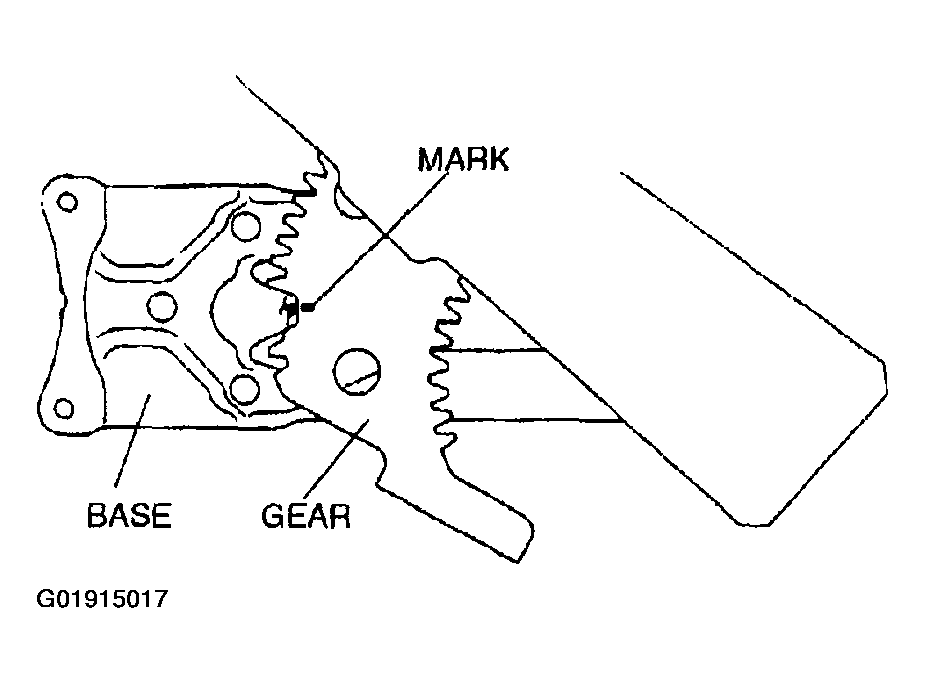

    Fig 1: Identifying Marks On Gear And Base
    G01915017Courtesy of MAZDA MOTORS CORP.
