Rear Window Glass Removal: 5HB: Notes

Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the liftgate trim.
Remove the rear spoiler.
Apply protective tape along the edge of body to protect it from damage.

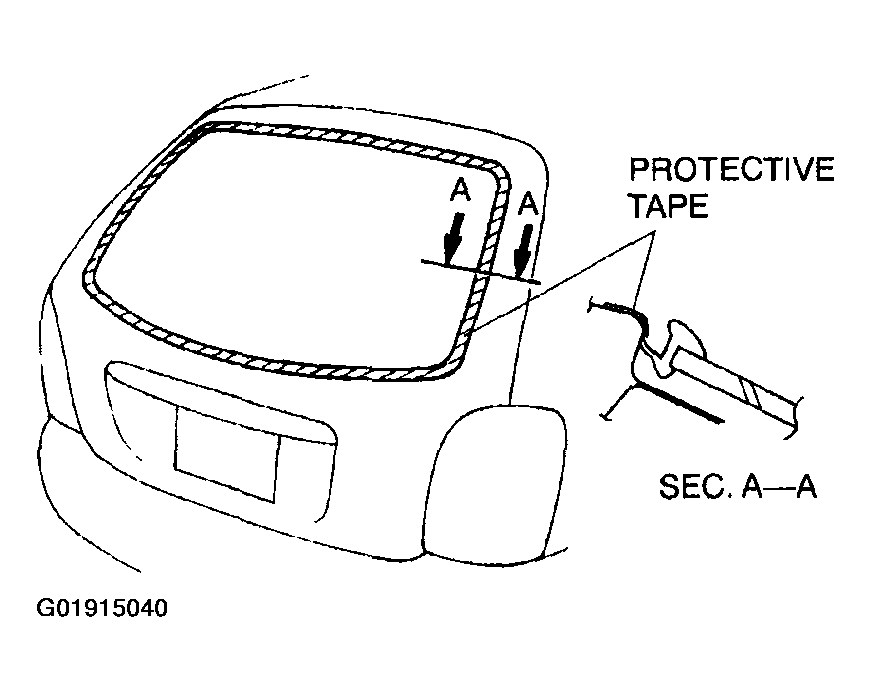

Fig 1: Applying Protective Tape Along Edge Of Body To Protect From Damage
Courtesy of MAZDA MOTORS CORP.
Remove the lip of the rear window molding using a razor.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
NOTE:
- The rear window molding is a replacement part.

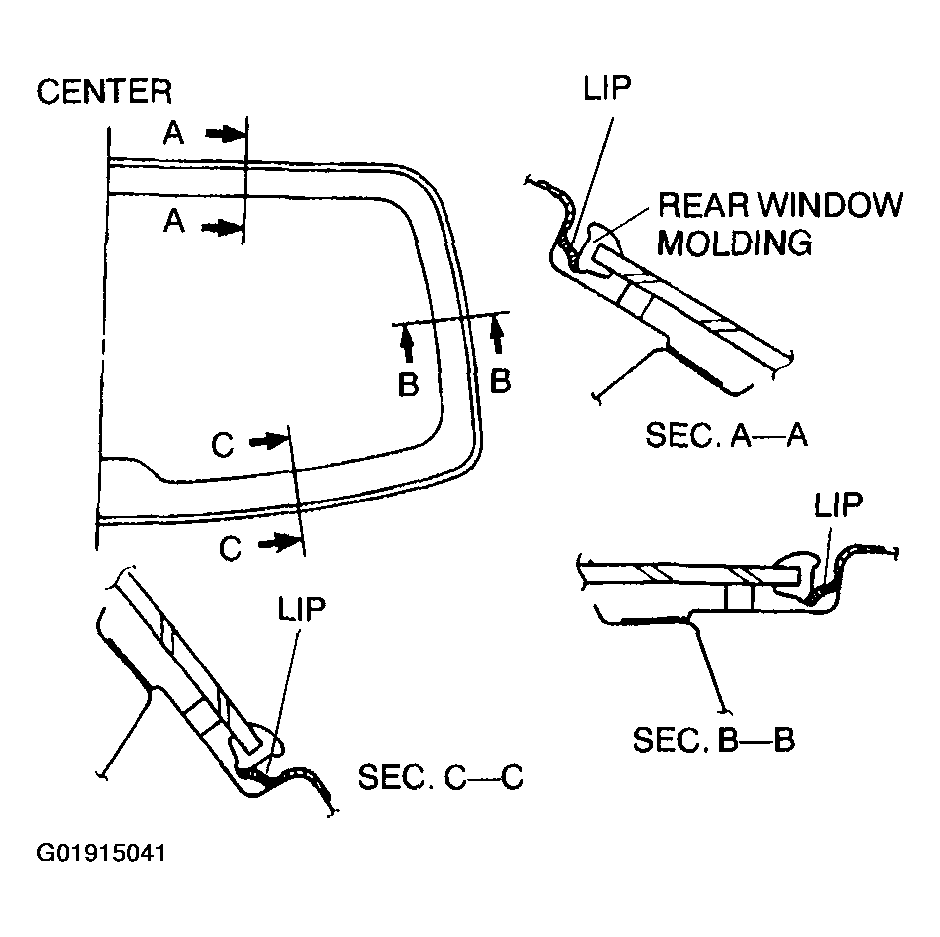

Fig 2: Removing Lip Of Rear Window Molding
Courtesy of MAZDA MOTORS CORP.
